Proxeo Air Scaler

Prophylaxis with style

Regular removal of calculus and plaque leads to a much greater sense of well-being and self-confidence amongst your patients. And to ensure that you feel great when carrying out this precautionary treatment too, there's the Proxeo air scaler.

  • Proxeo Air Scaler

    Fast, gentle, powerful

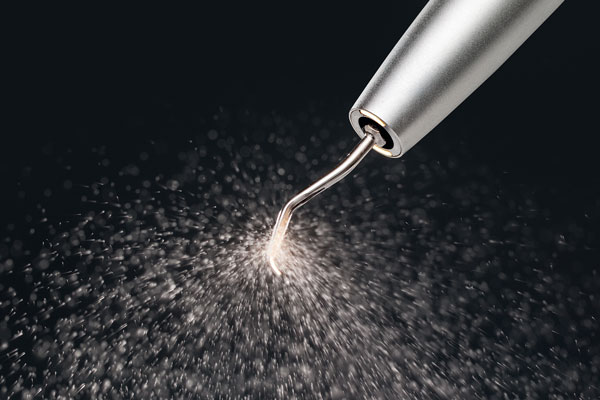

    The air-driven Proxeo scaler with the integrated spray and two large optic outlets is ideal for the removal of plaque and calculus as well as cleaning root surfaces.

    Your advantages at a glance

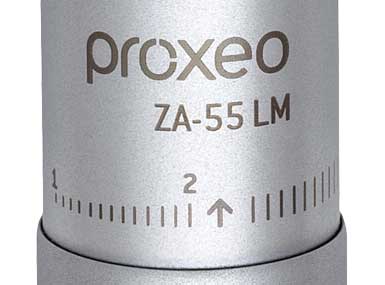

    Stepless power regulator

    Stepless power regulator

    Makes applications effective, simple and gentle:
    power can be adjusted smoothly using the control ring.
    Tips and tip changer

    Tips and tip changer

    Tips for every application
    The combination of the Proxeo Air scaler with the tip range is the ideal basis for perfect results.

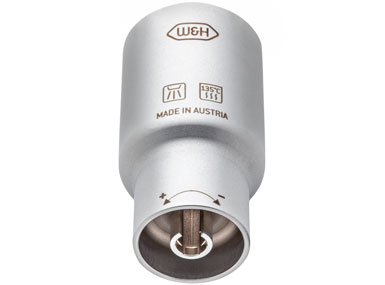

    Tip changer
    Changing tips safely and quickly with the W&H tip changer.

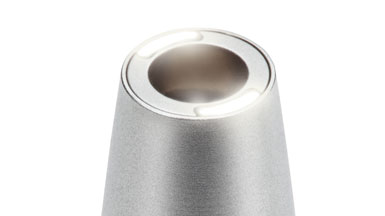

    Large optic outlets

    Large optic outlets

    Two large optic outlets provide perfect illumination of the treatment site.

    Proxeo Air Scaler

    Coupling system: Roto Quick
    Oscillating frequenzy: 6 kHz
    Applicable W&H tips: 1AU, 2AU, 3AU, 1AP, 2APl, 2APr

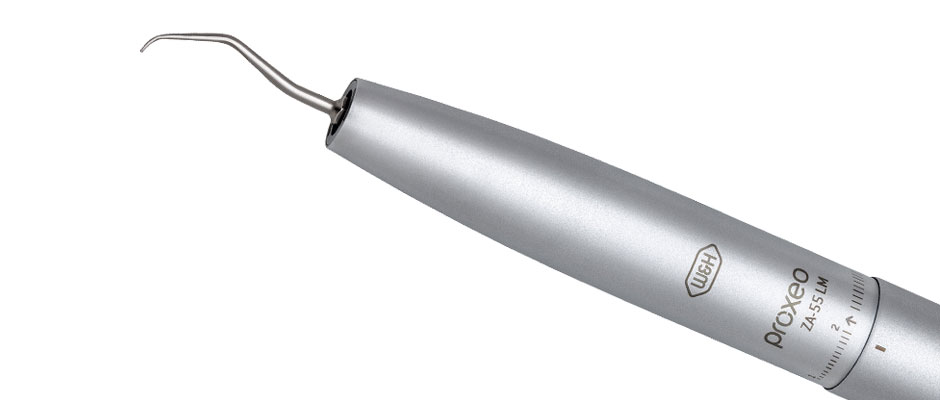

    ZA-55 L
    REF 10035500

    with light, with power regulation,
    with tips 1AU, 2AU, 3AU, 1AP

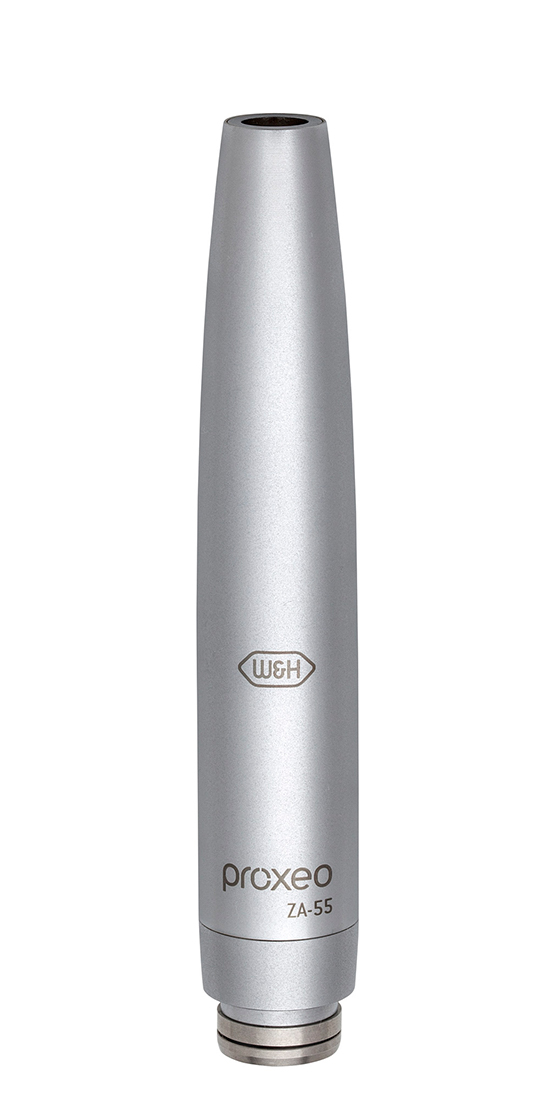

    ZA-55
    REF 10035501

    without light, without power regulation,
    with tips 1AU, 2AU, 3AU, 1AP

    Proxeo Air Scaler

    Coupling system: Multiflex®*
    Oscillating frequenzy: 6 kHz
    Applicable W&H tips: 1AU, 2AU, 3AU, 1AP, 2APl, 2APr

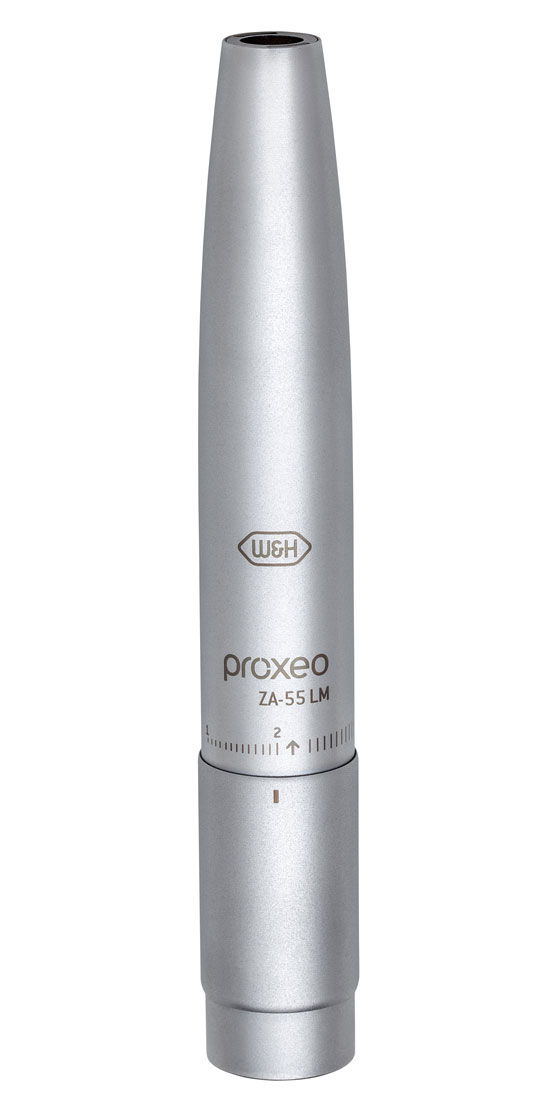

    ZA-55 LM
    REF 10035502

    with light, with power regulation,
    with tips 1AU, 2AU, 3AU, 1AP

    ZA-55 M
    REF 10035503

    without light, without power regulation,
    with tips 1AU, 2AU, 3AU, 1AP


    Proxeo Air Scaler

    Coupling system: Sirona®**
    Oscillating frequenzy: 6 kHz
    Applicable W&H tips: 1AU, 2AU, 3AU, 1AP, 2APl, 2APr

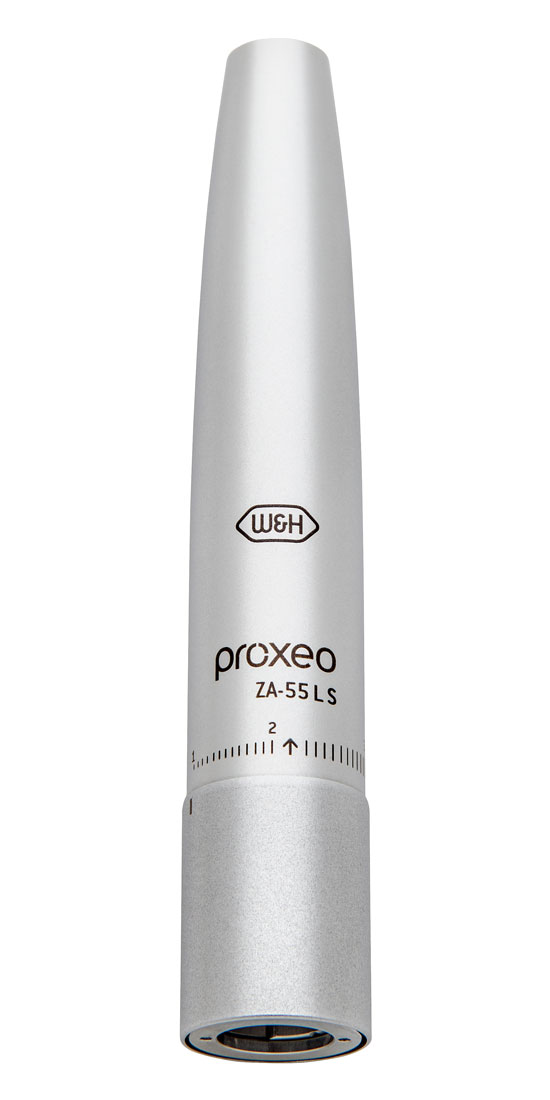

    ZA-55 LS
    REF 30227000

    with light, with power regulation,
    with tips 1AU, 2AU, 3AU, 1AP

    *Multiflex® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
    **Sirona® is a registered trade mark of Sirona Dental Systems GmbH, Bensheim

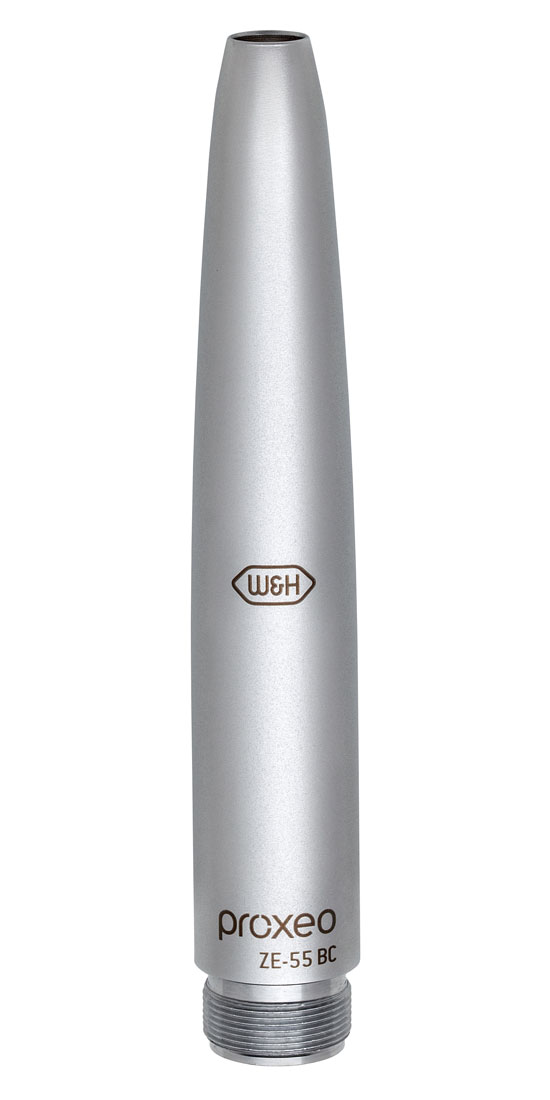

    Proxeo Air Scaler

    Coupling system: Borden 2(3)-hole
    Oscillating frequenzy: 6 kHz
    Applicable W&H tips: 1AU, 2AU, 3AU, 1AP, 2APl, 2APr

    ZE-55 BC
    REF 11015500

    without light, without power regulation,
    with 2 tips 1AU

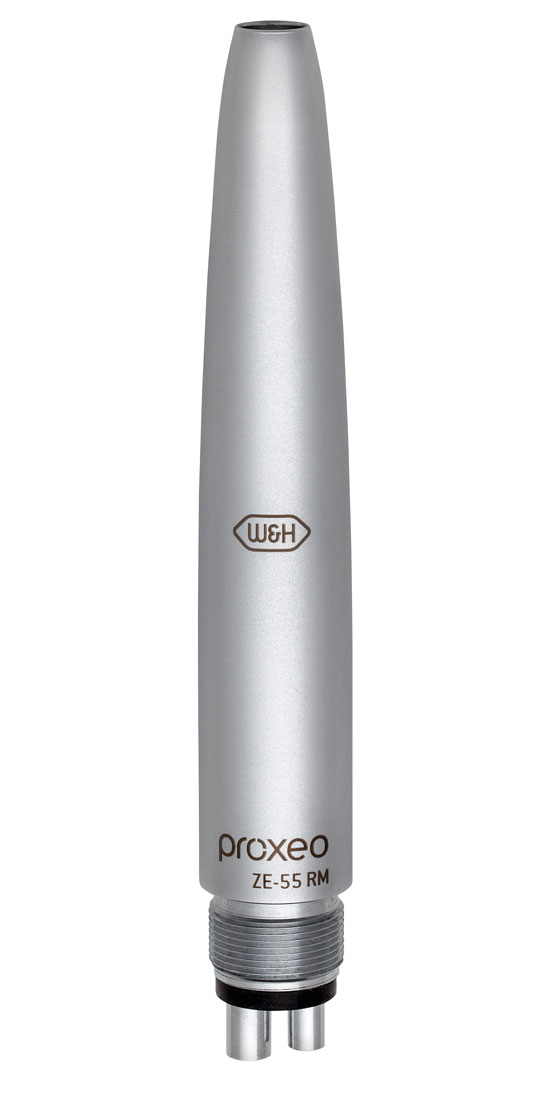

    Proxeo Air Scaler

    Coupling system: Ritter-Midwest 4-hole
    Oscillating frequenzy: 6 kHz
    Applicable W&H tips: 1AU, 2AU, 3AU, 1AP, 2APl, 2APr

    ZE-55 RM
    REF 11015501

    without light, without power regulation,
    with 2 tips 1AU

  • Proxeo Air Scaler

    Type: ZA-55 L ZA-55 LM   ZA-55 LS   ZA-55 ZA-55 M ZE-55 BC ZE-55 RM
    Light: yes no no
    Power regulation: yes no no
    Oscillating frequency: 6 kHz 6 kHz
    Oscillation amplitude: < 200 μm < 200 μm
    Operating pressure: 3 ±0.3 bar 3 (+0.6 / -0.3) bar 3 ±0.3 bar 3 (+0.6 / -0.3) bar 2.2 – 2.5 bar
    Coolant flow volume: 30 – 60 ml/min. mind. 30 ml/min.
    Coupling: RQ-24, RQ-34 RM-34 LED Sirona ® ** RQ-3, RQ-4,
    RQ-14
    Multiflex ® * Fixed connection
    Applicable W&H tips: 1AU, 2AU, 3AU,
    1AP, 2APl, 2APr
    1AU, 2AU, 3AU,
    1AP, 2APl, 2APr
    Tips in the scope of delivery: 1AU, 2AU, 3AU, 1AP 2 x 1AU

    *Multiflex® is a registered trade mark of Kaltenbach & Voigt GmbH, Germany
    **Sirona® is a registered trade mark of Sirona Dental Systems GmbH, Bensheim
