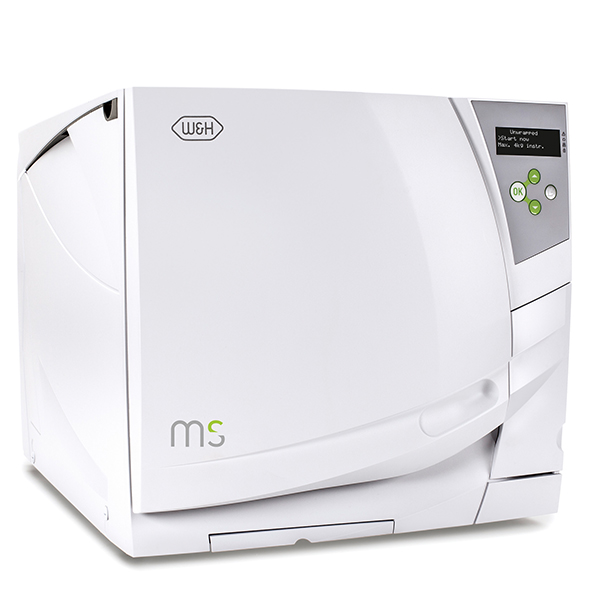

MS Sterilizer

The Ultimate Non vacuum Sterilizer

MS offers economical Non vacuum sterilization, addressing the important considerations of efficiency and long-term operational costs. It is a modern, quality built machine for today's environment, where economy, performance and compliance are the overriding requirements.

Sterilization, Hygiene & Maintenance

Sterilization, Hygiene & Maintenance

System Overview

  • MS Autoclave

    Economical and reliable

    The MS autoclave offers type non vacuum sterilization of unwrapped and solid loads.

    Its simple keypad ensure the sterilization options can be navigated easily, and it can be upgraded to meet the demands of an evolving dental practice through the integration of add-ons, e.g. for transferring data onto USB stick or via a label printer.

    The main features at a glance

    • Spacious 22 litre chamber
    • Low maximum power consumption
    • Simple user interface
    • Extended drying with Dry-pluS
    • Long service intervals
    • Flexible to meet needs of an evolving practice

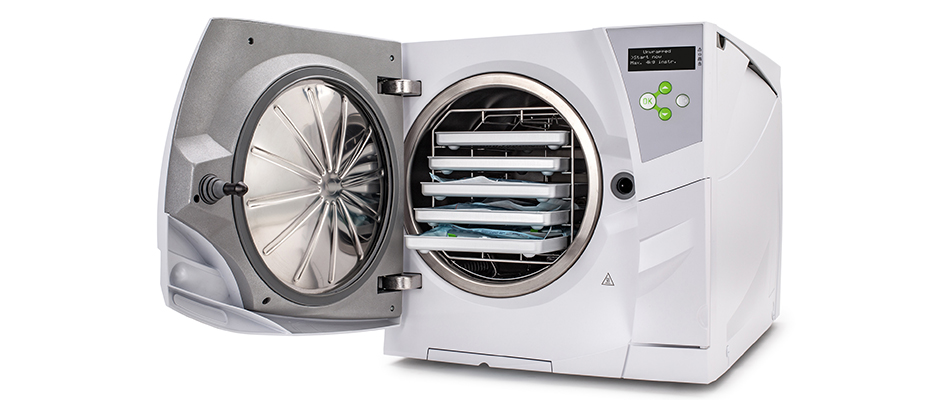

    Large capacity chamber accommodates up to 5 trays

    MS Sterilizer
    Large capacity for efficiency and convenience

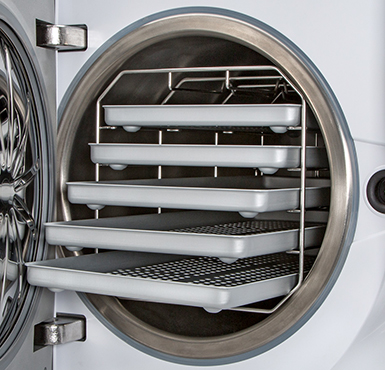

    Large capacity chamber accommodates 5 trays. The MS autoclave comes with a reversible rack which accepts larger cassettes or clip-trays. It is designed to process loads on a continuous basis, without cool-down periods between cycles.
    Reduced energy costs.

    MS Autoclave
    Save money on energy

    The MS sterilizer is designed to be efficient. It has a larger chamber, consumes less power, and has shorter cycle times than some other sterilizers. Its low maximum power consumption of just 1.75kWh, and exclusive N and Dry-pluS cycles mean that a small load cycle is practical and cost-effective.
    Simple to use

    MS Autoclave
    Designed with the user in mind

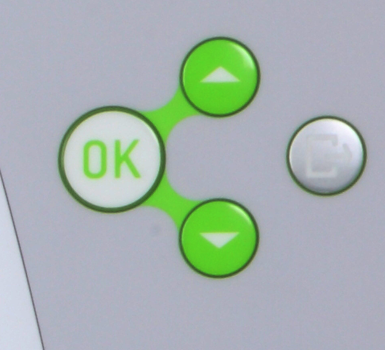

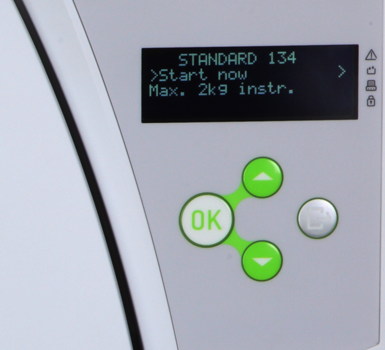

    The clear layout of the screen and uncomplicated arrangement of buttons ensure that the MS sterilizer is easy to use.
    Special drying feature ensures processed items are easy to handle

    MS Autoclave
    Instrument drying for ease of handling

    The standard cycle includes a short drying phase, ensuring processed items are easy to handle on removal from the chamber.

    The Extended Dry-pluS cycle option includes an extended drying phase created from a powerful condenser, ensuring processed items are sensibly dry when removed from the chamber. This feature also facilitates the possibility of processing a pouched 1kg solid load.
    Premium Care service contracts are available

    MS Autoclave
    Premium Care service for a quality sterilizer!

    The optional Premium Care and Premium Careplus service plans from W&H are a cost-effective way to maintain your sterilizer.

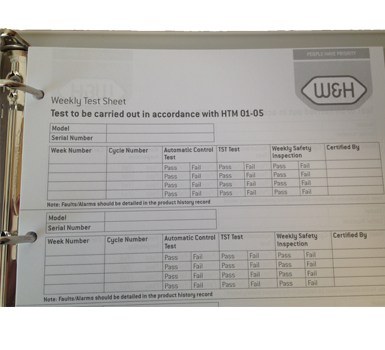

    A logbook is available as standard with Premium Careplus or as an option with Premium Care, which includes sheets for the recording of regular test results in accordance with current guidelines.


    NB these service plans are only available for customers based in the United Kingdom.
    Long service intervals

    MS Autoclave
    Built for reliable service

    The modern design of the MS sterilizer ensures that downtime due to routine servicing and maintenance is kept to a minimum. The major manufacturer's service is at 4,000 cycle intervals. The robust door seal only needs replacing at around 800 cycle intervals.

    MS

    supplied with reversible rack,
    3 aluminium trays, funnel,
    drain tube and tray holder

    MS Sterilizer
    REF 19952110

    Non vacuum sterilizer. Chamber size 22 litre

  • Power supply:

    200 / 240 V AC
    50 - 60 Hz / 8.75 A

    Power consumption:

    1700 W

    Dimensions overall:

    Width: 450 mm - Height: 435 mm - Depth: 599 mm

    Weight:

    40.5 kg (without load; add up to 10 kg with water and chamber fully loaded)

    Mean sound levels (LWA):

    63 dB

    Mains / Used water tanks:

    4 / 3.5 litre

    Tank refilling:

    4 to 7 cycles (dependent on cycle selected)

    Usable space in chamber:

    22 litre - W: 195 mm x H: 195 mm x D: 390 mm

    Connection types:

    serial

    MS autoclaves were designed, certified and validated with the most stringent Directives and Standards:

    93/42/CEE

    Medical Device Directive (MDD)

    2014/68/EU

    Pressure equipment Directive (PED)

    2002/96/CEE

    Waste Electrical and Electronic Equipment (WEEE)

    EN 13060

    Small steam sterilizer

    IEC 61010-1

    Safety requirements for electrical equipment for measurement, control and laboratory use,
    general requirements

    IEC 61010-2-040

    Safety requirements for electrical equipment for measurement, control and laboratory use;
    particular requirements for autoclaves using steam for the treatment of medical materials and for laboratory processes

    EN 61326

    Electrical equipment for measurement, control and laboratory use: EMC requirements
