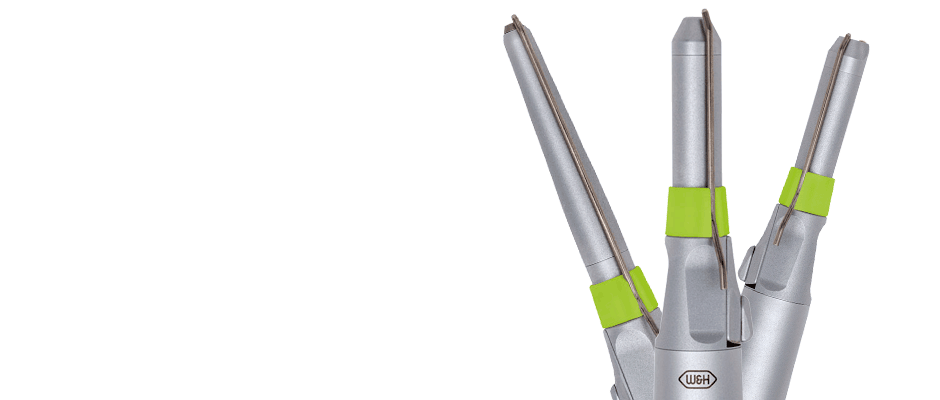

Surgical Handpieces

Durable, ergonomic and robust

W&H surgical straight handpieces have been specially designed for oral and maxillofacial surgery and implantology. The high-quality stainless steel with special coating makes them particularly robust.

Oral Surgery & Implantology

Oral Surgery & Implantology

System Overview

  • Surgical Handpieces with mini LED+

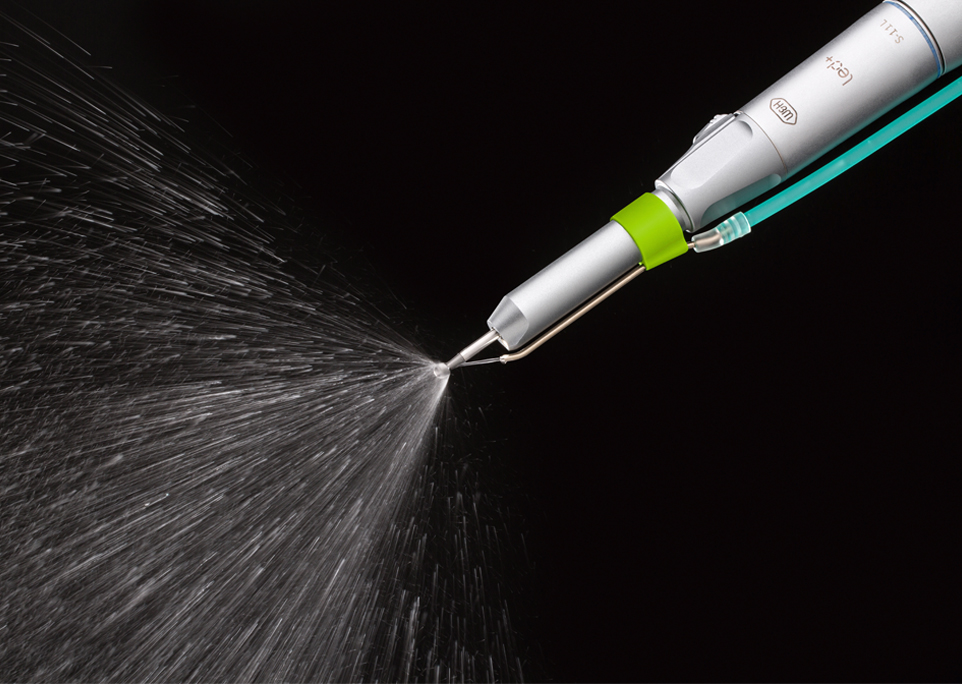

    Surgical Handpiece S-11 L G

    Working in daylight quality light

    Excellent lighting conditions facilitate accurate diagnoses and perfect treatment results.

    The surgical handpieces with mini LED+ produce LED light independently. An integral generator supplies the LED in the handpieces with power.

    Your advantages at a glance

    • Natural reproduction of red tones
    • Independent power supply with integrated generator
    • Longer life compared with conventional halogen bulbs
    • Fatigue-free working thanks to optimal ergonomics
    • Durable and robust due to high-quality stainless steel and scratch-resistant coating
    • Can be dismantled for thorough cleaning
    • Thermo washer disinfectable and sterilizable

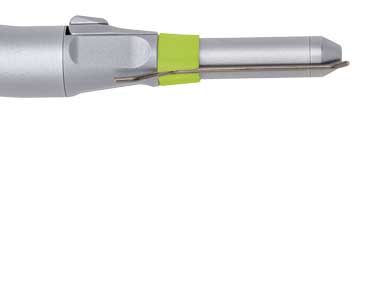

    Fatigue-free working
    thanks to optimal ergonomics

    Fatigue-free operation

    The new ergonomic design is perfectly coordinated to all the application possibilities and prevents fatigue.

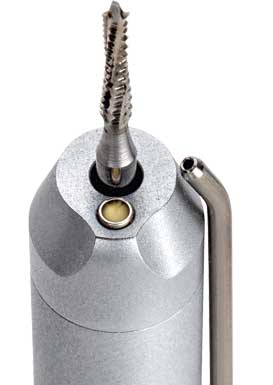

    Perfect light
    due to mini LED+

    Optimal illumination

    Thanks to its being half the size of a normal LED, the mini LED+ can be integrated very close to the tip and offers optimal illumination.

    With their neutral white light our LED provide a superior light source. This allows you to have daylight quality light in the treatment area whether you have an optic or non-optic drive system.

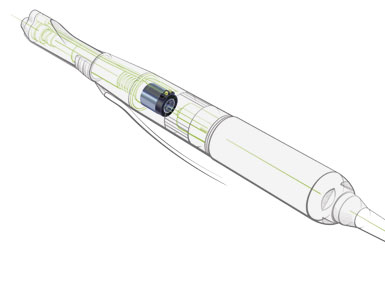

    Independent power supply

    Independent power supply

    As soon as you activate your handpiece, the generator turns. It autonomously generates the electricity needed for the mini LED+ regardless of the type of drive system you work with.
    Scratch-resistant surface

    Scratch-resistant surface

    The unique coating protects the handpiece from scratches.
    This facilitates cleaning and keeps it looking as new, thus preserving its value.
    Perfect cleaning

    Perfect cleaning

    To satisfy stringent hygiene requirements, the handpieces can be dismantled.
    High colour rendering index (CRI)

    Daylight quality

    W&H handpieces with mini LED+ possess the highest luminosity values, and thus also the greatest light output.

    With a colour rendering index greater than 90, W&H handpieces with mini LED+ show natural-looking red tones.

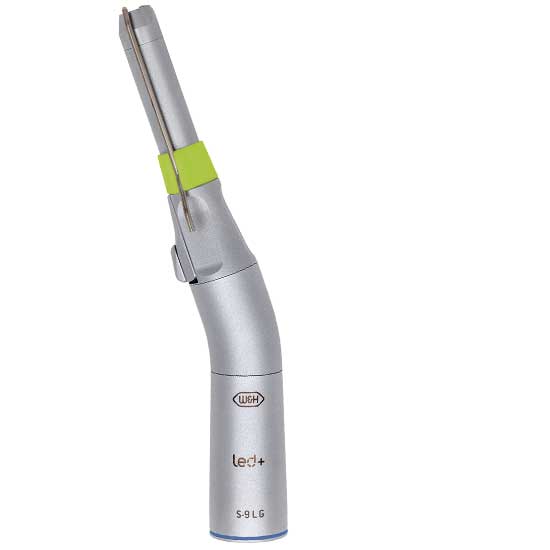

    S-9 L G

    Surgical Handpiece
    with lever chuck, mini LED+ and generator
    Coupling system: ISO 3964 (DIN 13940)

    S-9 L G
    REF 30054000

    1:1, angled, can be dismantled,
    for surgical burs and cutters Ø 2.35 mm (also Stryker system), L = max. 45 mm, external spray, maximum drive speed 40,000 min-1

    Indications

    e.g.: apical resection, osteotomy,
    apical trepanning, bone modelling

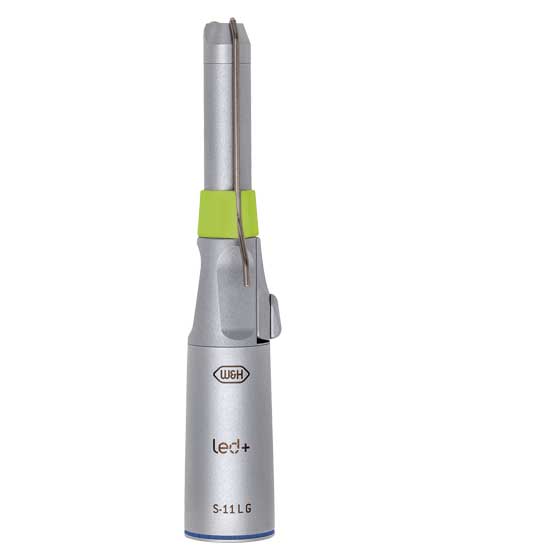

    S-11 L G

    Surgical Handpiece
    with lever chuck, mini LED+ and generator
    Coupling system: ISO 3964 (DIN 13940)

    S-11 L G
    REF 30057000

    1:1, straight, can be dismantled,
    for surgical burs and cutters Ø 2.35 mm (also Stryker system), L = max. 45 mm, external spray, maximum drive speed 40,000 min-1

    Indications

    e.g.: apical resection, osteotomy,
    apical trepanning, bone modelling





    The new surgical handpiece with mini LED+ and W&H connection

    Surgical handpiece for Implantmed Plus

    The first choice for apical resection, osteotomy, sequestrotomy, bone modelling and bone smoothing and also for extraction of wisdom teeth

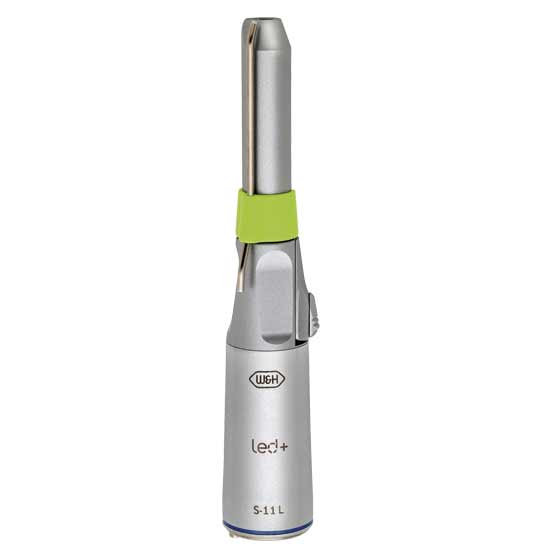

    S-11 L

    Surgical Handpiece
    with lever chuck, mini LED+ and W&H connection
    Coupling system: W&H EM-19 LC / EM-19

    S-11 L
    REF 30058000

    1:1, straight, can be dismantled,
    can only be used with the W&H electric motor EM-19,

    for surgical burs and cutters Ø 2.35 mm
    (also Stryker system), L = max. 45 mm, external spray, maximum drive speed 50.000 min-1





    Surgical Handpieces without light

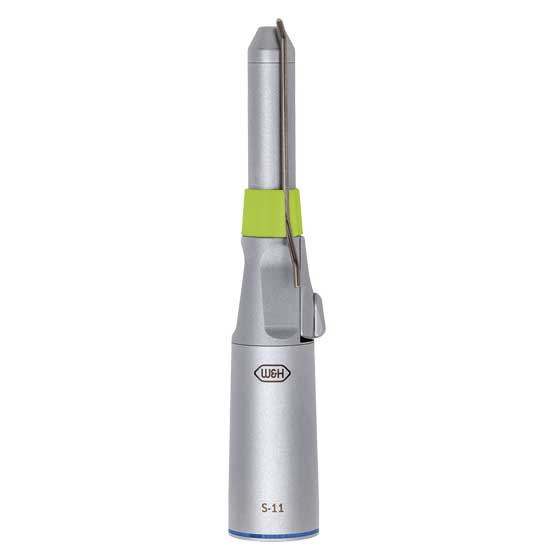

    Surgical Handpiece S-11

    Providing the best treatment

    Surgical interventions represent a great challenge. To meet this challenge a number of surgical handpieces are required.

    Therefore W&H has developed a series of straight and angled handpieces for oral and maxillofacial surgery and implantology.

    The main features at a glance

    • Fatigue-free working thanks to optimal ergonomics
    • Durable and robust due to high-quality stainless steel and scratch-resistant coating
    • Wide range for all surgical applications
    • Can be dismantled for thorough cleaning
    • Thermo washer disinfectable and sterilizable
    Fatigue-free working
    thanks to optimal ergonomics

    Fatigue-free operation

    The new ergonomic design is perfectly coordinated to all the application possibilities and prevents fatigue.
    Scratch-resistant surface

    Scratch-resistant surface

    The unique coating protects the handpiece from scratches.

    This facilitates cleaning and keeps it looking as new, thus preserving its value.

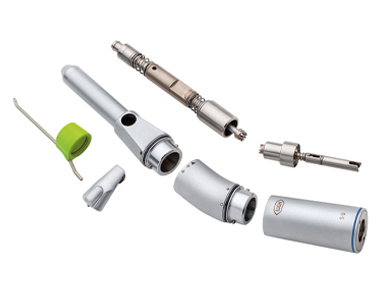

    Can be dismantled
    without tools

    Easy cleaning – Can be dismantled without tools

    To enable thorough cleaning to be carried out, the handpieces can be easily and quickly dismantled and re-assembled – without the use of tools.

    Cleaning parts individually provides the most effective result.

    S-11

    Surgical Handpiece
    with lever chuck
    Coupling system: ISO 3964 (DIN 13940)

    S-11
    REF 30056000

    1:1, straight, can be dismantled,
    for surgical burs and cutters Ø 2.35 mm
    (also Stryker system), L = 45 mm,
    external spray, maximum drive speed 50,000 min-1

    Indications

    e.g.: apical resection, osteotomy,
    apical trepanning, bone modelling

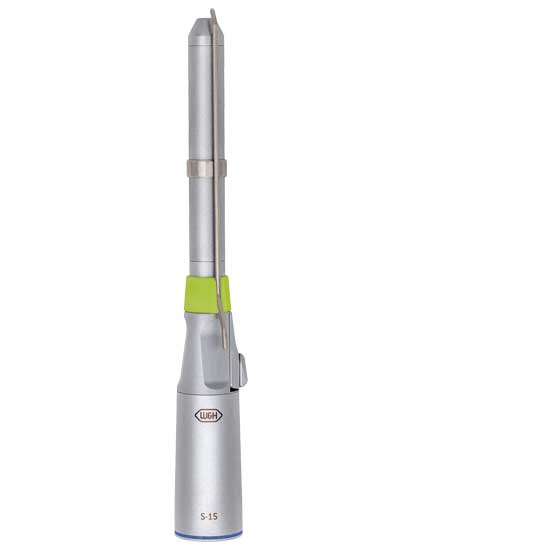

    S-15

    Surgical Handpiece
    with lever chuck
    Coupling system: ISO 3964 (DIN 13940)

    S-15
    REF 30060000

    1:1, straight, can be dismantled,
    for surgical burs and cutters Ø 2.35 mm
    (also Stryker system), L = 45 mm,
    external spray, maximum drive speed 30,000 min-1

    Indications

    e.g.: osteotomy in difficult to access areas

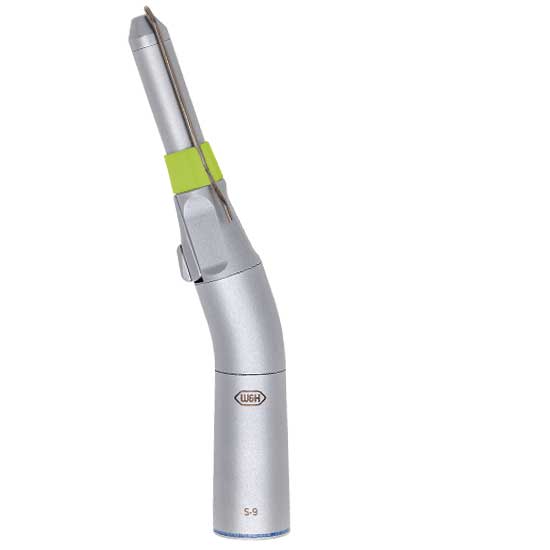

    S-9

    Surgical Handpiece
    with lever chuck
    Coupling system: ISO 3964 (DIN 13940)

    S-9
    REF 30053000

    1:1, angled, can be dismantled,
    for surgical burs and cutters Ø 2.35 mm
    (also Stryker system), L = 45 mm,
    external spray, maximum drive speed 50,000 min-1

    Indications

    e.g.: apical resection, osteotomy,
    apical trepanning, bone modelling

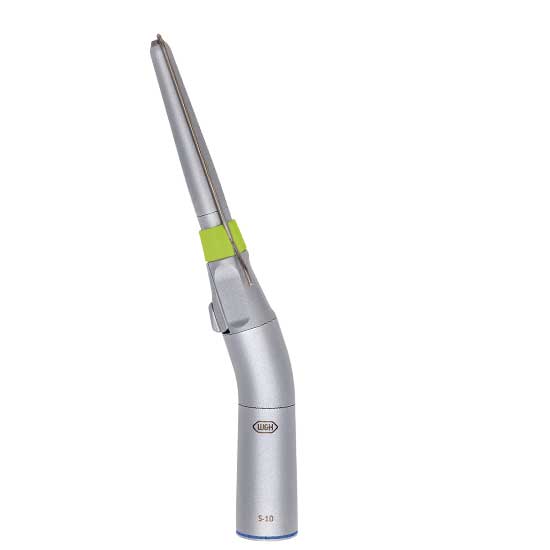

    S-10

    Surgical Handpiece
    with lever chuck
    Coupling system: ISO 3964 (DIN 13940)

    S-10
    REF 30059000

    1:1, angled, can be dismantled,
    for surgical burs and cutters Ø 2.35 mm,
    L = 70 mm, external spray,
    maximum drive speed 50,000 min-1

    Indications

    e.g.: osteotomy, fenestration,
    osteosynthesis in distal areas

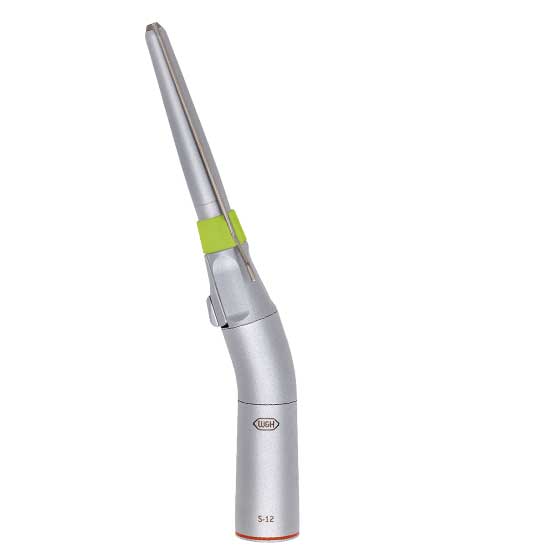

    S-12

    Surgical Handpiece
    with lever chuck
    Coupling system: ISO 3964 (DIN 13940)

    S-12
    REF 30061000

    1:2, angled, can be dismantled,
    for surgical burs and cutters Ø 2.35 mm,
    L = 70 mm, external spray,
    maximum drive speed 40,000 min-1

    Indications

    e.g.: osteotomy, fenestration,
    osteosynthesis in distal areas



  • Surgical straight handpiece with mini LED+ and W&H connection

    Type: S-11 L
    Transmission ratio: 1:1
    Coupling system: W&H EM-19 LC / EM-19
    Lighting system: mini LED+
    Spray: external
    Chucking system: lever chuck
    Rotary instruments: for surgical burs and cutters
    Ø 2.35 mm (also Stryker system)
    Permitted bur length: 45 mm
    Maximum drive speed: 50,000 min -1
    Can be dismantled: yes


    Surgical handpieces with mini LED+ and generator

    Type: S-9 L G S-11 L G
    Transmission ratio: 1:1
    Coupling system: ISO 3964 (DIN 13940)
    Lighting system: mini LED+
    Power supply: via independent generator
    Light quality: daylight
    Spray: external
    Chucking system: lever chuck
    Rotary instruments: for surgical burs and cutters
    Ø 2.35 mm (also Stryker system)
    Permitted bur length: 45 mm
    Maximum drive speed: 40,000 min -1
    Can be dismantled: yes


    Surgical handpieces without light

    Type: S-9 S-11 S-15 S-10 S-12
    Transmission ratio: 1:1 1:1 1:1 1:1 1:2
    Coupling system: ISO 3964 (DIN 13940)
    Spray: external
    Chucking system: lever chuck
    Rotary instruments: for surgical burs and cutters
    Ø 2.35 mm (also Stryker system)
    for surgical burs and cutters
    Ø 2.35 mm
    Permitted bur length: 45 mm 70 mm
    Maximum drive speed: 50,000 min -1 50,000 min -1 30,000 min -1 50,000 min -1 40,000 min -1
    Can be dismantled: yes yes
