Assistina

Perfect cleaning inside and outside

Now you can concentrate on what is really important: your patients. The fully automatic Assistina 3x3 takes over the time-consuming process of preparing e.g. straight and contra-angle handpieces and turbines for sterilization.

Sterilization, Hygiene & Maintenance

Sterilization, Hygiene & Maintenance

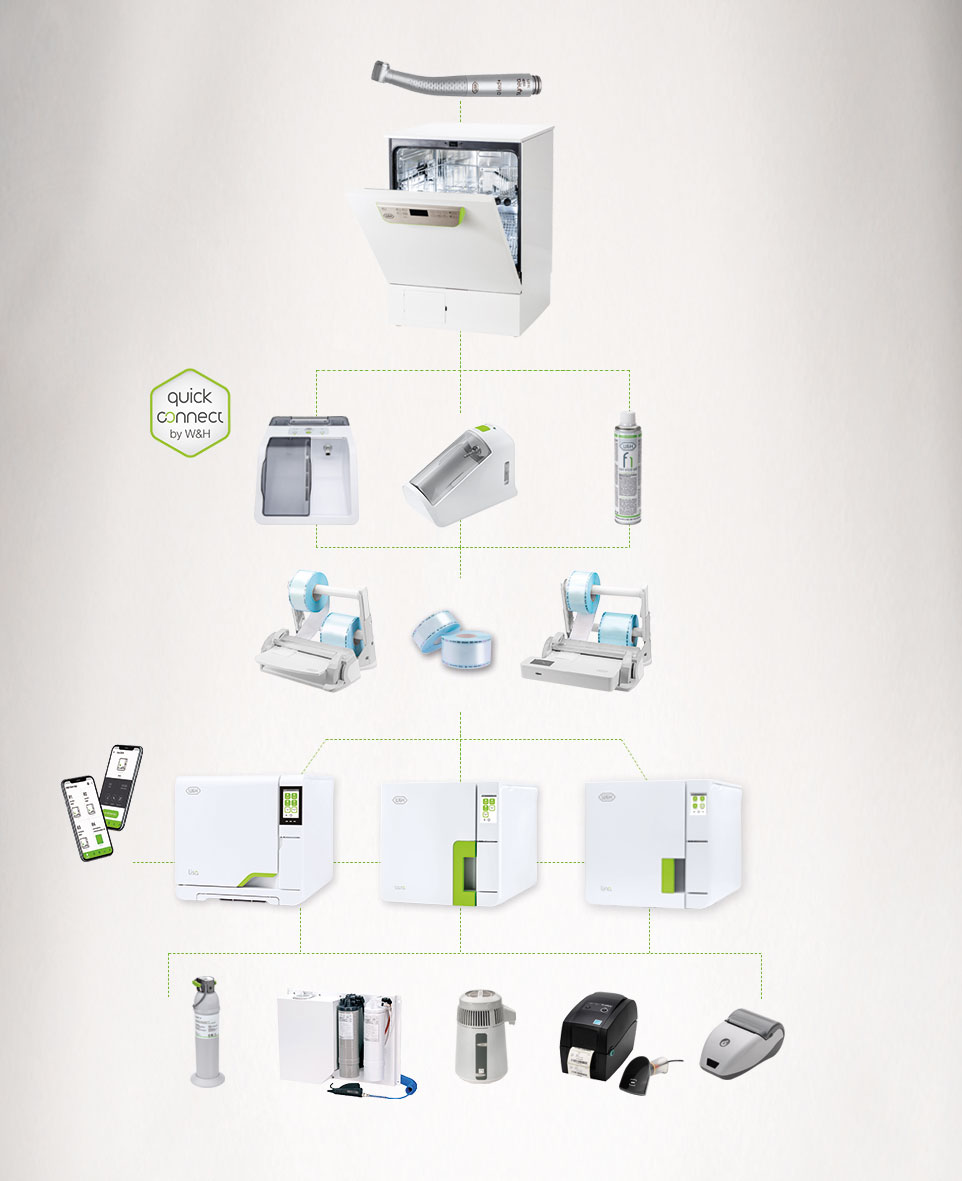

System Overview

Assistina 3x3



  • Internal and external cleaning

    Internal cleaning with W&H Activefluid
    The thorough cleaning of all transmission parts and spray channels ensures that the instrument operates correctly throughout its working life.

    External cleaning with W&H Activefluid
    The removal of organic deposits before sterilization increases the safety of your patients and your practice team.




  • Optimum price-performance ratio

    Maximum cleaning efficiency with low purchase price and extremely economical in use.

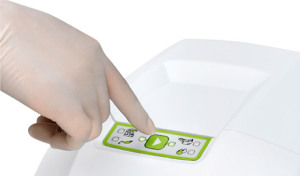

  • Easy to use


    Easy to use

    The operation of the Assistina is intuitive, absolutely no training is required.
    The instrument preparation starts at the press of a button.


  • Validated process

    The validation of the process is confirmed by expert opinion.

    You can find the validation in the download area on the right side.


  • Automatic documentation



    Automatic documentation

    Solutions for the automatic documentation of cycle data for the Assistina 3x3 are currently offered by companies DIOS (Dios MP, etc.) and Comotec (segosoft). Further providers will follow.

  • 1 Internal and external cleaning



    Internal and external cleaning

    Internal cleaning with W&H Activefluid
    The thorough cleaning of all transmission parts and spray channels ensures that the instrument operates correctly throughout its working life.

    External cleaning with W&H Activefluid
    The removal of organic deposits before sterilization increases the safety of your patients and your practice team.

  • 2 Optimum price-performance ratio




    Optimum price-performance ratio

    Maximum cleaning efficiency with low purchase price and extremely economical in use.

  • 3 Easy to use


    Easy to use


    Easy to use

    The operation of the Assistina is intuitive, absolutely no training is required.
    The instrument preparation starts at the press of a button.

  • 4 Validated process


    Validated process

    The validation of the process is confirmed by expert opinion.

    You can find the validation in the download area on the right side.

  • 5 Automatic documentation


    Automatic documentation



    Automatic documentation

    Solutions for the automatic documentation of cycle data for the Assistina 3x3 are currently offered by companies DIOS (Dios MP, etc.) and Comotec (segosoft). Further providers will follow.

  • Assistina 3x3

    Validated process in three steps

    The instrument preparation with Assistina 3x3 is carried out in three steps. The complete process is validated and confirmed by expert opinion.

    Step 1:
    Automatic internal cleaning of the spray channels and transmission parts with W&H Activefluid. Blowing through spray channels and transmission parts with compressed air.

    Step 2:
    Automatic external cleaning of the instrument with W&H Activefluid.

    Step 3:
    Lubrication of the transmission parts with W&H Service Oil F1.

    Your advantages at a glance

    • Automatic internal cleaning
    • Automatic external cleaning
    • Perfect instrument lubrication
    • Short cycle time
    • Easy to use
    • Optimum price-performance ratio

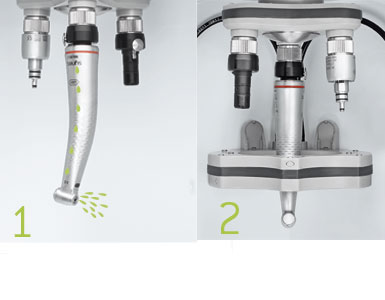

    Internal and external cleaning

    Internal and external cleaning

    //a.storyblok.com/f/45617/154fb6a600/assistina-internal-and-external-cleaning_overlay.jpg
    Internal cleaning with W&H Activefluid (1)
    The thorough cleaning of all transmission parts and spray channels ensures that the instrument operates correctly throughout its working life.

    External cleaning with W&H Activefluid (2)
    The removal of organic deposits before sterilization increases
    the safety of your patients and your practice team.

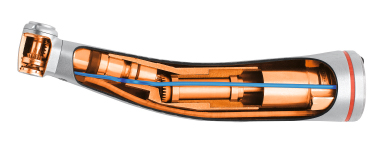

    Perfect lubrication

    Perfect lubrication

    //a.storyblok.com/f/45617/fc2f75970f/assistina-perfect-lubrication_overlay.jpg
    The precise automatic lubrication of all transmission parts with W&H Service Oil F1 extends the working life of your instruments.
    Record time

    Record time

    //a.storyblok.com/f/45617/ac2249feec/assistina-record-time_overlay.jpg
    The short cycle time of about six minutes reduces the total conventional preparation time for your instruments.

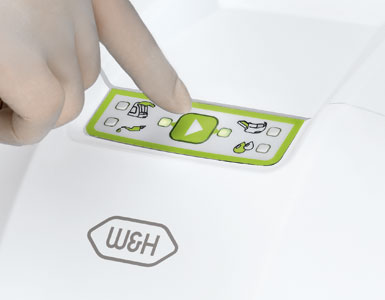

    Easy to use

    Easy to use

    //a.storyblok.com/f/45617/39b0d1a3aa/assistina-easy-to-use_overlay.jpg
    The operation of the Assistina is intuitive, absolutely no training is required. The instrument preparation starts at the press of a button.
    Validated process

    Validated process

    //a.storyblok.com/f/45617/e1436b037c/assistina-validated-process-en_overlay.jpg
    The validation of the process is confirmed by expert opinion. You can find the validation in the download area on the right side.
    Optimum
    price-performance ratio

    Optimum price-performance ratio

    //a.storyblok.com/f/45617/9ef9da1d30/assistina-scales_overlay.jpg
    Maximum cleaning efficiency with low purchase price and extremely economical in use.

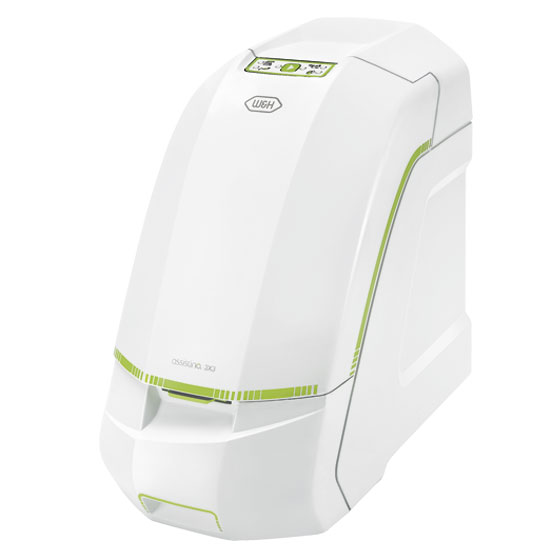

    Assistina 3x3

    MB-300
    REF 19923000

    consists of:
    > Adaptor RM / ISO
    > Air connection hose (2 m)
    > W&H Service Oil F1, MD-200
    > W&H Activefluid, MC-1100
    > External cleaning ring


    Download Area

    取扱説明書

    Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

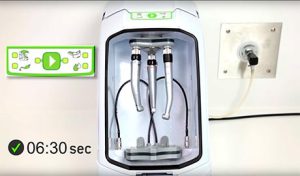

    Videos & Tutorials

    マルチメディアコンテンツ(ビデオ、マップなど)のシームレスでインタラクティブなオンラインエクスペリエンスのために、マーケティング目的で必要なCookie(YouTube、MovingImage-これらのCookieの詳細情報はインプリント/データ保護にあります)の保存を受け入れてください。

    受け入れる
  • Assistina 3x2

    Validated process in two steps

    The instrument preparation with Assistina 3x2 is carried out in two steps. The complete process is validated and confirmed by expert opinion.

    Step 1:
    Automatic internal cleaning of the spray channels and transmission parts with W&H Activefluid. Blowing through spray channels and transmission parts with compressed air.

    Step 2:
    Lubrication of the transmission parts with W&H Service Oil F1.

    Your advantages at a glance

    • Automatic internal cleaning
    • Perfect instrument lubrication
    • Short cycle time
    • Easy to use
    • Optimum price-performance ratio
    Perfect internal cleaning

    Perfect internal cleaning

    //a.storyblok.com/f/45617/5b01834c11/assistina-internal-cleaning_overlay.jpg
    Internal cleaning with W&H Activefluid
    The thorough cleaning of all transmission parts and spray channels ensures that the instrument operates correctly throughout its working life.
    Perfect lubrication

    Perfect lubrication

    //a.storyblok.com/f/45617/fc2f75970f/assistina-perfect-lubrication_overlay.jpg
    The precise automatic lubrication of all transmission parts with W&H Service Oil F1 extends the working life of your instruments.
    Record time

    Record time

    //a.storyblok.com/f/45617/ac2249feec/assistina-record-time_overlay.jpg
    The short cycle time of about six minutes reduces the total conventional preparation time for your instruments.
    Easy to use

    Easy to use

    //a.storyblok.com/f/45617/39b0d1a3aa/assistina-easy-to-use_overlay.jpg
    The operation of the Assistina is intuitive, absolutely no training is required. The instrument preparation starts at the press of a button.
    Validated process

    Validated process

    //a.storyblok.com/f/45617/e1436b037c/assistina-validated-process-en_overlay.jpg
    The validation of the process is confirmed by expert opinion. You can find the validation in the download area on the right side.
    Optimum
    price-performance ratio

    Optimum price-performance ratio

    //a.storyblok.com/f/45617/9ef9da1d30/assistina-scales_overlay.jpg
    Maximum cleaning efficiency with low purchase price and extremely economical in use.


    Assistina 3x2

    MB-200
    REF 19922000

    consists of:
    > Adaptor RM / ISO
    > Air connection hose (2 m)
    > W&H Service Oil F1, MD-200
    > W&H Activefluid, MC-1100


    Download Area

    Videos & Tutorials

    マルチメディアコンテンツ(ビデオ、マップなど)のシームレスでインタラクティブなオンラインエクスペリエンスのために、マーケティング目的で必要なCookie(YouTube、MovingImage-これらのCookieの詳細情報はインプリント/データ保護にあります)の保存を受け入れてください。

    受け入れる
  • Assistina 3x3 / Assistina 3x2

    Assistina 3x3 3x2
    Supply voltage: 100 - 240 V AC
    Permitted voltage fluctuation: ±10 %
    Nominal current: 0.1 - 0.3 A
    Frequency: 50 - 60 Hz
    Max. power consumption: 40 VA
    Air consumption: approx. 100 Nl/min. approx. 60 Nl/min.
    Operating pressure: 5 - 10 bar
    (controlled via an integrated automatic pressure controller)
    Max. volume: 70 dB 65 dB
    Height / Width / Depth: 358 mm x 207 mm x 397 mm
    Weight: 7.5 kg 6.5 kg
    Capacity: 1000 ml W&H Activefluid, MC-1100
    200 ml W&H Service Oil F1, MD-200
    Designed for: Straight and contra-angle handpieces, turbines,
    air motors and air-driven scalers
