The new Lisa sterilizers

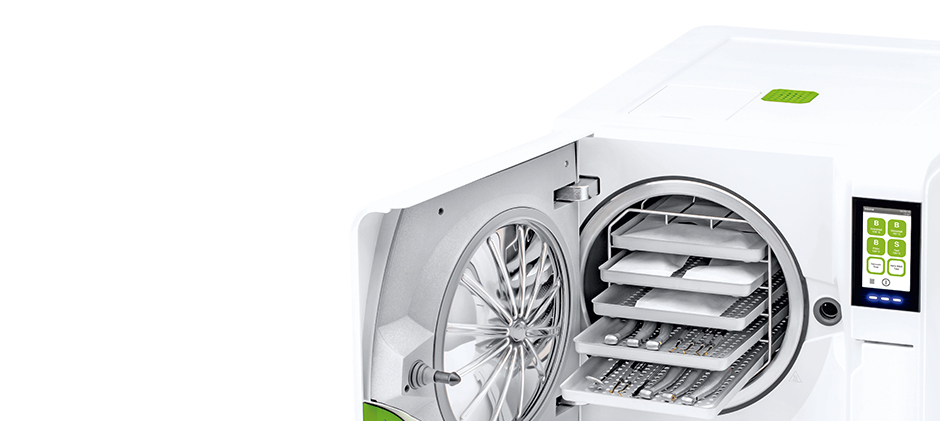

From the outside
Smooth surfaces, a fresh, ergonomic design – and an incredibly crystal clear colour display. The menu structure and the artificial intelligence behind it turns high end B type sterilizing into one of the most simple, comfortable and safest systems in the world. For full infection control within your daily work.

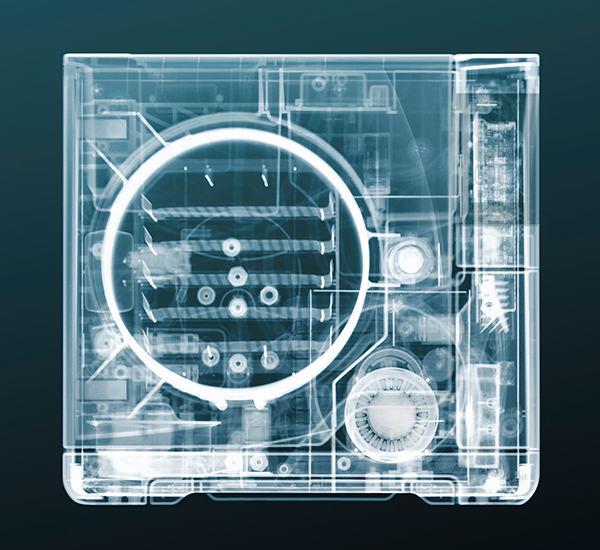

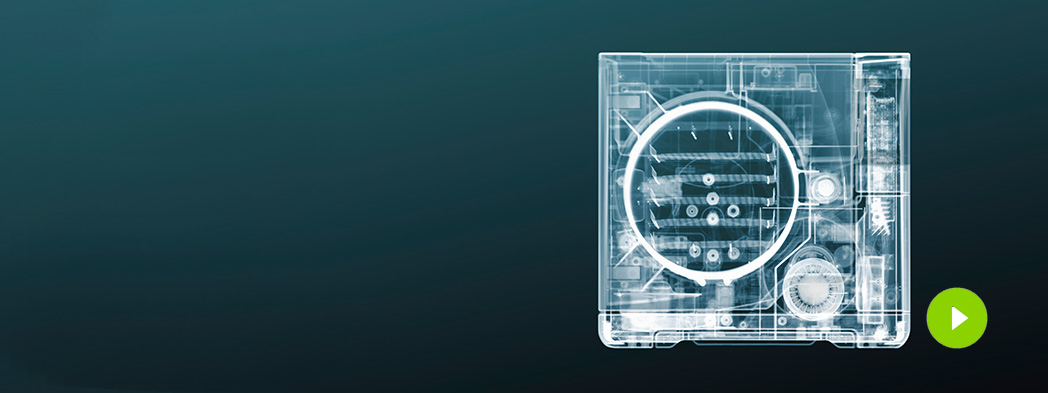

From the inside
So many elements, so much incredible technology and so many parts, completely integrated, in the right place and ready to serve and fulfil the daily requirements of a high end B type sterilizer!
Incredible thanks to
EliSense Status Sense
- EliSense: Thanks to LED indicators and display the outstanding technology offers cycle status information, temperature information and much more to optimize both workflow and output at a glance.
- EliTrace: For the first time, the sterilization process can be traced and documented down to the individual instrument or instrument kit. Without additional software or computer.

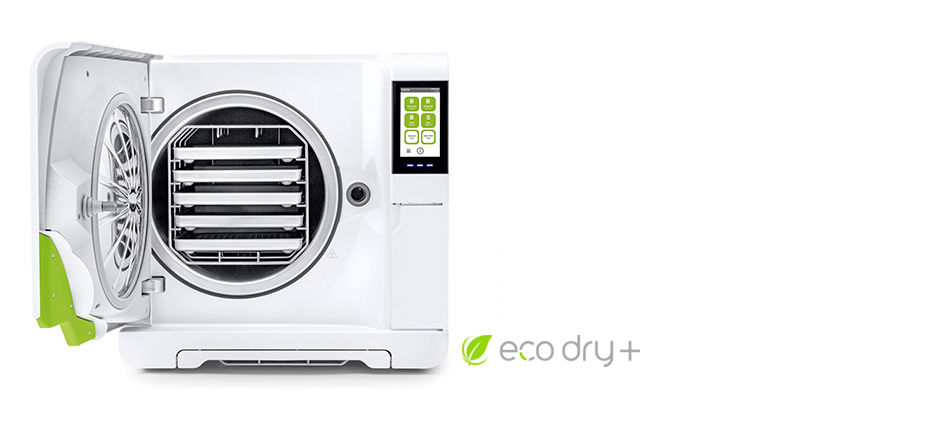

- Eco Dry+: Eco Dry technology adapts the drying time to the mass of the load. This reduces the cycle time, increases the life span of your instruments and optimizes the energy consumption.
- Intuitive interface
- Perfect ergonomics

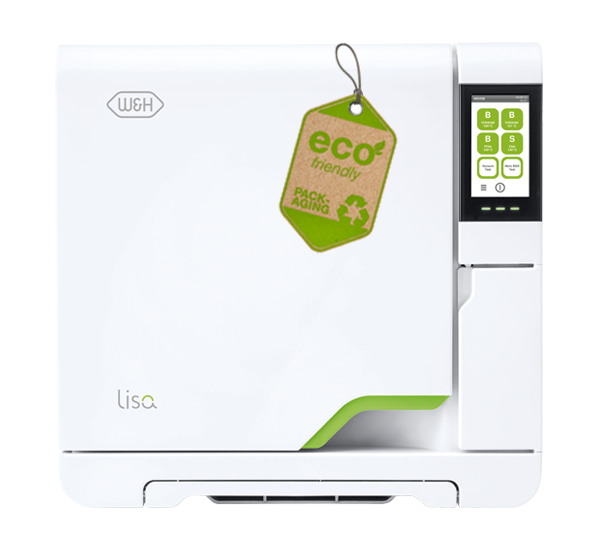

New environmentally friendly packaging
The new packaging is completely reusable and recyclable.
Shows you the cycle status of your sterilizer.
EliSense Status SenseAll the information you need at a glance:
Cycle in progress
The green lights flash.
The green lights are static.
Manual Cycle Stop
Occurs every time you stop the cycle manually while progressing: The red lights flash.
Manual Cycle Stop finished
The cycle error or manual stop has finished: The lights are static.
Chamber temperature cold
The load can be handled: The blue lights are static.EliSense Smart Sense
Tells you what your sterilizer needs.
EliSense Smart SenseTells you:
› When to replace Multidem
› How to optimize drying
› The status of the vacuum test temperature
› When the next tests depending on local legal requirements are neededEliSense Temperature Sense
Makes your work safer.

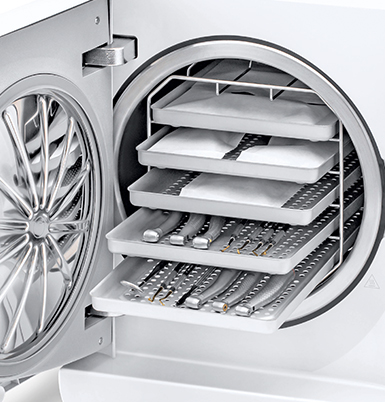

EliSense Temperature SenseEliSense doesn´t only care for the well-being of the sterilizing process but also of yours: by warning you if you have already opened the door, but the load is still too hot to be touched.Step 1 Collecting data
Step 1 Collecting dataThe first step for full traceability is creating a data bank of all instruments and kits. This can be done directly by touching the screen – or via the extended Lisa Mobile App. All types of instruments and kits are pre-installed. But there is also the possibility to create individual ones.Step 2 Load identification
Step 2 Load identificationThere are three ways for load identification.

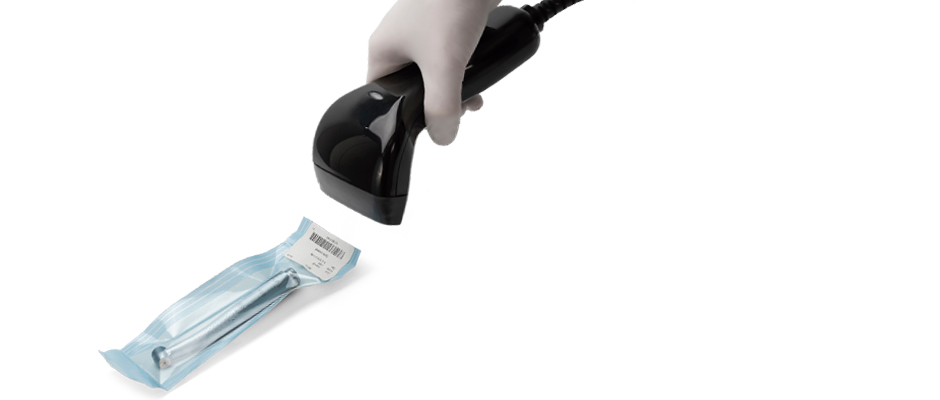

The first way: you preprint a certain amount of related barcode labels and put them into an organizer. When it comes to sterilizing, you simply attach the related barcode label to the pouch and scan it. Now the EliTrace system knows which instruments or kits are in the pouch.
The second way: you print one label per instrument or kit, storing them so as to have them ready at any time. During loading, you scan and then print the final label to be added to the pouch.
The third way: directs you to the display, where you choose the related product or kit. Then you just need to press the print button on the display to get the related barcode label printed.Step 3 Retrieval
Step 3 RetrievalAfter storing the sterilized instruments in their pouches, a simple scan of the barcode labels when at the dentist´s chair shows you and your patient when the instruments or kits have been successfully sterilized.

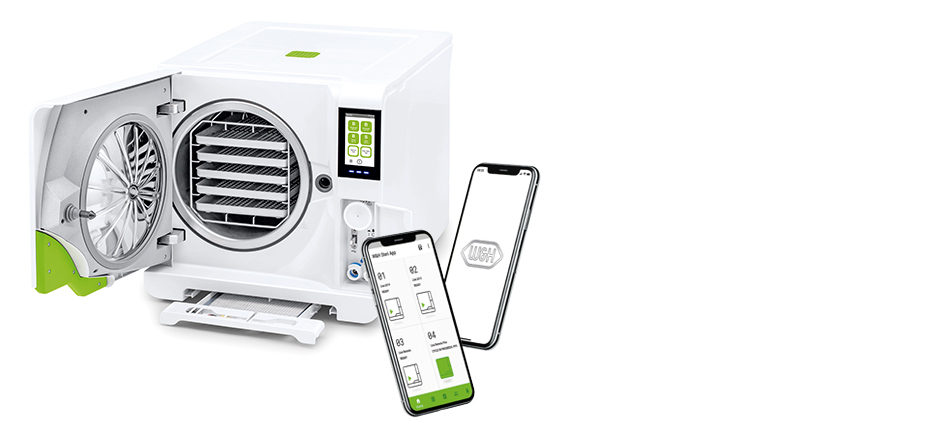

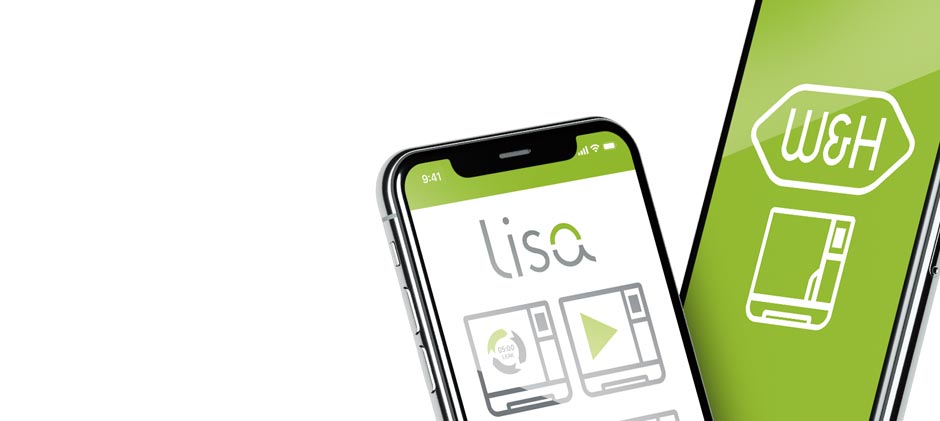

EliTrace Database via Mobile App
Create the database for EliTrace via the Lisa Mobile App.

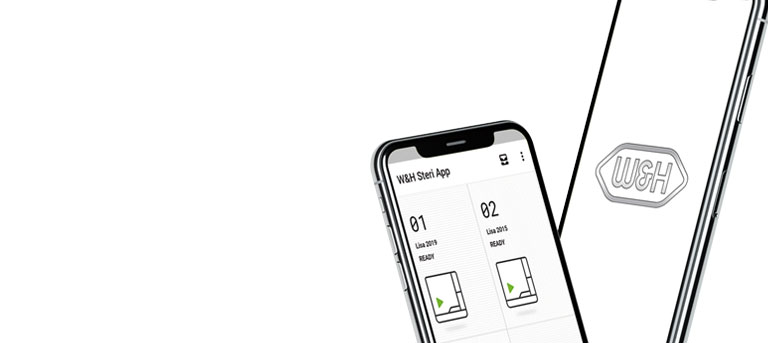

Real Time Remote Monitoring
Monitor up to 4 sterilizers with your smartphone or tablet in real time from any place within your practice.
The cycle database is also saved in your smartphone or tablet. This guarantees you an extra backup and enables you to check any cycle report at any time.
Barcode scanner onboard
Lisa Mobile App is able to retrieve cycle reports from a barcode label printed by LisaSafe. The barcode can be read with the smartphone camera.
You are able to create and delete users and link pictures to them. The user list will be automatically updated on the sterilizer.
Extends service life
Automatic adjustment of the drying time depending on the load reduces the heat exposure time. This extends the service life of your instruments.
Reprocessing in less than 15 minutes!Wipe disinfection in 1 minute
Disinfect your instruments before cleaning and servicing by wiping them.Maintenance in 10 seconds
The Assistina Twin reduces the maintenance process to a record time of 10 seconds.

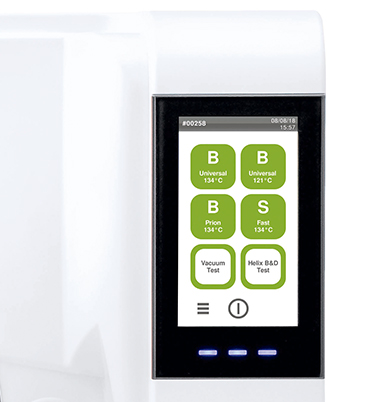

The new Lisa crystal clear colour touchscreen not only offers EliSense. It offers the entry to an intelligent menu structure with a wide range of options to make your daily work easier, faster, and more efficient.
Simple cycle selection
As soon as the Lisa is switched on, the home screen immediately displays the cycle selection.
Risk-free cycle selection
The custom cycle selection feature allows you to select which cycles are displayed on the home scree.
Instruction is available with the help button in order to assist you during navigation.
A set of 3-D animations shows you the main maintenance operations step by step. Makes operation easy and straightforward.
Easy to use
The Lisa touch screen with intuitive menus offers a wide range of options to meet all your needs.
Four logical groups of activities are displayed for swift and efficient navigation.
The revised design is setting optimized hygiene and ergonomic standards in modern dentistry.
Filling + Cleaning
A high capacity integrated funnel prevents water splashes during the water filling process.
Thanks to a smooth surface design with minimized gaps.
An automatic water filling valve allows you to connect a demineralization system. Manual filling and draining are no longer required.
With the modular front feet, Lisa can be installed on the narrowest benches.
Lisa can be built into a cabinet thanks to the optimized internal air circulation.
Effortless tank access
The tank cover can be easily removed without tools to clean the tank.
Steriliseringscykel B-Universal 134 B-Prion 134 B-Universal 121 Snabbcykel Temperatur 134 °C 134 °C 121 °C 134 °C Hålltid (minuter) 4 18.5 15.5 3.5 Total längd på cykel
(i minuter) inklusive
Full last Lisa 17Automatisk mellan21 och 44 30Automatisk mellan36 och 60 46 36 och 60 13 Lisa 22Automatisk mellan21 och 49 31Automatisk mellan36 och 64 47 36 och 63 15Lisa 17 lastLisa 22 lastmaximal solid 4.5 kg. / vanlig 2 kg. / maximal porös 1.5 kg.maximal solid 6 kg. / vanlig 2 kg. / maximal porös 2 kg.max. solid 0.5 kg.max. solid 0.6 kg.
Lisa 17 / 22 kassettlast max. 9 kg. Inte tillämpbar Testcykler Helix / Bowie Dick / Vakuumtest
Produkter levereras med vändbara brickhållare, 5 aluminiumformar, dräneringsrör, 8 GB USB-minne, dörröppningsverktyg (används vid strömavbrott), fabrikstest
Ny Lisa autoklav
Lisa 17 Lisa 22 Modell VA131-17 VA131-22 Kammarstorlek: 17 l. 22 l. Strömförsörjning: 200 / 240 V AC
50 - 60 Hz / 10 A
Strömförbrukning: 2000 - 2400 W Storlek
(bredd x höjd x djup):
465 x 449 x 599 mm. Vikt: 50.2 kg. 51.7 kg. Huvudtank / tank förbrukat vatten: 4 / 3.5 l. Arbetsintervall: 7 till 12 cykler Användbart kammarutrymme
(bredd x höjd x djup):
195 x 195 x 297 mm. 195 x 195 x 390 mm. Anslutningar: 1 Ethernetport, 3 USB ports, 1 serialport, integrerad automatisk vattensanslutning Lisa autoklaver är utformade, certifierade och validerade i enlighet med de strängaste direktiven och standarder på marknaden: 93/42/CEE Medical Device Directive (MDD) 2014/68/EU Pressure Equipment Directive (PED) EN 13060 Small steam sterilizer EN 61326-1 Electromagnetic compatibility IEC 61010-1 Safety requirements for electrical equipment for measurement, control and laboratory use,
IEC 61010-2-040 Safety requirements for electrical equipment for measurement, control and laboratory use;
particular requirements for autoclaves using steam for the treatment of medical materials and for laboratory processes
Autoklaven kan valideras enligt EN ISO 17665-1
