Independence with an extra small head

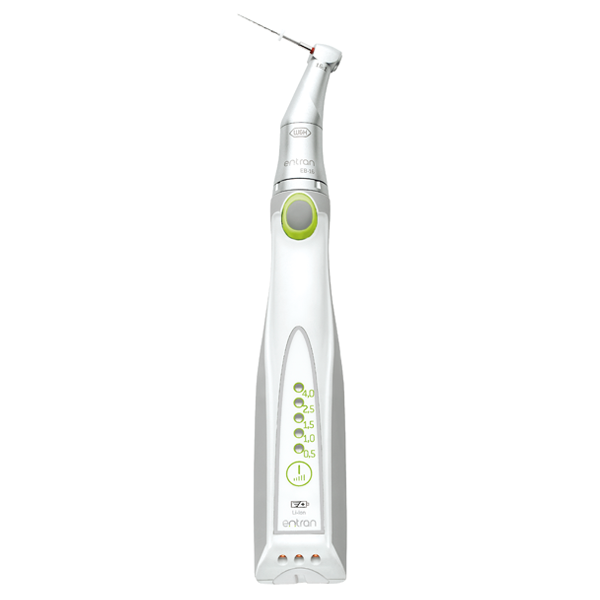

Optimal freedom of movement is not the only reason that Entran amazes as a cableless solution for automatic root canal preparation. The specially designed, light contra-angle handpiece considerably reduces hand fatigue.
The extremely small head increases the field of view and allows optimal access to the treatment site. The long-lasting lithium-ion battery makes up to 30 treatments possible with one charge.
Your advantages at a glance
- Cordless for complete freedom of movement
- Contra-angle attachment with extremely small head
- Torque limiting and torque control
- Auto reverse and auto forward mode
- Reliability with long-life Li-ion battery
- Ergonomic drive handpiece for fatigue-free and comfortable working
- Contra-angle head thermo washer disinfectable and sterilizable
Safety functionsThe autoreverse and autoforward modes with automatic safety stop minimize the risk of file breakage.Torque control
Torque controlThe LED control ring lights up when over 75 % of the set torque is reached.Maximum comfort
Maximum comfortErgonomically shaped drive handpiece for comfortable and fatigue-free working.

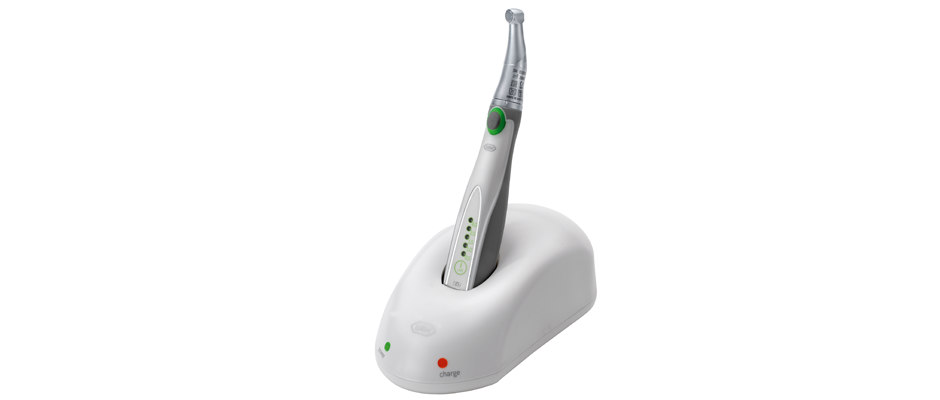

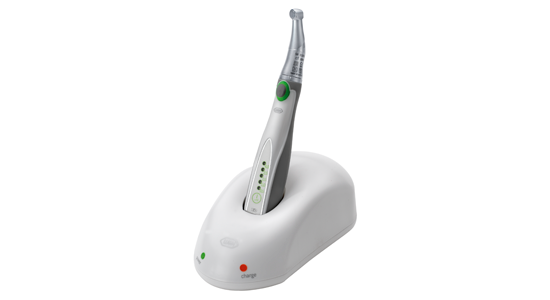

Endo Cordless Set
consists of: contra-angle head EB-16,
drive handpiece EB-3 H, charging station,
Li-ion battery, mains cable and file overview
Always check that the values stated on the file cards are accurate and up to date.
Please re-order files at your responsible dental dealer.
Drive handpiece EB-3 H Battery type: Li-Ion Battery voltage: 3.7 V Rated capacity: 680 mAh Speed at root canal instrument: 300 rpm Torque stages: 0.5 / 1.0 / 1.5 / 2.5 / 4.0 Ncm Weight: 85 g Contra-angle head EB-16 Transmission ratio: 16:1 Coupling system: W&H coupling Recommended root canal instruments
according to EN ISO 1797-1:1995:
Files for rotary root canal preparation at 300 rpm
with a shaft diameter of 2.35 mm
Weight: 35 g Hygiene: thermo washer disinfectable / sterilizable Charging station Mains voltage: 100 – 240 V Permissible voltage fluctuation: ±10 % Frequency: 50 – 60 Hz Rated current: 0.08 – 0.12 A Power: 5 W Weight: 345 g
