This product is not available anymore.

    • Osstell ISQ module

      Measurable stability

      Implant stability can be measured precisely with the W&H Osstell ISQ module, which is available as an accessory. The measured Implant Stability Quotient is confirmed by numerous clinical trials.

      Watch video
      eBook

    • Osseointegration

      Measurement result

      ISQ (Implant Stability Quotient) is a measurement scale for use with the RFA (Resonance Frequency Analysis) method of determining implant stability.
      It is presented by a resonanced frequency (kHz) on a clinically useful scale of 1 to 100 ISQ.


      Thus, osseointegration can be observed during the treatment progress to diagnose the optimum moment for the load of the implant.

    • SmartPegs

      Measurement of osseointegration

      SmartPegs are high precision small metal bars, which are screwed into the implant for the measurement. SmartPegs are easy to insert and can be used in even the most limited spaces in the patient's mouth.
      SmartPegs are for single patient use only and are available for different implant systems.

      Included in scope of delivery

      • Promo Code for 5 steril packed SmartPegs
      • TestPeg for learning the application
      • SmartPeg mount to crew-in SmartPegs securely


    • Documentation

      Documentation of osseointegration

      The documentation function conveniently saves all values of the implant insertion on a USB stick.

      Watch video

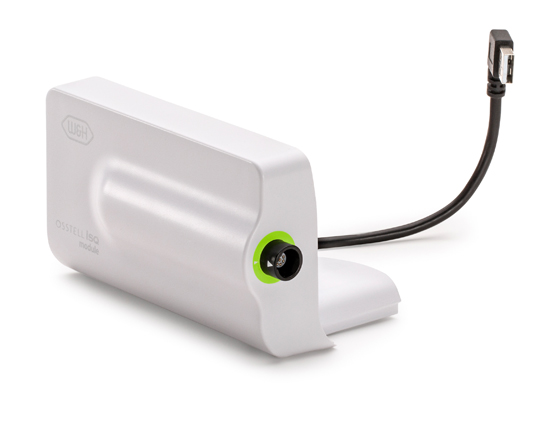

      W&H Osstell ISQ module

      W&H Osstell ISQ module

      consists of
      > Osstell ISQ module
      > Measuring probe with cable
      > TestPeg
      > SmartPeg Mount

      SI-SQ
      REF 30210000

      W&H Osstell ISQ module

      Download Area

      FAQs

      • How does the measurement of the ISQ work?
        > To measure the ISQ of an implant, you first screw a 'SmartPeg' into the placed implant. The SmartPeg, with its magnet on top, works like a small tuning fork. The magnet on the SmartPeg is ‘hit’ with magnetic pulses, from the probe, which makes the SmartPeg vibrate. Due to the stiffness in the interface between the implant surface and the bone the SmartPeg will vibrate accordingly. The more dense the bone is the higher stability and the higher ISQ value.
        isq scale more
      • Where can I buy the SmartPegs?
        Please contact your local W&H UK partner
        A voucher will be included with any unit purchased, enabling the purchaser to request 5 free SmartPegs. more
      • Is the ISQ scientifically proven?
        The Osstell ISQ technology is supported by over 1400 scientific studies. These studies have proven that torque and ISQ correlate. more
      • What’s the difference between torque and ISQ?
        Torque is a one time, static measurement at the time of placement of the implant and cannot be repeated later on in a non-invasive way. Osstell ISQ measures the lateral stability of the implant and the measurements can be repeated in a non-invasive, dynamic way to monitor the development of osseointegration. more
      • Is every Implantmed compatible with the W&H Osstell ISQ module?
        Implantmed Plus control units SI-1023, SI-1015 and SI-1010 can be upgraded with the W&H Osstell ISQ module. For the new generation of Implantmed Plus II the Osstell Beacon can be connected. more
      • What does ISQ stand for?
        The abbreviation ISQ stands for Implant Stability Quotient. It is a value between 1 and 100 and gives the surgeon an insight of the implant stability after placing the implant. With the ISQ value the surgeon can monitor the osseointegration. more
