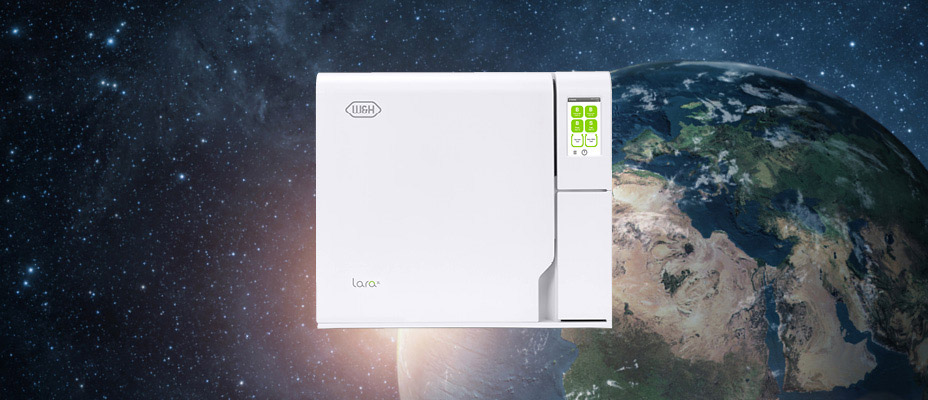

Lara XL sterilizer

Xceeds Limits

The device convinces with even more capacity, energy-saving and fast type B cycles.
Its connectivity and advanced traceability options make the sterilizer ready for all individual needs now or in the future. Moreover, the easy navigation guarantees complete control of the workflow, saves time and offers full protection for you and your patients.

AR/3-D

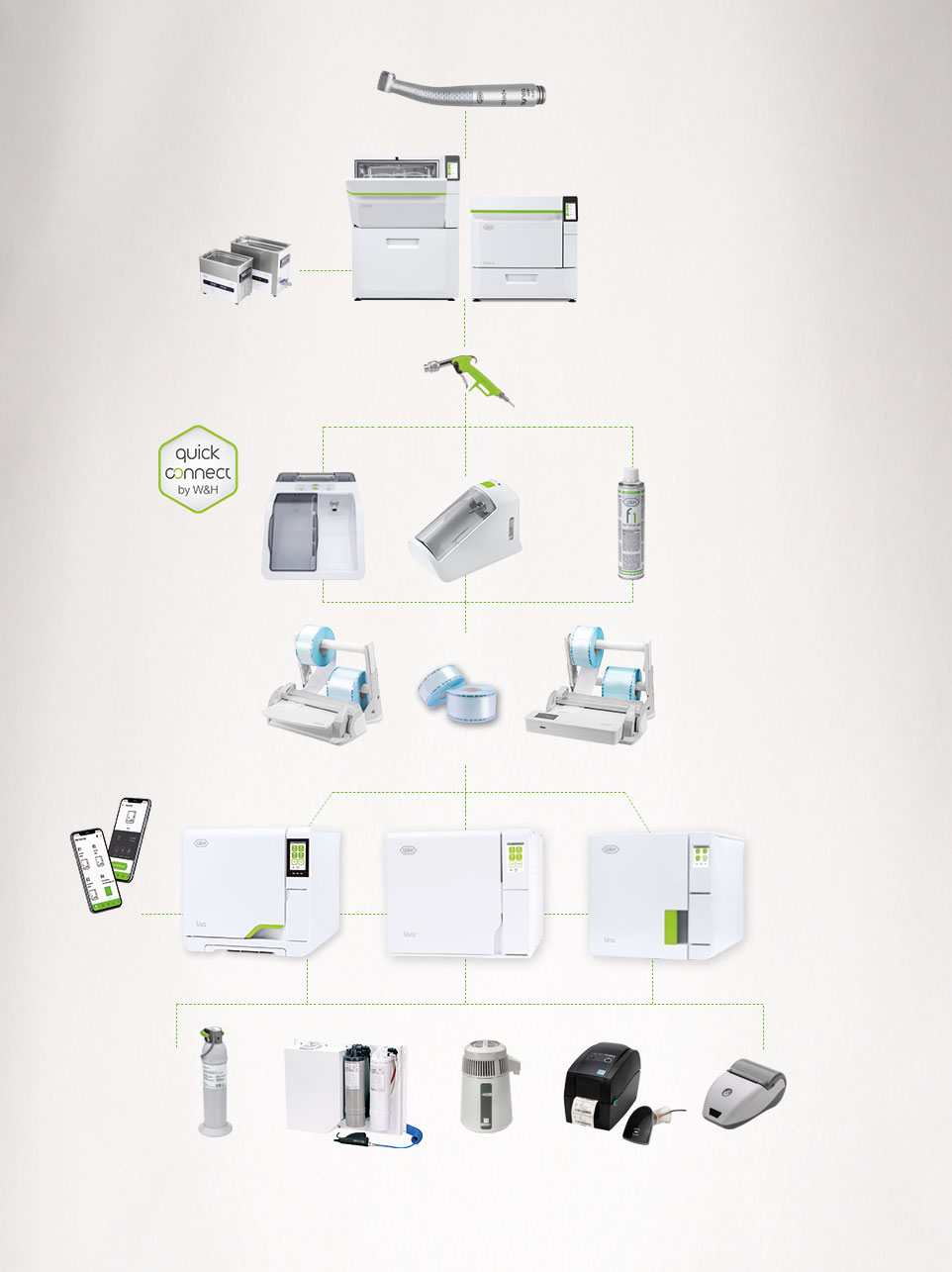

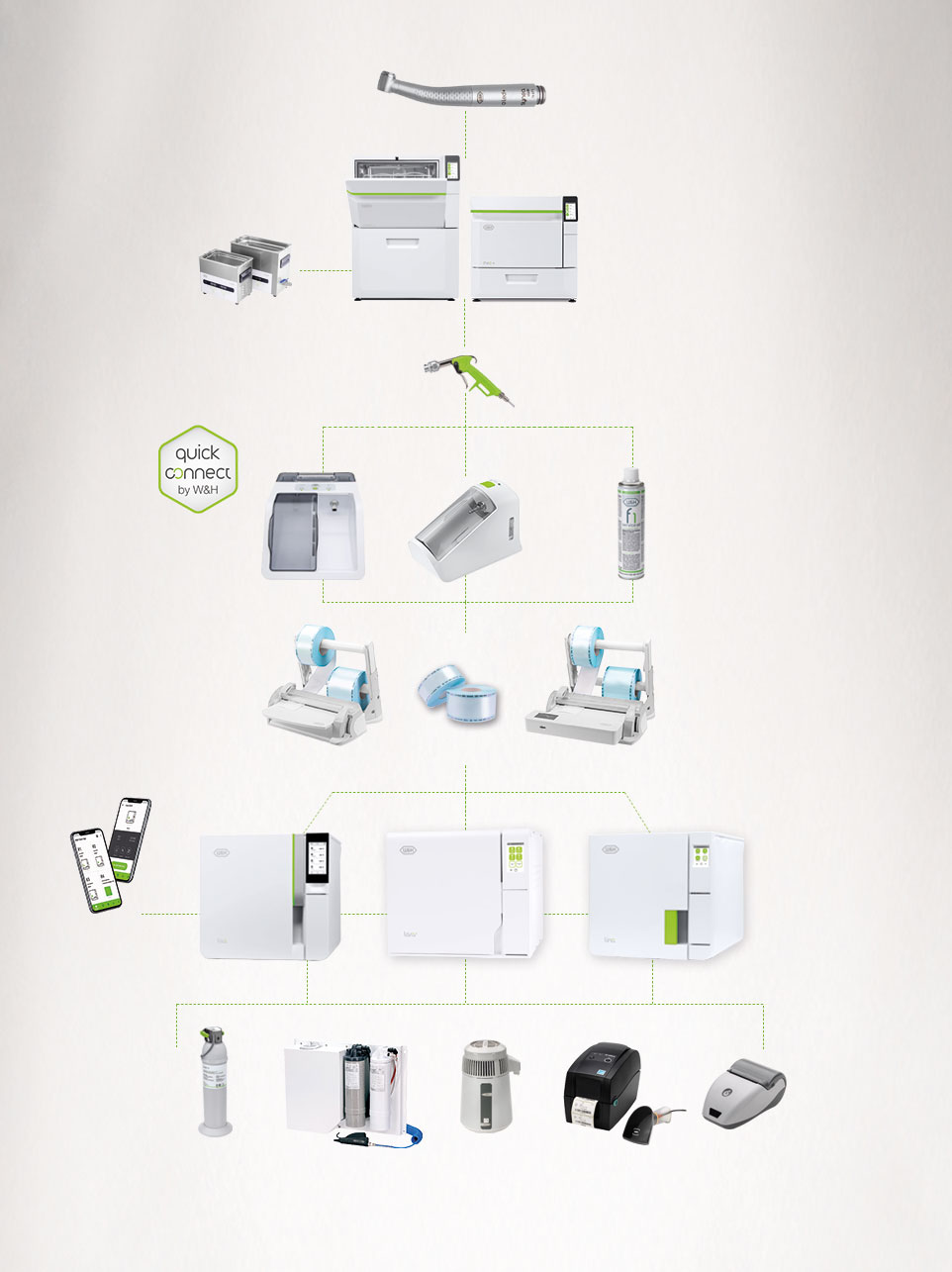

System overview

Sterilization, Hygiene & Maintenance

Sterilization, Hygiene & Maintenance

System Overview

  •

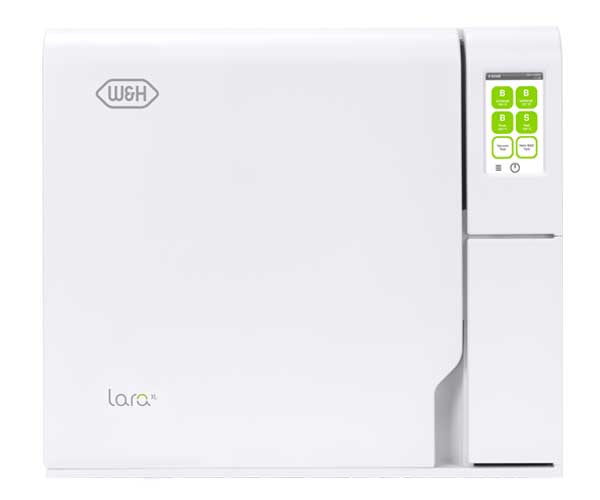

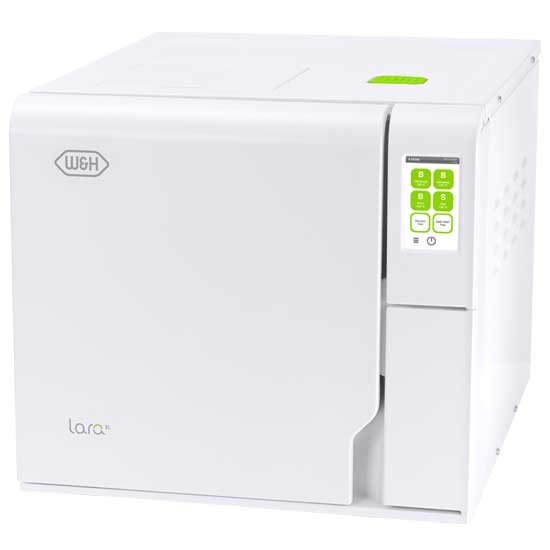

    Lara XL device

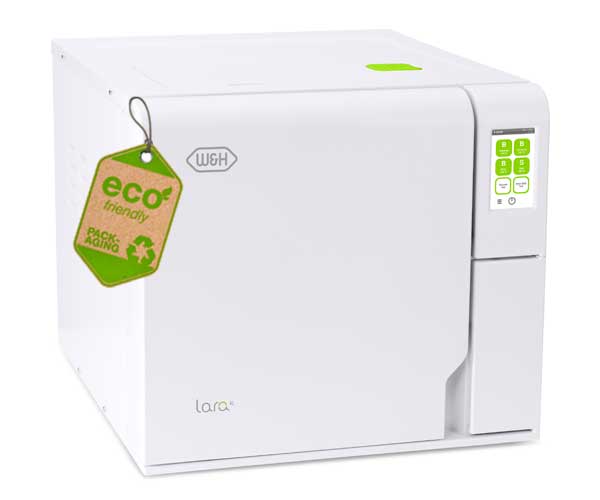

    Lara XL with eco packaging label

    Lara XL will exceed your expectations

    The technical expertise makes the difference. The Lara XL sterilizer is
    based on a sophisticated technical concept that offers future-oriented possibilities and significantly simplifies your workflow.

    Xceeding because

    • Eco Dry + technology
    • High capacity
    • Unique connectivity and upgradeability
    • Advanced traceability options
    • Easy to navigate

    • Environmentally friendly packaging
      The new environmentally friendly packaging is completely reusable and recyclable. Plastic components were reduced to a minimum. For 99% of its weight, the new package is made of cardboard and other fully biodegradable substances.

    • Eco Dry +

      Xceeding performance



      The advanced patented Eco Dry + technology adjusts the drying time to the mass of the load. This reduces the cycle
      time, increases the life span of your instruments and optimises the energy consumption.

    • Capacity

      Xceeding capacity



      With its 28 litre chamber, Lara XL is able to reprocess up to 7 kg of wrapped instruments or 9 kg containers. Thanks to its 6-tray rack, it is extremely flexible.

    • Connectivity

      Xceeding connectivity



      Lara XL is based on a sophisticated and future-oriented technical concept. Wi-Fi and LAN connections offer the possibility to download cycle reports directly to any PC or smart device.


      Innovations such as ioDent® or the W&H Steri App are forward-looking ways of integrating practical digital tools into the workflow.

    • Activation Codes

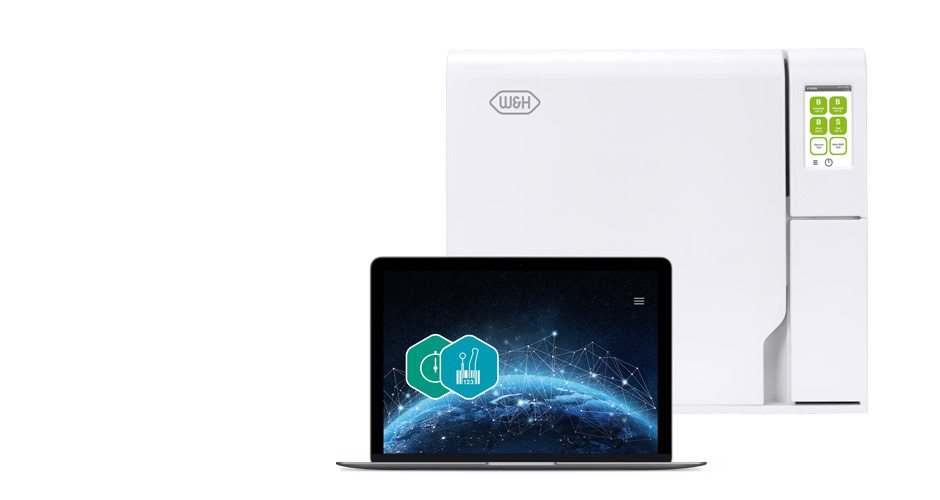

      Xceeding upgradeability



      Needs and requirements can change.
      With the Activation Code system, additional functions can be activated to reflect your changing practice needs and meet future requirements.

      Lara XL can be upgraded with two W&H Activation Codes: EliTrace and Fast Cycle.

    • Easy operation

      Xceeding usability



      The intelligent menu structure of the new Lara XL sterilizer ensures extraordinarily high operating comfort: You can navigate to the different functions quickly and intuitively using the large colour touch display.

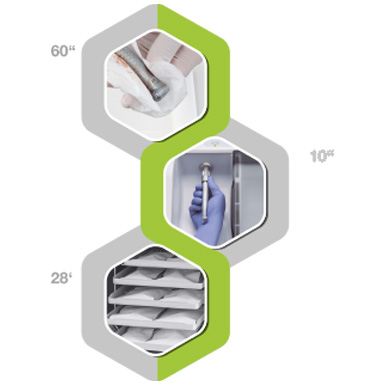

      Reprocessing in less than 30 minutes
      Thanks to Eco Dry + technology, Lara XL can sterilize instruments in just 28 minutes.

      Reprocessing in less than 30 minutes!

      https://a.storyblok.com/f/45617/385x385/748ce8d3a0/lara-xl_overlay_reprocessing.jpg



      Wipe disinfection in 1 minute
      Disinfect your instruments by wiping them down before cleaning and maintenance.


      10 seconds maintenance
      The Assistina Twin reduces the maintenance process to a record time of 10 seconds.


      Sterilization in 28 minutes
      Thanks to Eco Dry + technology, Lara XL can sterilize instruments in just 28 minutes. After the sterilization cycle, the instruments can be used immediately or stored.

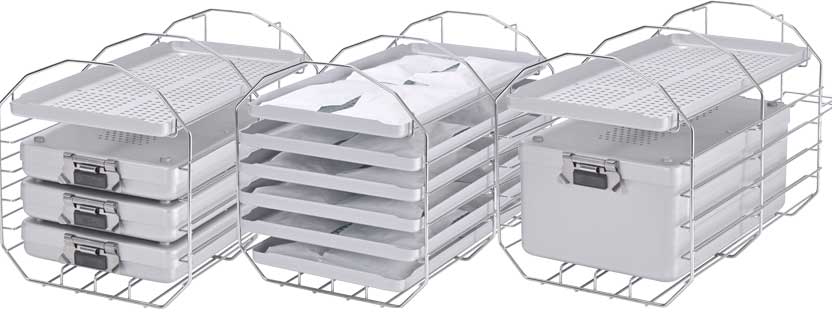

      Higher efficiency due to larger capacity …
      Lara XL comes with 6 large trays along with a unique rack providing larger loading surface and more loading
      options.

      ... and less cycle time.

      Lara XL offers versatile program options for all type of loads in order to save time during daily activities.

      https://a.storyblok.com/f/45617/832x318/7b25131ca7/lara-xl_overlay-6tray-container.jpg
      Unique connectivity
      and upgradeability
      W&H innovations such as ioDent®, the Steri App or the Activation Code system simplify daily work.
      Full traceability
      without extra software or computers: with EliTrace.

      Advanced traceability – Set a new standard with EliTrace

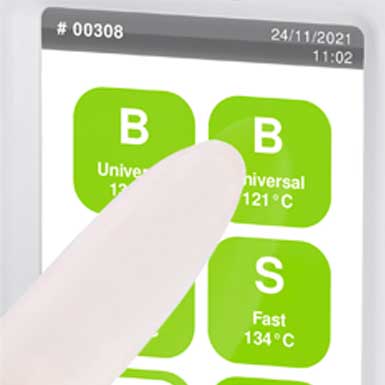

      Easy to navigate
      The Lara XL colour touch display offers access to an intelligent menu structure with a wide range of options.

      Intuitive navigation

      The colour screen display allows you to navigate through the intelligent menu structure quickly and with ease.

      https://a.storyblok.com/f/45617/385x385/582b08995b/lara-xl_overlay_display.jpg
      Automatic water filling
      An automatic water filling valve allows to connect a demineralization system. Manual filling and draining are no longer necessary.

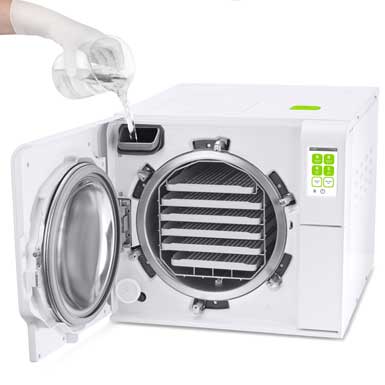

      Easy filling




      An integrated high-capacity funnel prevents water splashes during the filling process.

      https://a.storyblok.com/f/45617/760x400/296b2953db/lara-xl_overlay-easy-filling.jpg

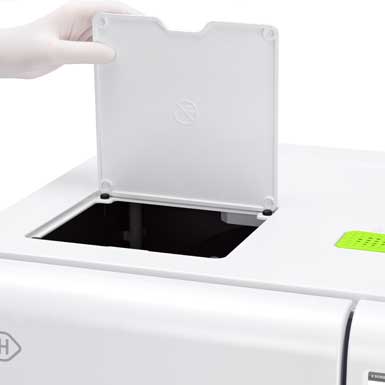

      Effortless tank access

      https://a.storyblok.com/f/45617/385x385/49ed88ab4a/lara-xl_overlay-tank-access.jpg



      The tank cover can be easily removed without tools to clean the tank.

      Activation Codes
      for Lara XL



      Prepare yourself now:
      With the Activation Codes




      Additional features at a glance:

      Fast Cycle
      The quick cycle for in-between: The Fast Cycle allows the sterilization of unwrapped instruments, including handpieces, in just 20 minutes.
      EliTrace
      With the EliTrace feature, the sterilization process can be traced and documented down to the individual instrument or kit. Without any additional software or computer.



      Xceeding upgradeability
      thanks to Activation Code system

      Six steps to your customized sterilizer:

      1. Purchase the Activation Code of your choice from your local approved dental supplier.
      2. After receiving the related login code go to activation.wh.com
      3. Specify this code along with the serial number and model of your sterilizer.
      4. Your individual, secure Activation Code is generated.
      5. Enter this code in the menu of your sterilizer.
      6. The feature is available.
      ACTIVATE FEATURE NOW!
      Step 1
      Collecting data

      Collecting data

      The first step towards full traceability is creating a database of all instruments and kits. This can be done directly by touching the screen – but also via PC or W&H Steri App. Different types of instruments and kits are pre-set.
      But there is also the possibility to create individual ones.
      Step 2
      Load identification

      Load identification

      There are three ways for load identification.

      The first way: You pre-print a certain number of related barcode labels and place them in an organizer. When it comes to sterilizing, simply attach the related barcode label to the pouch and scan it. Now the EliTrace system knows which instruments or kits are in the pouch.

      The second way: You print one label per instrument or kit, keeping them to have them ready at any time.
      During loading, you scan and then print the final label to be added to the pouch.

      The third way: Directs you to the display, where you select the related product or kit. Then all you have to do is press the print button on the display to get the related barcode label printed.
      Step 3
      Retrieval

      Retrieval

      After storing the sterilized instruments in their pouches, a simple scan of the barcode labels when at the dentist´s chair shows you and your patient when the instruments or kits have been successfully sterilized.

      Xceed Limits
      with Lara XL

      The new Lara XL sterilizer offers you exceeding performance thanks to
      Eco Dry +.



      Time saving
      Type B cycles process and perfectly dry 2 KG OF LOAD IN JUST 40 MINUTES.

      Extends service life
      Automatic adjustment of the drying time depending on the load reduces the heat . This extends the service life of your instruments.
      Energy saving
      Optimising the drying time means less energy consumption. This makes Lara XL the "green solution".

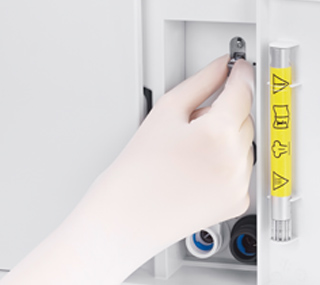

      • Complete documentation


        The documentation is automatically saved
        via a high-capacity USB stick.

      • Linking cycle, sterilization package
        and patient

        The barcode label printer provides additional support on traceability thanks to the opportunity for linking cycle, sterilization package
        and patient.

      • Adequate paper documentation

        The cycle report printer ensures adequate
        paper documentation of the cycle.

      USB-stick

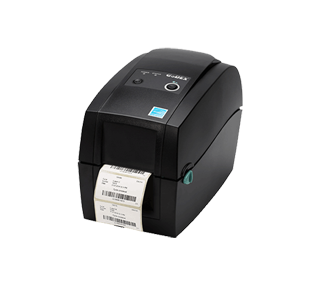

      LisaSafe

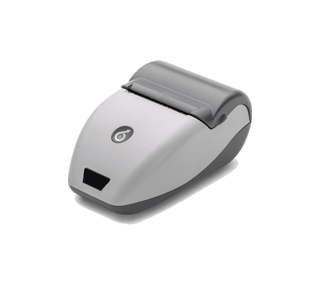

      Sprint

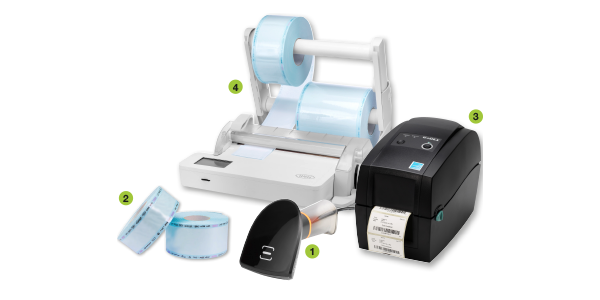

      Appropriate accessories
      for full traceability

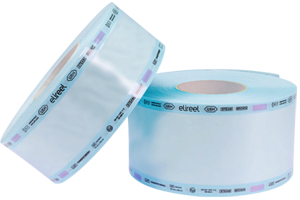

      EliReel

      W&H‘s sterilization reels ensure excellent drying quality, resistance and an easy-to-read steam indicator.
      These features simplify both the sealing and sterilization processes and also improve safety in the clinic. More Info!

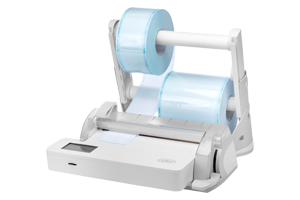

      Seal2 and SealVal2

      The W&H sealer creates a 12 mm wide seal in just two seconds without the risk of burning the sterilization package. The absolute hermetic and strong protection
      of the sterile goods from environmental influences guarantees continuing sterility. More Info!

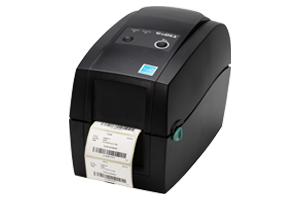

      Barcode label printer

      The label printer can be connected to the sterilizer to print barcodes. In combination with the integrated data logger, it improves your traceability system.
      The label printer is a quick and easy tool to link the sterilization cycle with patient files. More Info!

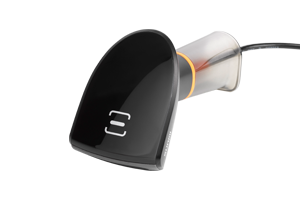

      Barcode scanner

      This enables you to scan labels into patient files.

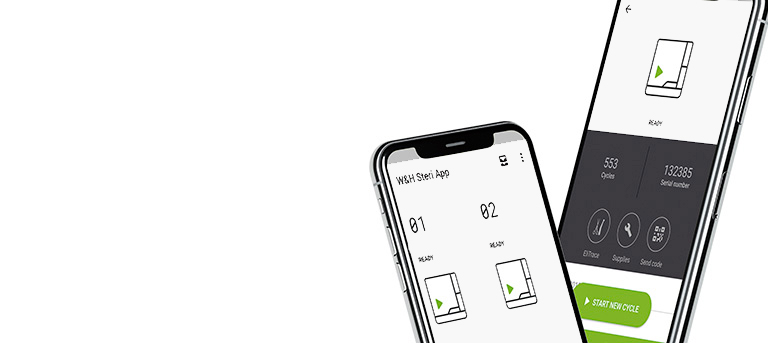

      W&H Steri App


      The W&H Steri App allows controlling and remote monitoring of the sterilizer. Moreover, cycle history back-up automatically saved on smartphone ensures extra-safety.

      Download on the App Store

      Download on Google Play Store

      Compatibility:

      The application is compatible with all sterilizers currently available.
      Available languages: EN, IT, FR, DE, ES, ZH-CN, JP

      Main features:

      Remote control of your sterilizer: the user can remotely command up to 4 sterilizers.
      Advanced traceability: EliTrace feature is now fully supported and the App permits to create instrument database directly from your smart device. In addition to this function, the management and tracking of dental instruments is integrated.
      Reports creation: the App allows making intervention reports in order to collect data regarding specific treatments.
      User management: creation and handling of sterilizer users directly from your smart device.
      Backup functionality: all the cycle reports are automatically saved to assure more protection of data.

      Steri App!
      Lara XL sterilizer

      Lara XL sterilizer

      supplied with rack, 6 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test

      Lara XL RIS-311
      REF 19933110

      Chamber size 28 l

      Request Price

      Download Area

      FAQs

      more

      Instructions for use

      Instructions for use
      Lara sterilizer
      Maintenance Sheet
      Lara XL RIS-311 2022

      Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

      Downloads

      Video Tutorials

      For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

      Accept

      Service

    • Lara XL sterilization cycles

      Sterilization cycle B Universal 134 B Prion 134 B Universal 121 S Fast 134 (optional)
      Temperature: 134°C 134°C  121°C 134°C
      Holding time (minutes): 4' 18' 30'' 20' 30'' 3' 30''

      Total cycle duration (minutes) including
      complete drying:
      Automatic from
      		Typical load
      Automatic from
      		Typical load Automatic from Automatic from
      28‘–63‘
      		41'
      42‘ 30‘‘–
      77‘ 30‘‘
      		55‘ 30‘‘ 42‘–82‘ 21‘–25‘
      Load type:
      All unwrapped, bagged, single/double wrapped items:
      › Solid
      › Hollow A (narrow lumen)
      › Hollow B (simple hollow item)
      › Porous
      Unwrapped items:
      › Solid
      › Hollow B (simple
      hollow item)
      › Dental load
      Max. load: Instruments: 7 kg/porous: 2,3 kg/containers: 9 kg Instruments: 2 kg
      Test cycles: Helix/Bowie and Dick/Vacuum
      Item supplied with rack, 6 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test

      Lara XL

      Trade name:
      Type:       		Lara XL
      RIS-311
      Chamber size: 28 l
      Power supply: 200–240 V AC; 50/60 Hz; 10 A single phase
      Power consumption: 2.0–2.4 kW
      Overall dimension
      (width × height × depth):       		492 mm × 455 mm × 614 mm
      Weight (empty): 54 kg
      Main/used water tanks: 4.8 l/5.1 l
      Working range: 7 to 15 cycles
      Usable space in chamber
      (width × height × depth)¹:       		230 × 230 × 420 mm
      Connection types: 5 USB ports, 1 Ethernet port, automatic water filling kit

      (1) Usable space is referred to standard rack configuration.

      Lara XL sterilizers were designed, certified and validated with the most stringent regulations, directives and standards:

      N°2017/745

      Medical Device Regulation

      IEC 61326-1

      Electromagnetic compatibility

      2014/68/EU

      Pressure Equipment Directive

      IEC 61010-1

      Safety requirements sterilizer

      EN 13060

      Small steam sterilizer

      IEC 61010-2-040

      Specific requirements for steam sterilizer

      IEC 61770

      Electric appliances connected to the water mains

      2012/19/EU

      Waste Electrical and Electronic Equipment

      › The sterilizer can be validated according to EN ISO 17665-1
