What types of tubing can I use on with my device?

For motors with a length of 1.8 m you can use single-use tubings (04363600) or sterilizable ones (0417XXX). For the combination of Implantmed and Piezomed module, we offer a tubing with a Y-valve (08072750). You also can find the appropriate tubings in the instructions for use of the device.

Can other brands of tubing be used?

No, only W&H-approved irrigation tubings are permitted. This is due to specifications (material, dimensions, coolant flow), which could cause problems like leakage, insufficient cooling, or even damage to the device.

Is it possible to adjust the motor speed with the implant insertion program?

Yes, the torque as well as the speed can be set for implant insertion.

Is every Implantmed compatible with the W&H Osstell ISQ module?

Implantmed Plus control units SI-1023, SI-1015 and SI-1010 can be upgraded with the W&H Osstell ISQ module. For the new generation of Implantmed Plus II the Osstell Beacon can be connected.

What does the LC in EM-19 LC stand for, is there a LED in the motor?

The LC stands for light contacts. This means that we have integrated an electrical connection into our new motors. The light contacts supply our contra-angle handpieces with the “L” suffix (e.g. WS-75 L) with power, thus providing optimal light at any speed.

Can current contra-angles be attached to motors?

Yes. All W&H surgical contra-angles and handpieces can be attached to the motor EM-19.

Can the contra-angles be attached to old motors?

No. In order to ensure optimal balance, we have shortened the inner coupling length. Therefore, contra-angle handpieces with only the “L” suffix cannot be attached to older motors, but only to EM-19 and EM-19 LC.

Can our customers disassemble the contra-angles

Yes. At W&H the letter "S" always communicates, that the surgical contra-angle is disassemble. The letter "I" communicates, that the surgical contra-angle cannot be disassembled (e.g. WS-75 L vs. WI-75)

Can Implantmed devices be retrofitted with the wireless foot control?

Implantmed Plus devices can be retrofitted. Simply plug the supplied dongle into the device and operate it using the wireless foot control. For Implantmed Plus II devices, you must decide whether you want a wireless or wired device version when purchasing. Retrofitting is not possible.

Piezomed module: can devices be retrofitted on the market?

Yes, devices can be retrofitted by users. The following combinations are possible: Implantmed Plus with Piezomed Plus module or Piezomed Classic module. Implantmed Plus II with Piezomed Module Plus II.

Do I need a connection to ioDent® to use Implantmed Plus II?

No, not for basic use of the device. However, connecting to ioDent® offers additional features. For example, users can then perform software updates themselves.

Can I connect the Implantmed Plus II to my practice Wi-Fi?

Yes, the device supports any encrypted 2.4GHz Wi-Fi network.

Can I connect the Osstell Beacon to the Implantmed Plus II?

Yes, the Osstell Beacon can be connected via a USB-A/USB-C adaptor.

Can I update my Implantmed Plus II software later?

Yes, simply create an ioDent® account and connect your device to it. You will then be shown available software updates for your device.

Will the implants I use be detected during scanning?

All medical devices with a valid code are displayed on the screen after scanning. When connected to ioDent®, the materials are displayed in plain text (name, serial number, etc.) in the patient documentation.

Is it possible to use the Implantmed Classic in combination with the wireless foot control?

No, the Implatmed Classic can only be operated via a wired foot control.

Vilka är de främsta fördelarna med programvaran SICAT Implant?

Vid frågor om själva SICAT-systemet, vänligen kontakta SICAT-medarbetare som kan besvara specifika frågor. Detaljerade instruktionsfilmer finns tillgängliga på ecademy.sicat.com. Generellt sett förstärker SICAT fördelarna med planering och behandling genom snabb digital vägledning.

Vad händer om jag definierar ett implantat som kan planeras i SICAT Implant, men det inte finns något motsvarande protokoll i ioDent®?

I ioDent® får du information om att protokollet inte är tillgängligt och att standardprotokollet för Implantmed också är inställt för behandlingen.

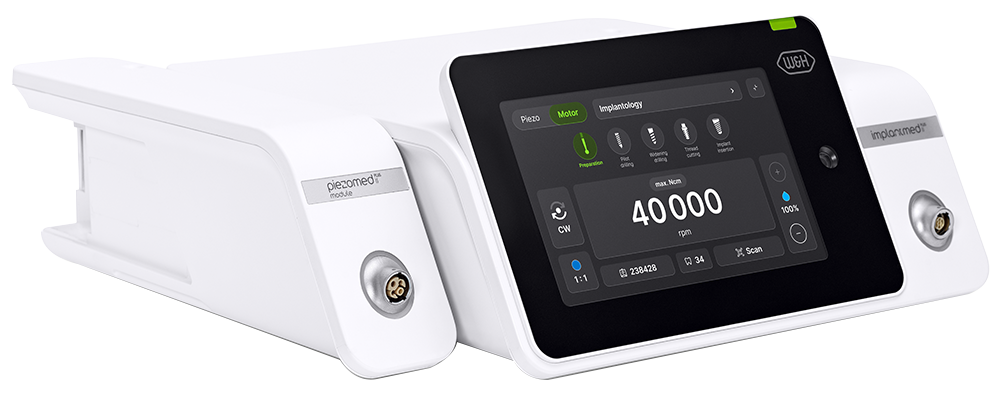

Implantmed Plus II

Name: Implantmed Plus II: W&H Oral Surgery device & Implantolgy motor
Brand: W&H

Ett måste inom oral kirurgi och implantologi

Upptäck fördelarna med nya Implantmed Plus II och Piezomed-modulen Plus II med beprövad W&H-kvalitet – och se själv varför den nya OSI-plattformen är ett riktigt måste.

Systemöversikt

Implantmed Plus II
Teknisk data

Smart assistans för avancerad implantologi

Implantmed Plus II är på väg att bli en oumbärlig assistent i operationssalen. Målet är att på bästa möjliga sätt stödja användarens effektivitet – oavsett om det gäller implantatinsättning eller extraktion av visdomständer.

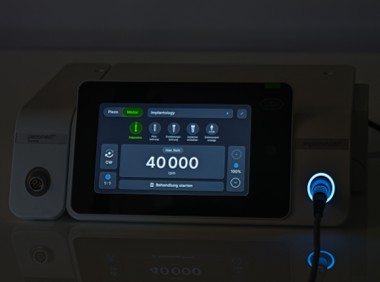

Intelligent Light-Guide

Orientation at a glance

The intelligent Light-Guide ensures immediate orientation even in stressful situations by indicating the respective application.

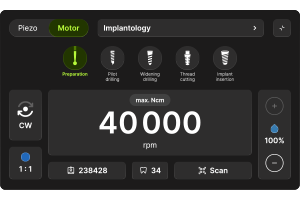

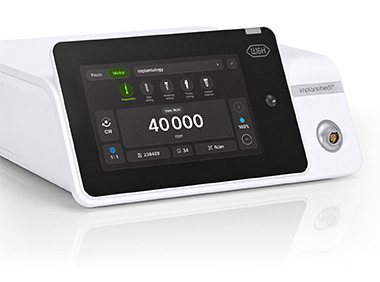

7“ display och intuitivt användargränssnitt

More clarity, more control

A significantly larger 7" display, which is even more powerful and comes with an optimised user interface, enables simple and intuitive operation.

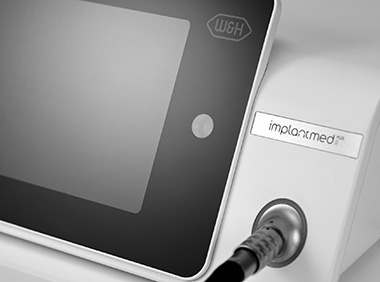

Integrerad Scanfunktion

Fast, secure documentation and traceability.

With the integrated scan function and the connection to ioDent^®, time-consuming manual documentation of used materials, like implants and biomaterials, belongs to the past.

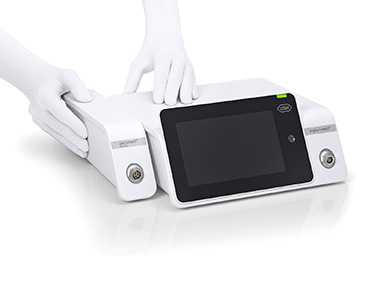

Två i en

Maximum modularity, high flexibility, minimum setup.

The Piezomed module Plus II is simply connected to the device via a sliding mechanism – no cables, no additional power supply.

ioDent^® Smart connection

Intelligent dental solutions. Extended service support.

The ioDent^® system offers intelligent dental solutions and enables extended service support. With built-in Wi-Fi, connecting the Implantmed Plus II to the W&H ioDent^® platform is easier than ever.

For a seamless and efficient treatment workflow
The connection to planning software enables the device to be automatically preconfigured with all relevant parameters before treatment.

Stay in control and never lose track
With a one-time registration of the device, the foundation is laid for a digital device log book throughout its entire lifecycle.

Always up to date
Thanks to remote update capabilities, the device always stays up to date with the latest software. New features can be unlocked directly by the end user via the ioDent^® platform.

Easy and efficient data management
By simply connecting the device, all treatment data, including ISQ values via Osstell Beacon integration, is automatically documented for each patient.

Find out more about ioDent^® from W&H at iodent.com

Implantmed Plus II Funktioner i korthet

Funktioner:		SI-2102 (Scan-Edition)	SI-2101 (trådlös)	SI-2100 (wired)
Scan funktion:			n.a.	n.a.
ioDent®-anslutning:
ioDent® Funktioner	Enhetsloggbok och servicegränssnitt:
	Fjärruppdatering av programvara:
	Förinställning:
	Digital dokumentation (implantatpass):
Modularitet:
Light-Guide:
Trådlös fotkontrolll:				n.a.
Fotkontroll med sladd:		n.a.	n.a.
Osstell Beacon connection:
Garanti:		12 månader	12 månader	12 månader

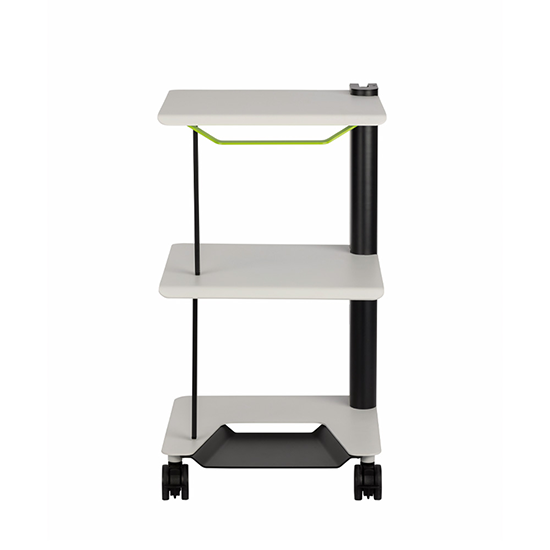

Surgical cart

Surgical cart
REF. 19724001

Kan flyttas enkelt mellan olika behandlingsrum.
Eluttag i pelaren

Fråga pris

Köp

Din kompass för morgondagens
dentalkirurgi

W&H Oral Surgery Compass fungerar som en praktisk guide genom de olika behandlingsstegen inom oral kirurgi och implantologi – från diagnos och behandling till slutlig dokumentation.

W&H Oral Surgery Compass

2. TREATMENT PLANNING

3. PROTOCOL PRESETTING

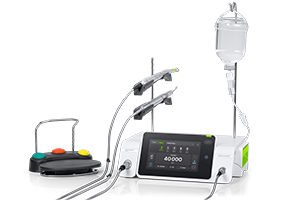

4. TREATMENT

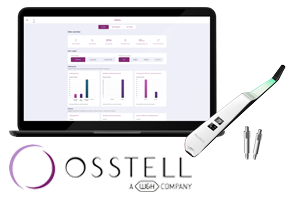

5. MONITORING & DECISION SUPPORT ^{Original Osstell technology}

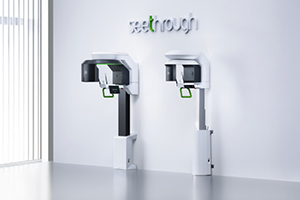

1. IMAGE ACQUISITION

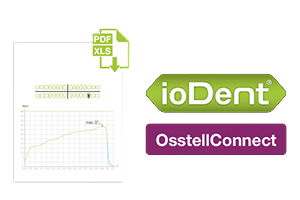

6. DOCUMENTATION

Digitala teknologier revolutionerar tandvården. Genom optimal integration av enheter, mjukvara och digitala processer stödjer W&H användarna i att göra varje behandlingssteg effektivt, säkert och patientfokuserat. W&H:s produkter arbetar i perfekt samspel, är uppkopplade och kompletterar varandra.

Paket
Implantmed Plus II Scan-Edition

Implantmed Plus II Scan-Edition

Består av:
• Enhet SI-2102 med scanfunktion
• Motor EM-19 LC med ljus och 1.8 m kabel inklusive 5 clips
• Trådlös fotkontroll S-NW3
• Stativ
• Universell hållare
• Strömkabel
• Kylslangar engångs (6 st.)

Fråga pris

Köp

Paket

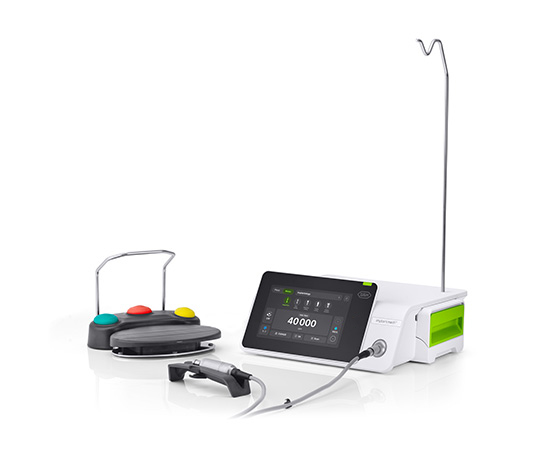

Implantmed Plus II “trådlös”

Implantmed Plus II “trådlös”

Består av:
• Enhet SI-2101
• Motor EM-19 LC med ljus och 1.8 m kabel inklusive 5 clips
• Trådlös fotkontroll S-NW3
• Stativ
• Universell hållare
• Strömkabel
• Kylslangar engångs (6 st.)

Fråga pris

Köp

Paket

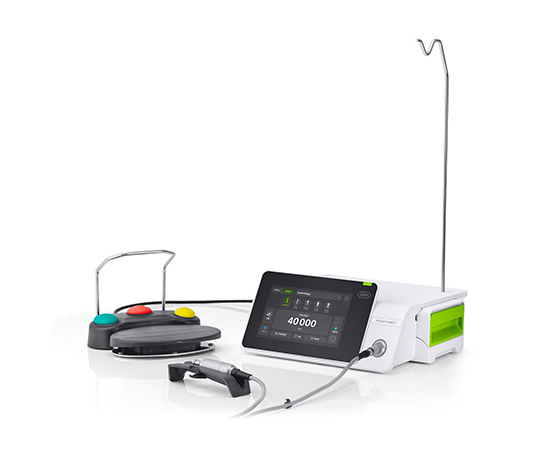

Implantmed Plus II “trådbunden”

Implantmed Plus II “trådbunden”

Består av:
• Enhet SI-2100
• Motor EM-19 LC med ljus och 1.8 m kabel inklusive 5 clips
• Trådbunden fotkontroll S-N3
• Stativ
• Universell hållare
• Strömkabel
• Kylslangar engångs (6 st.)

Fråga pris

Köp

Download Area

FAQ

Do I need a protection cap for the Implantmed/Elcomed motor?
No protection cap is needed. mer
What types of tubing can I use on with my device?
For motors with a length of 1.8 m you can use single-use tubings (04363600) or sterilizable ones (0417XXX). For the combination of Implantmed and Piezomed module, we offer a tubing with a Y-valve (08072750). You also can find the appropriate tubings in the instructions for use of the device. mer
Can other brands of tubing be used?
No, only W&H-approved irrigation tubings are permitted. This is due to specifications (material, dimensions, coolant flow), which could cause problems like leakage, insufficient cooling, or even damage to the device. mer
Is it possible to adjust the motor speed with the implant insertion program?
Yes, the torque as well as the speed can be set for implant insertion. mer
Is every Implantmed compatible with the W&H Osstell ISQ module?
Implantmed Plus control units SI-1023, SI-1015 and SI-1010 can be upgraded with the W&H Osstell ISQ module. For the new generation of Implantmed Plus II the Osstell Beacon can be connected. mer

Which motors are compatible with which Implantmed devices?

See overview table.

Motor	Implantmed Classic SI-9xx	Implantmed Plus SI-10xx	Implantmed Plus II SI-21xx
EM-19	yes	yes	no
EM-19 LC	no	yes	yes
Older motor versions	no	no	no

mer

What does the LC in EM-19 LC stand for, is there a LED in the motor?
The LC stands for light contacts. This means that we have integrated an electrical connection into our new motors. The light contacts supply our contra-angle handpieces with the “L” suffix (e.g. WS-75 L) with power, thus providing optimal light at any speed. mer
Can current contra-angles be attached to motors?
Yes. All W&H surgical contra-angles and handpieces can be attached to the motor EM-19. mer
Can the contra-angles be attached to old motors?
No. In order to ensure optimal balance, we have shortened the inner coupling length. Therefore, contra-angle handpieces with only the “L” suffix cannot be attached to older motors, but only to EM-19 and EM-19 LC. mer
Can our customers disassemble the contra-angles
Yes. At W&H the letter "S" always communicates, that the surgical contra-angle is disassemble. The letter "I" communicates, that the surgical contra-angle cannot be disassembled (e.g. WS-75 L vs. WI-75) mer

Are old cable foot controls compatible with the new unit or vice versa?

See overview table.

Foot control	Implantmed Classic SI-9xx / Implantmed Plus SI-10xx	Implantmed Plus II SI-2102	Implantmed Plus II SI-2101	Implantmed Plus II SI-2100
S-NW3 wireless foot control	no	yes	yes	no
Wired foot control S-N3	no	no	no	yes
Foot controls S-N2 / S-NW	yes	no	no	no

mer

Can Implantmed devices be retrofitted with the wireless foot control?
Implantmed Plus devices can be retrofitted. Simply plug the supplied dongle into the device and operate it using the wireless foot control. For Implantmed Plus II devices, you must decide whether you want a wireless or wired device version when purchasing. Retrofitting is not possible. mer
Piezomed module: can devices be retrofitted on the market?
Yes, devices can be retrofitted by users. The following combinations are possible: Implantmed Plus with Piezomed Plus module or Piezomed Classic module. Implantmed Plus II with Piezomed Module Plus II. mer
Piezomed module: are the handpieces of the modules SA-40 and SA-40 L compatible with the Piezomed device SA-320?
No, they are not compatible. mer
Do I need a connection to ioDent® to use Implantmed Plus II?
No, not for basic use of the device. However, connecting to ioDent® offers additional features. For example, users can then perform software updates themselves. mer
Can I connect the Implantmed Plus II to my practice Wi-Fi?
Yes, the device supports any encrypted 2.4GHz Wi-Fi network. mer
Can I connect the Osstell Beacon to the Implantmed Plus II?
Yes, the Osstell Beacon can be connected via a USB-A/USB-C adaptor. mer
Can I update my Implantmed Plus II software later?
Yes, simply create an ioDent® account and connect your device to it. You will then be shown available software updates for your device. mer
Will the implants I use be detected during scanning?
All medical devices with a valid code are displayed on the screen after scanning. When connected to ioDent®, the materials are displayed in plain text (name, serial number, etc.) in the patient documentation. mer
Is it possible to use the Implantmed Classic in combination with the wireless foot control?
No, the Implatmed Classic can only be operated via a wired foot control. mer
Vilka är de främsta fördelarna med programvaran SICAT Implant?
Vid frågor om själva SICAT-systemet, vänligen kontakta SICAT-medarbetare som kan besvara specifika frågor. Detaljerade instruktionsfilmer finns tillgängliga på ecademy.sicat.com. Generellt sett förstärker SICAT fördelarna med planering och behandling genom snabb digital vägledning. mer
Vad händer om jag definierar ett implantat som kan planeras i SICAT Implant, men det inte finns något motsvarande protokoll i ioDent®?
I ioDent® får du information om att protokollet inte är tillgängligt och att standardprotokollet för Implantmed också är inställt för behandlingen. mer

mer

Bruksanvisning

Implantmed Plus II

Elektromotor EM-19/EM-19 LC

Fotkontroll S-NW, S-N2, S-N1, S-NW3, S-N3

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
