Lisa
-
Teon
Ny nivå av reprocessingTeon är en effektiv diskdesinfektor som erbjuder den bästa rengöringen och desinfektionen för din tandläkarpraktik. Teon förbättrar flödet, minskar både tidsåtgång och risk för korskontamination.
Offers:
- Hög kammarkapacitet
- Lättanvänd display
- Hög rengöringsförmåga
- Skonsam tack vare specifika program
- Stort tillbehörssortiment
- Rengöring av ihåliga produkter
- Spårbarhet och anslutningsbarhet med Ethernet-modul
- Driftsäker med värmeelementen utanför kammaren
Teon +
Högsta nivån av reprocessingTeon+, W&H´s diskdesinfektor i premiumsegmentet, garanterar de mest krävande klinikerna ett utmärkt automatiskt rengörings- och desinfektionssystem. Teon+ erbjuder full spårbarhet och dess innovativa aktiva lufttorkningssystem tar resultatet till en ny nivå av kvalitet och prestanda.
Offers:
- High drying quality for sensitive instruments
- Active air-drying with HEPA filter
- High chamber capacity
- Ease of use display
- High cleaning performance
- Gentle on material thanks to dedicated programs
- Large selection of accessories
- Cleaning of the hollow body
- Traceability and connectivity through Ethernet module
- Reliability thanks to heater elements outside the wash and gapless chamber
Enkel att användaEase of use

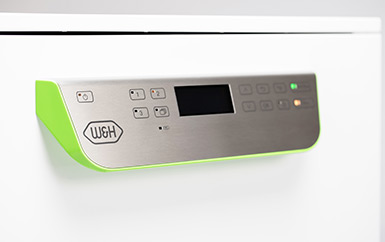

The modern design and intuitive user guidance make it particularly easy to operate in the demanding everyday reprocessing routine. The control panel is easy to operate and also serves as a door opener.
Hög kvalitetHighest quality

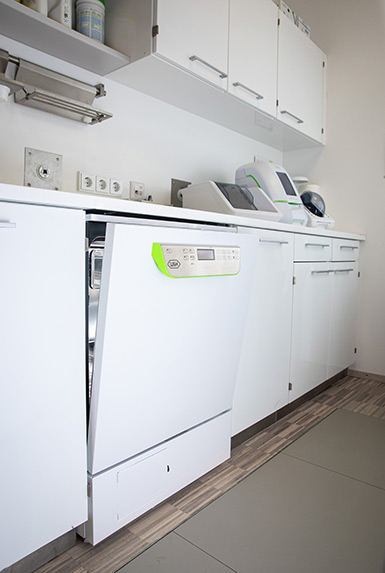

The thermal washer disinfectors are distinguished by their high-quality performance and thus ensure a successful, holistic cleaning process for dental instruments. Thanks to their modern, elegant design, they can also be perfectly integrated into your reprocessing room.

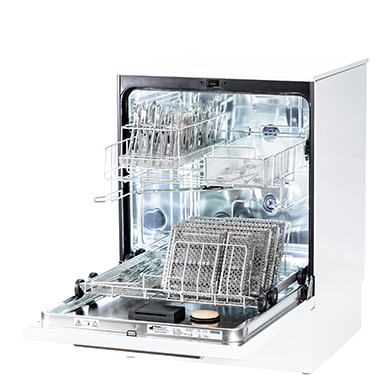

Individual insert packsIndividual insert packs
Reprocessing can be as simple and efficient. Choose from a wide range of accessories and use our special packages:
- With the “starter pack” you have the perfect range of basic equipment.
- With the “injection pack”, you are ideally equipped especially for handpieces also.
More information on the accessories list.

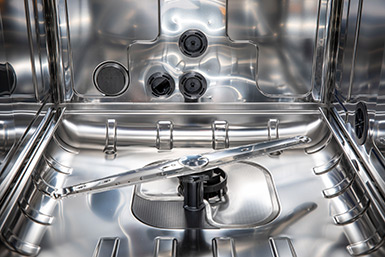

SafetySafety
The integrated spray arm monitoring enables excellent reprocessing results. The speed variable pump increases/decreases the pressure according to the step in the reprocessing process. The filter system removes dirt particles to prevent obstacles for your instruments.
Convenience and ergonomicsConvenience and ergonomics

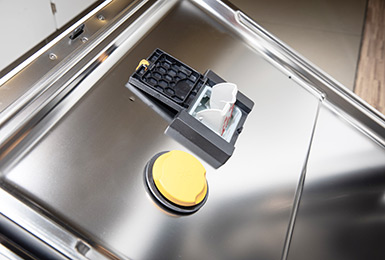

The salt container integrated into the door ensures easy and convenient refilling. Thanks to the ergonomics concept, no equipment needs to be removed.

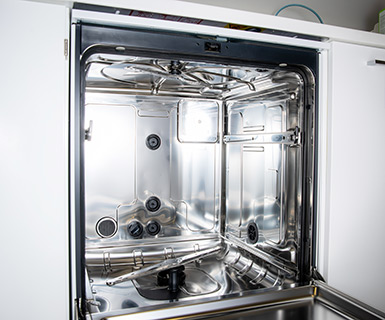

Hygienic rinsing roomHygienic rinsing room

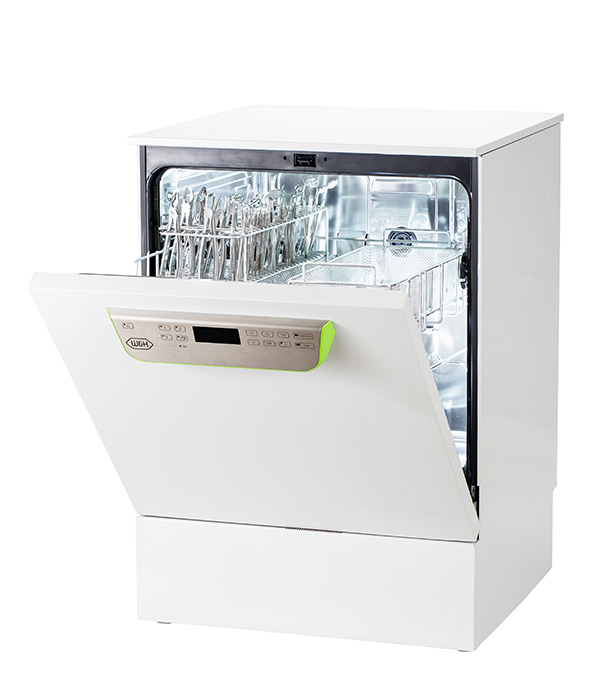

The rinsing chamber enables higher throughput with excellent hygiene purity. In addition, the optimal size allows a higher capacity per batch.
![Teon]( "Teon")

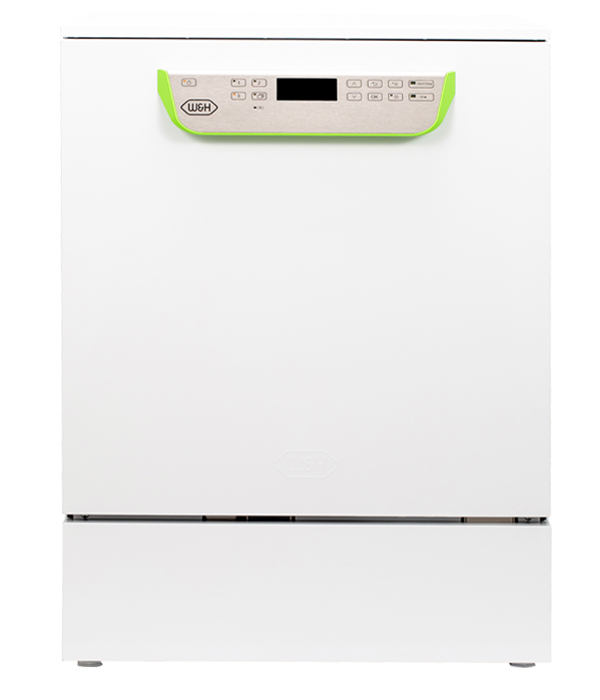

Teon
Teon säljs utan tillbehör, så du kan utrusta den efter dina behov. Mer information under tillbehör & förbrukning
Teon
REF 19860060version för Danmark, Finland, Norge och Sverige

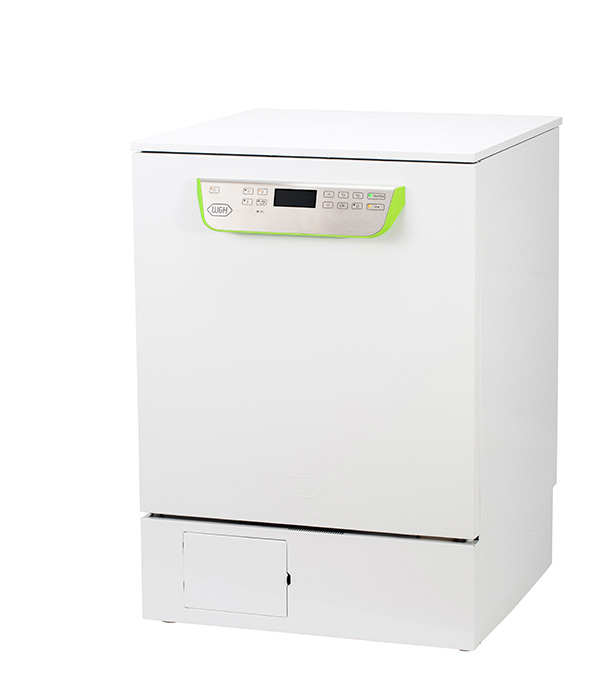

![Teon +]( "Teon +")

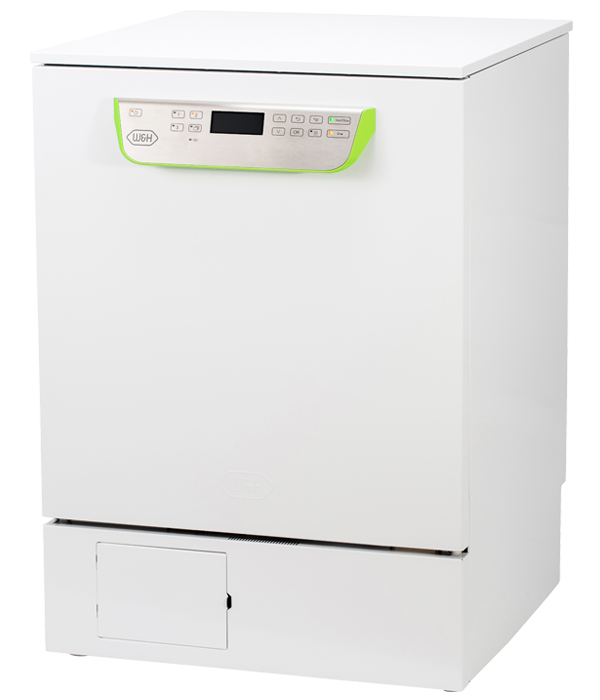

Teon +
Komplettera Teon + med tillbehören du verkligen behöver. Enheten säljs tom, men kan utrustas för dina behov. Mer information under tillbehör & förbrukning
Teon +
REF 19870060version för Danmark, Finland, Norge och Sverige
Download Area
Bruksanvisning
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videoinstruktioner
-
Technical data
Type: Teon Teon + Power supply: 400 V AC; 50–60 Hz/230 V AC; 50–60 Hz
Current: 16 A Overall dimension
(w x h x d):600 x 835 x 600 mm Space required for installation
(w x h x d):598 x 835 x 1.200 mm (in total with opened-door) Weight (empty): 74 kg 78 kg Smart Dry: • – Dry Plus: – • HEPA filter: – • Cold water connection: • • Hot water connection: – • Demineralized water connection: • • Auto-close – automatic door lock: • • No. of integrated dispenser pumps for liquid products: 2 1 In-door dosing device for rinse: • • Salt tank – front door access: • • Number of program: 5 6 No. of customizable program: 2 2 Cycle time (time for Vario TD Dental program): 49' 74'
including active
air-dryingThe thermal washer disinfectors Teon and Teon + were designed, certified and validated with the most stringent directives and standards:
93/42/EEC Medical Device Directive EN 61010-2-040 Safety requirement DIN EN ISO 15883-1/2 Washer-Disinfector EN 61326-1 Electromagnetic compatibility - EN1717 Protection against pollution of potable water
