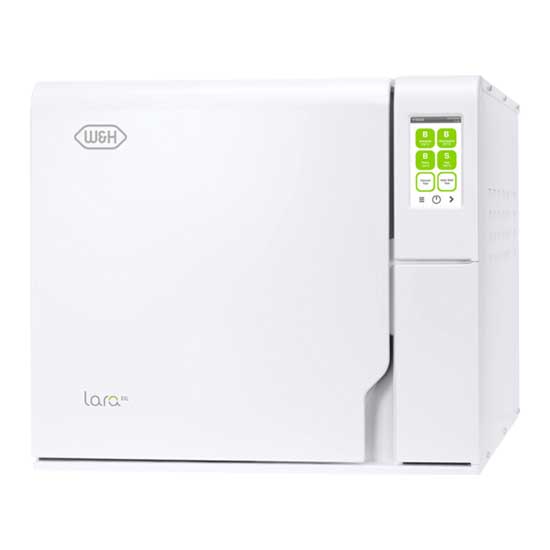

Lara XXL – maximum capacity, minimum dimensions

Lara XXL sterilizer sujet

Surprisingly spacious chamber

Compact external dimensions and a 38-litre XXL chamber characterise the Lara XXL sterilizer and make it surprisingly spacious. Easy to position on a standard worktop, the device not only impresses with its high loading flexibility and simple navigation, but also offers much more.

AR/3-D

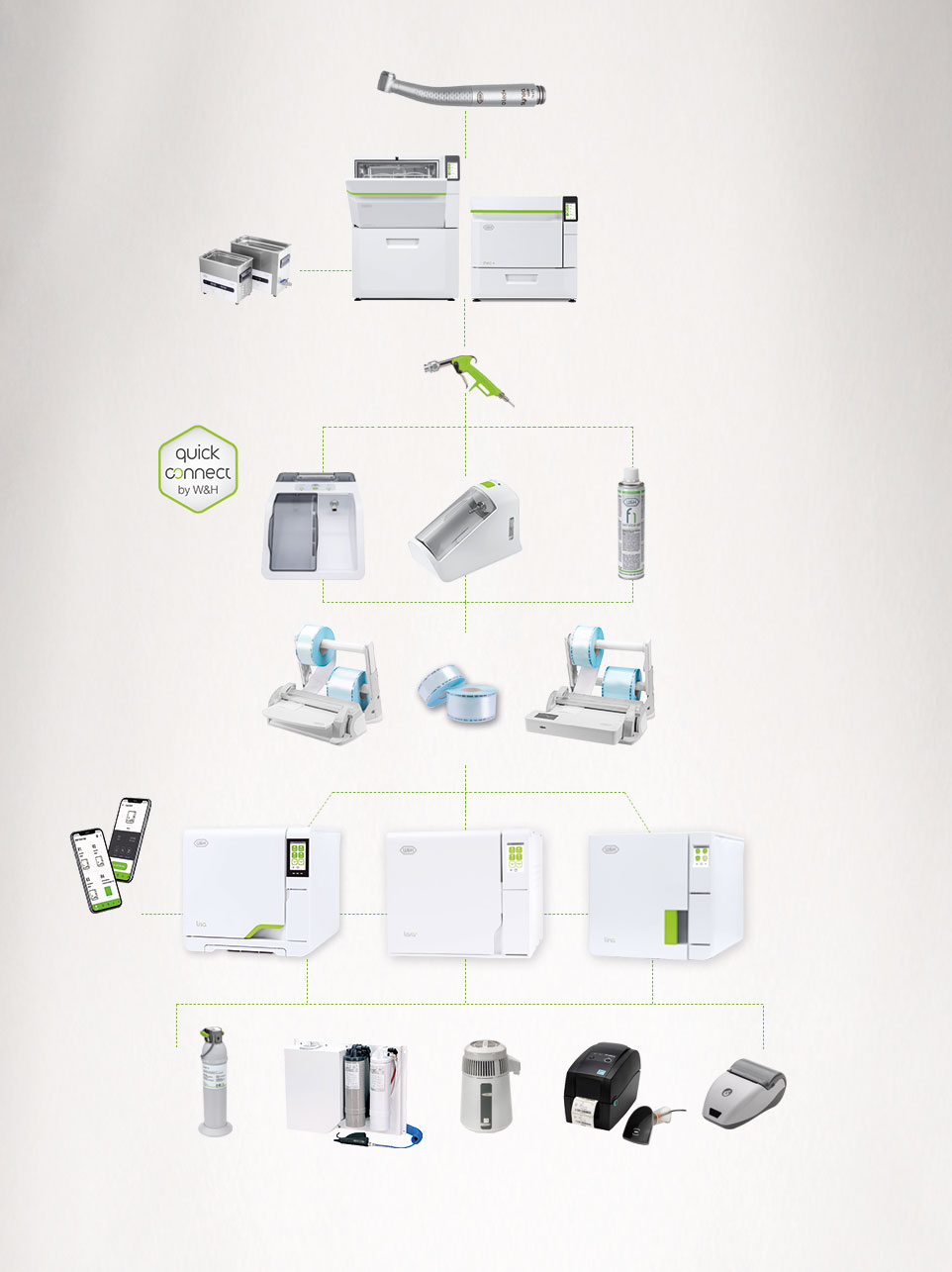

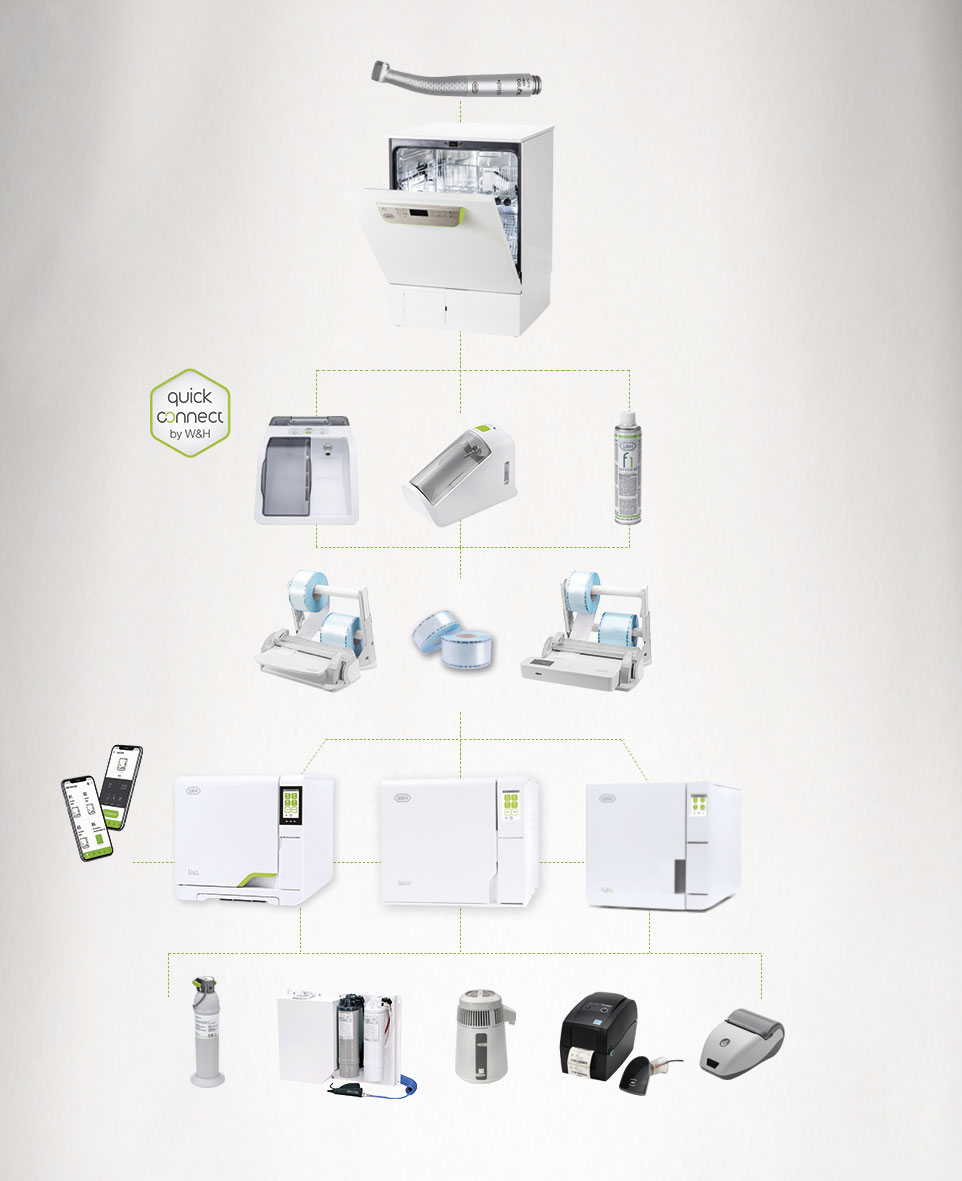

System overview

Sterilization, Hygiene & Maintenance

Sterilization, Hygiene & Maintenance

System Overview

    • XXL capacity – thanks to 38 litre chamber


      Large, larger, largest. Despite its compact outer dimensions, the new Lara XXL sterilizer is surprisingly large, with a chamber size of 38 litres.

    • Wide variety of loading options

      Higher efficiency due to XXL capacity


      Lara XXL is able to reprocess up to 12 kg of containers and 10 kg of wrapped instruments, which is about twice the capacity of a standard sterilizer.
      Thanks to its chamber size and its 6-tray rack, it is
      extremely flexible.

    • Compact outer dimensions


      Due to its compact dimensions, Lara XXL is easy to install and without modification of the reprocessing room.
      A standard worktop with a depth of 60 cm is all you need to set up the XXL sterilizer.


      • Eco Dry technology

        XXL performance thanks to Eco Dry


        The advanced patented Eco Dry technology adjusts the drying time to the mass of the load. This reduces the cycle time, increases the life span of the instruments and optimises the energy consumption.

      • High capacity and best cycle times in its performance class


        With Lara XXL, large loads can be quickly and perfectly sterilized: 10 kg of wrapped or unwrapped loads, and 12 kg of containers.

        1: Wrapped 10 kg
        2: Unwrapped 10 kg
        3: Container 12 kg

        • Time saving

          Lara XXL is able to automatically adjust the drying time for small loads (0.5 kg), average loads (3 kg) and full loads. Thus, a 3 kg load
          can be reprocessed in about 40 minutes using a type B cycle.

        • Extends service life

          Automatic adjustment of the drying time depending on the load reduces the heat exposure time. This extends the service
          life of your instruments.

        • Energy saving

          Optimising the drying time means less energy consumption. This makes Lara XXL the
          ”green solution“.

        • Colour touch display

          XXL usability thanks to easy operation


          The Lara XXL’s large colour touch display provides intuitive access to a smart menu structure, offering a wide range of options to make your daily workflow easier, faster, and more efficient.

          The intelligent menu structure of the new Lara XXL sterilizer provides extraordinarily high operating comfort: you can navigate to the different functions intuitively and quickly using the large colour touch display.

        • Easy manual filling or …


          An integrated high-capacity funnel prevents water splashes during the filling process.


          … automatic water filling

          An automatic water filling valve allows you to connect a demineralization system. Manual filling and draining are no longer necessary.


          • XXL connectivity thanks to advanced technology

            The technical expertise makes the difference. The Lara XXL sterilizer is based on a sophisticated technical concept that offers future-oriented possibilities and significantly simplifies your workflow.

          • Enhanced traceability

            The documentation is automatically saved via a high-capacity USB stick.

            The barcode label printer provides additional support on traceability thanks to the opportunity for linking cycle, sterilization package and patient.

            The cycle report printer ensures adequate paper documentation of the cycle.

            Wi-Fi and LAN connections offer the possibility to download cycle reports directly to any PC or smart device.


            • ioDent<sup>®</sup>

              ioDent®

              With ioDent®, W&H brings the Internet of Things (IoT) directly into you practice – opening up new dimensions in efficiency, convenience, and digital connectivity. The cloud-based platform intelligently connects your W&H devices, making them an active part of your digital workflow.

              Benefit from automated documentation of cycle protocols and routine tests, real-time monitoring, central device management and much more.

              Discover all ioDent® features

            • W&H Steri App

              W&H Steri App

              The W&H Steri App is an advanced smartphone and tablet application that allows controlling and remote monitoring of the sterilizer in your dental practice.

              Main features:
              * Remote control of your sterilizer
              * Advanced traceability with EliTrace
              * Report creation
              * User management
              * Backup functionality

              W&H Steri App


              • XXL upgradeability thanks to Activation Codes

                Needs and requirements can change.
                Prepare yourself now: with the Activation Code system, additional functions can be activated to reflect your changing practice needs and meet future requirements.

                With the EliTrace feature,
                the sterilization process can be traced and documented down to the individual instrument or kit. Without any additional software or computer.
                The quick cycle for in-between: The Fast Cycle allows the sterilization of unwrapped instruments including handpieces in about 20 minutes

                Six steps to your customised sterilizer:

                1. Purchase the Activation Code of your choice from your local approved dental supplier.
                2. After receiving the related login code, go to activation.wh.com
                3. Specify this code along with the serial number and model of your sterilizer.
                4. Your individual, secure Activation Code is generated.
                5. Enter this code in the menu of your sterilizer.
                6. The feature is available.

                ACTIVATE FEATURE NOW!

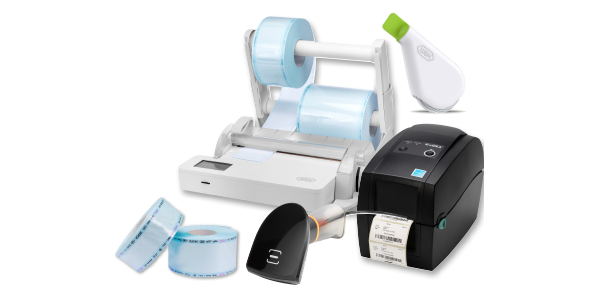

                Appropriate accessories

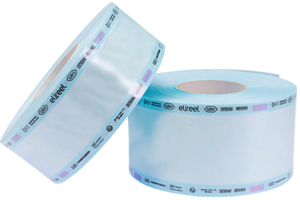

                EliReel

                W&H‘s sterilization reels ensure excellent drying quality, resistance and an easy-to-read steam indicator. These features simplify both the sealing and sterilization processes and also improve safety in the clinic.
                More Info!

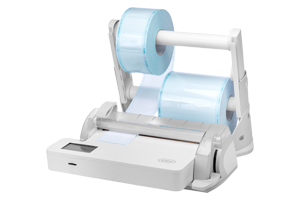

                Seal2 and SealVal2

                The W&H sealer creates a 12 mm wide seal in just two seconds without the risk of burning the sterilization package. The absolute hermetic and strong protection of the sterile goods from environmental influences guarantees continuing sterility. More Info!

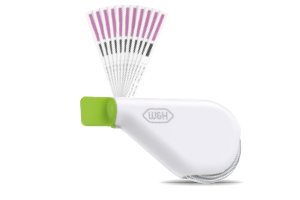

                Helix Test

                The Helix test ensures optimum process control for type B sterilizers. The QR code on the test strips enables full traceability and easy use with eLog, the digital logbook.
                More Info!

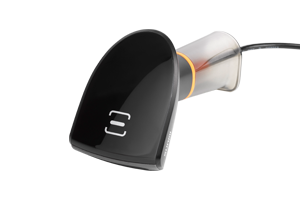

                Barcode scanner

                This enables you to scan labels into patient files.

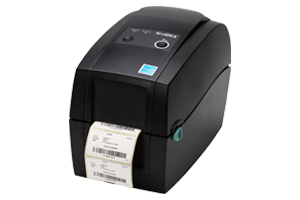

                Barcode label printer

                The label printer can be connected to the sterilizer to print barcodes. In combination with the integrated data logger, it improves your traceability system. The label printer is a quick and easy tool to link the sterilization cycle with patient files.
                More Info!

                • Environmentally friendly packaging

                  The environmentally friendly packaging is completely reusable and recyclable. Plastic components were reduced to a minimum. For 99% of its weight, the new package is made of cardboard and other fully biodegradable substances.



                  W&H AIMS hygiene workflow

                  Sterilization, hygiene, and maintenance are increasingly important in the dental practice. The new Lara XXL sterilizer is an optimally matching part of W&H´s wide range of products for the safe reprocessing of instruments, contra-angle and turbine handpieces according to the recommended, holistic W&H AIMS hygiene workflow.

                  W&H AIMS

                  Product & consumables

                  Lara XXL sterilizer

                  Lara XXL sterilizer

                  supplied with rack, 6 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test

                  Lara XXL RIS-338 (220 V)
                  REF 19936110

                  Chamber size 38 litre

                  Request Price

                  Download Area

                  FAQs

                  Instructions for use

                  Instructions for use
                  Maintenance Sheet
                  Lara XXL RIS-338 2025

                  Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

                  Video Tutorials

                  For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

                  Accept

                  Downloads

                  Service

                • Lara XXL sterilization cycle

                  Sterilization cycle: B Universal 134 B Prion 134 B Universal 121 S Fast 134
                  (optional)
                  Temperature: 134°C 134°C 121°C 134°C
                  Holding time (minutes): 5' 30" 20' 30" 20' 30" 3' 30"
                  Total cycle duration
                  (minutes)
                  including drying:                   		Automatic from Typical load Automatic from Typical load Automatic from Typical load Automatic
                  from
                  32'–71' 42' 30" 47'–86' 57' 30" 47'–90' 60' 20'–28'
                  Load type: All types of load (1) Solid items, Simple hollow items (Hollow B), Specific load: dental load, medical load (2) and handpieces
                  Max. load: Instruments: 10 kg/porous: 3 kg/containers: 12 kg Instruments: 3 kg
                  Test cycles: Helix/Bowie and Dick/Vacuum
                  Item supplied with rack, 6 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test

                  (1) Excluded liquid
                  (2) Dental load according to ISO 17665-3; for medical load is intended to load up to grade 7 steam penetration according to ISO 17665-3

                  Lara XXL

                  Trade name:
                  Type:                   		Lara XXL
                  RIS-338
                  Chamber size: 38 l
                  Power supply: 200–240 V AC; 50/60 Hz; 12 A single phase
                  Power consumption: 2.4–2.88 kW
                  Overall dimension (w × h × d): 492 mm × 455 mm × 797 mm
                  Weight (empty): 61 kg
                  Main/used water tanks: 4.8 l/5.1 l
                  Working range: 5 to 10 cycles
                  Usable space in chamber (w × h × d): (3) 230 × 230 × 560 mm
                  Connection types: 5 USB ports, 1 Ethernet port, automatic water filling kit

                  (3) Usable space is referred to standard rack configuration.

                  Lara XXL sterilizers were designed, certified and validated with the most stringent directives and standards:
                  2017/745
                  Medical Device Regulation                   		IEC 61326-1
                  Electromagnetic compatibility                   		IEC 61770
                  Electric appliances connected to the water mains
                  2019/19/EU
                  Waste Electrical and Electronic Equipment                   		IEC 61010-1
                  Safety requirements                   		EN 13060
                  Small steam sterilizers
                  2014/68/EU
                  Pressure Equipment Directive                   		IEC 61010-2-040
                  Specific requirements for steam sterilizer                   		> The sterilizer can be validated according
                  to EN ISO 17665-1
