Teon and Teon +

Top performer for high cleaning standards

The new W&H thermal washer disinfectors, Teon and Teon +, provide high quality benefits for efficient and effective cleaning and disinfection of your dental instruments.

Sterilization, Hygiene & Maintenance

Sterilization, Hygiene & Maintenance

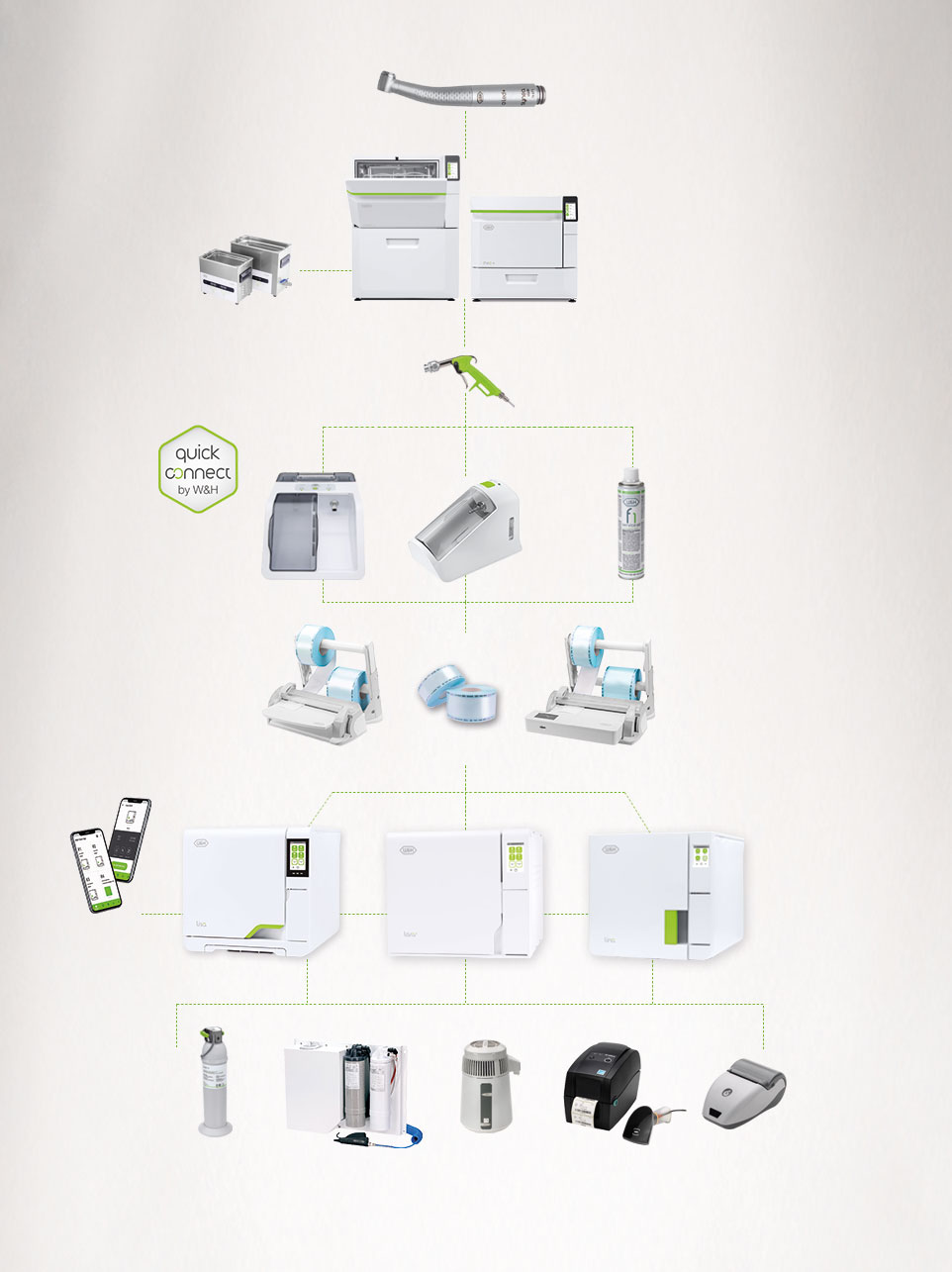

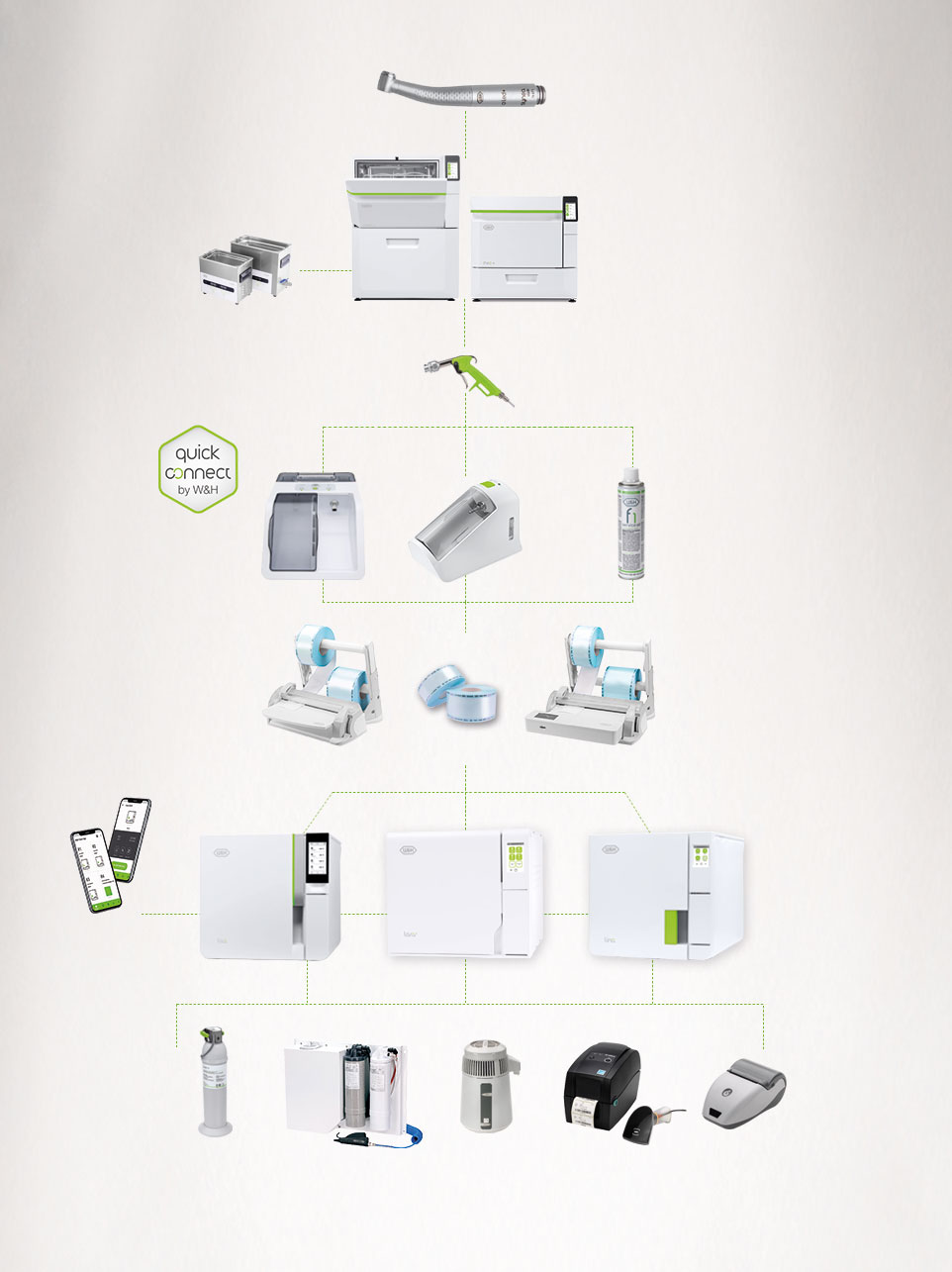

System Overview

Lisa



  • Teon

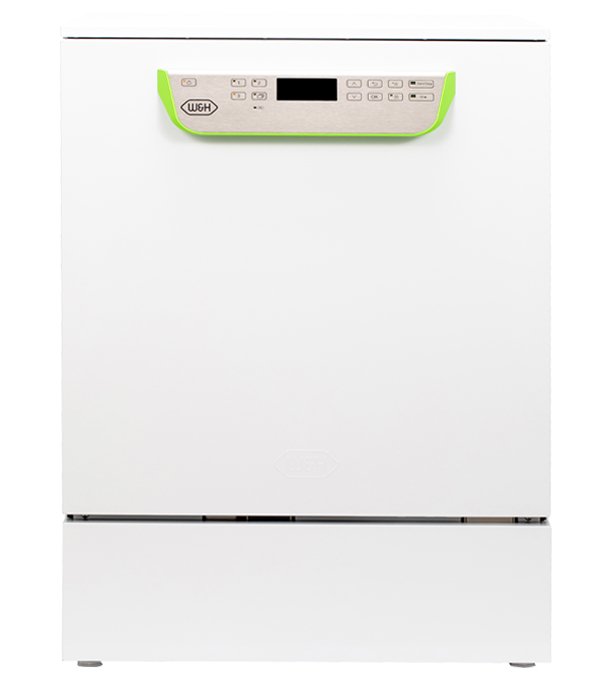

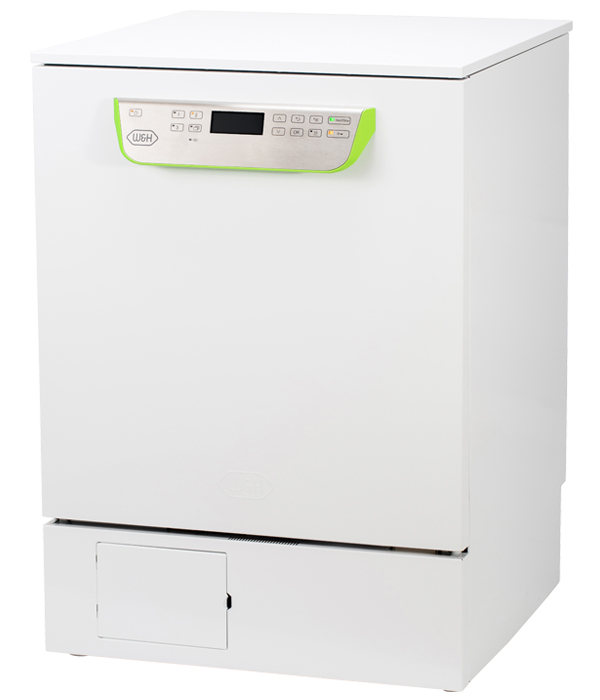

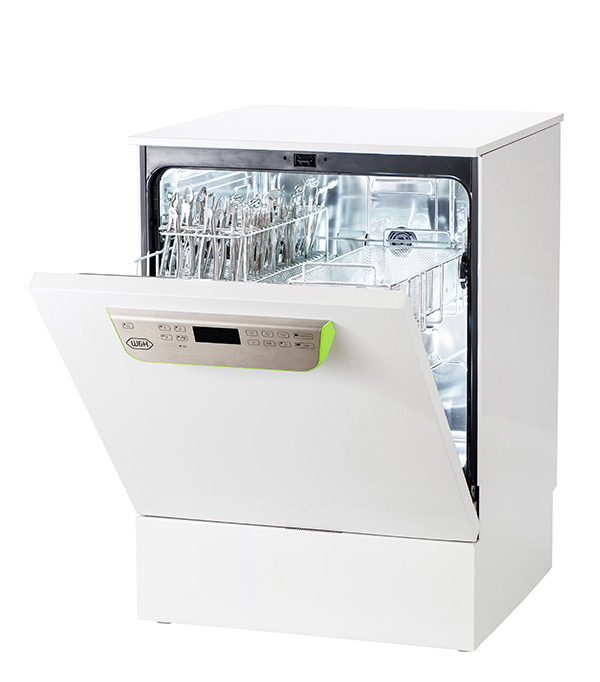

    Teon
    Next step for reprocessing

    The new Teon is a highly efficient thermal washer disinfector. Thanks to its dedicated programs it offers the best cleaning and disinfection for your dental practice. Teon assists in making your infection control protocol easy and efficient, reducing the reprocessing time and increasing consistent protection against cross contamination whilst reducing the risk of sharps injuries.

    Offers:

    • Large chamber capacity
    • Easy to use display
    • Exceptional cleaning performance
    • Gentle on your instruments thanks to a range of dedicated programs
    • Large selection of accessories
    • Allows for cleaning of hollow bodied instruments and handpieces
    • Traceability and connectivity through Ethernet module
    • Reliability thanks to the heater elements being situated outside the wash chamber



    Teon +

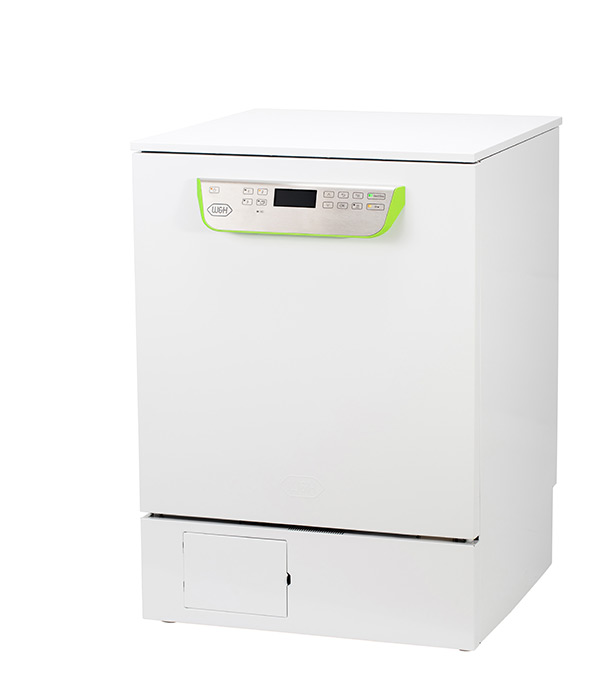

    Teon +
    The premium approach for reprocessing

    Teon +, the premium W&H thermal washer disinfector, ensures that even the most demanding clinics are equipped with an outstanding automatic cleaning system for instruments. Teon + offers full traceability to meet current regulatory requirements. Its innovative active air-drying system offers a new standard in terms of quality and performance.

    Offers:

    • Top drying quality for sensitive instruments
    • Active air-drying with HEPA filter
    • Large chamber capacity
    • Easy to use display
    • Exceptional cleaning performance
    • Gentle on material thanks to dedicated programs
    • Large selection of accessories
    • Allows for cleaning of hollow bodied instruments and handpieces
    • Traceability and connectivity through Ethernet module
    • Reliability thanks to the heater elements being situated outside the wash chamber
    Ease of use

    Ease of use

    //a.storyblok.com/f/45617/385x242/050e3ef746/control-panel-teon.jpg

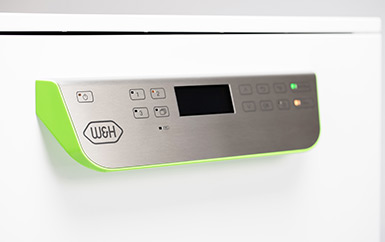

    The modern design and intuitive user guidance make it particularly easy to operate in the demanding everyday reprocessing routine. The control panel is easy to operate and also serves as a door opener.
    Highest quality

    Highest quality

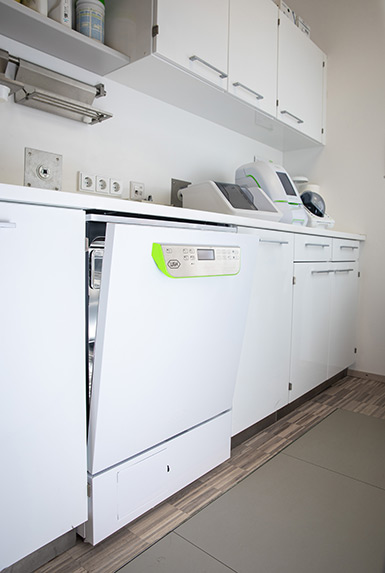

    //a.storyblok.com/f/45617/385x573/53a6d1f048/reprocessing-room-teon.jpg
    The thermal washer disinfectors are distinguished by their high-quality performance and thus ensure a successful, holistic cleaning process for dental instruments. Thanks to their modern, elegant design, they can also be perfectly integrated into your reprocessing room.

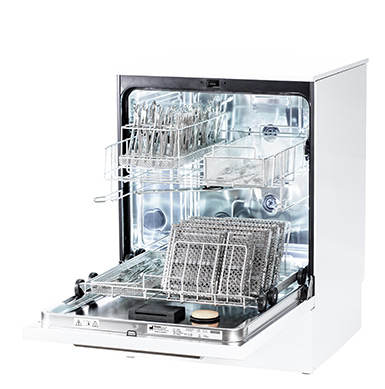

    Individual insert packs

    Individual insert packs

    Reprocessing can be simple and efficient. In addition to our two starter packs you can choose from a wide range of accessories.

    - Standard Starter Pack provides all you need to get started.
    - Injector Starter Pack is ideal for getting started but includes the handpiece accessories.
    More information on the accessories list.
    //a.storyblok.com/f/45617/385x389/2deab2e770/insert-packs-teon.jpg
    Safety

    Safety

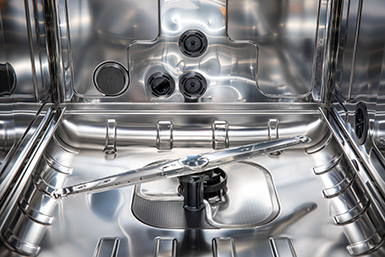

    //a.storyblok.com/f/45617/385x257/90bcbc67ab/spray-arm-teon.jpg
    The integrated spray arm monitoring enables excellent reprocessing results. The speed variable pump increases/decreases the pressure according to the step in the reprocessing process. The filter system removes dirt particles to prevent obstacles for your instruments.
    Convenience and ergonomics

    Convenience and ergonomics

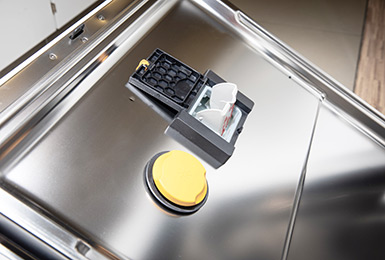

    //a.storyblok.com/f/45617/385x260/868021f5a3/refiling-teon.jpg
    The salt container integrated into the door ensures easy and convenient refilling. Thanks to the ergonomics concept, no equipment needs to be removed.
    Hygienic rinsing room

    Hygienic rinsing room

    //a.storyblok.com/f/45617/385x320/44ed09ce09/hygienic-rinsing-room-teon.jpg

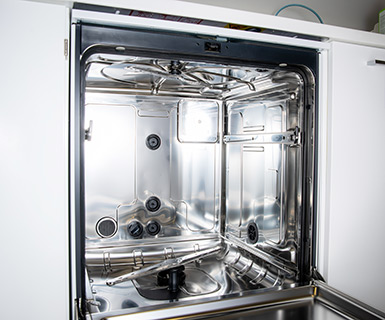

    The rinsing chamber enables higher throughput with excellent hygiene purity. In addition, the optimal size allows a higher capacity per batch.
    • »accessories«

      Tailor the Teon or Teon+
      to your needs

      The Teon and Teon+ is available with either a Starter Pack or Injector Pack, optional accessories are also available to further tailor the device to your needs.

    • option 1

      Upper basket




      The upper offers flexibility for inserts and is
      height adjustable.

    • option 2

      Insert 1/3 mesh tray




      Intended for different instruments and for
      flexible use.

    • option 3

      Lower basket




      For holding mesh trays as well as
      various inserts.

    • option 4

      Insert 1/2 mesh tray




      For various instruments, position in upper or lower basket.

    • option 5

      Insert 2/5
      for instruments




      Different compartments for optimum
      loading of upright instruments.

    • option 6

      Insert 1/2
      for trays and cassettes



      Equipped with different compartments for optimum loading.

    • additional options 7–8

      Upper basket
      with injector nozzles



      For various instruments with injector nozzles.



      Quick-Guide: How to use Teon/Teon + software

      Learn how to install and use the software for the Teon/Teon + in the Quick-Guide.

      Please note: Software requires Java Virtual Machine JRE version 8 to be able to operate on your computer!




      Teon

      The device is sold with either a Starter Pack or Injector Pack. Additional optional inserts are available to tailor the Teon to your practice needs.

      Teon

      Version for United Kingdom and Ireland
      Teon Unit with standard model:
      Starter Pack - Ref: 90000342
      Injector Pack - Ref: 90000341

      Teon +

      The device is sold with either a Starter Pack or Injector Pack. Additional optional inserts are available to tailor the Teon+ to your practice needs.

      Teon +

      Version for United Kingdom and Ireland
      Teon+ Unit with standard model:
      Starter Pack - Ref: 90000345
      Injector Pack - Ref: 90000344

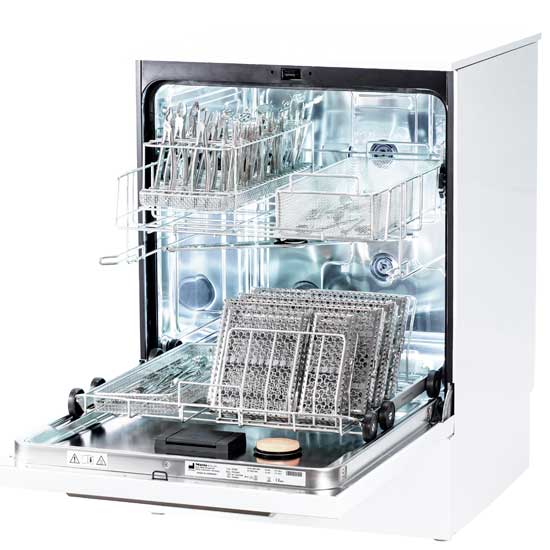

      Starter Pack

      Starter Pack Contents

      A102 Upper basket
      A151 Lower basket
      E337/1 Insert
      E523 Insert
      Ethernet Module XKM 3000L

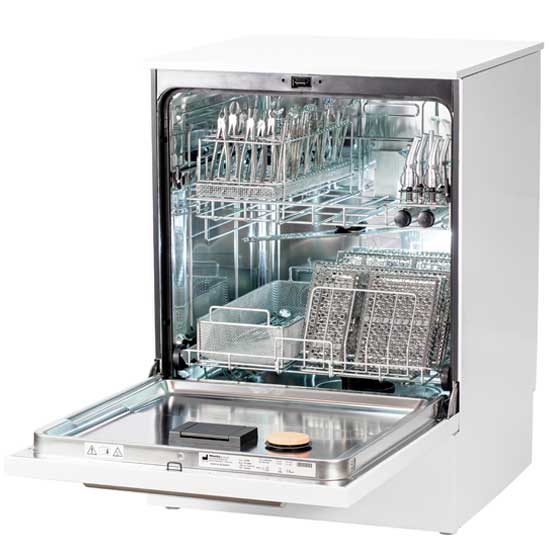

      Injector Pack

      Injector Pack Contents

      A105/1 Upper basket
      A836 Dental nozzle set
      A151 Lower basket
      A803 Handpiece holder x 2
      A801 Adaptor x 2
      AUF 1 Adaptor x 2
      ADS 1 Silicone Adaptor x 2
      E337/1 Insert
      E523 Insert
      Ethernet module XKM 3000L

      Download Area

      Instructions for use

      Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

      Video Tutorials

      For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

      Accept
    • Technical data

      Type: Teon Teon +
      Power supply: 400 V AC; 50–60 Hz/230 V AC; 50–60 Hz
      Current: 16 A
      Overall dimension
      (w x h x d):
      600 x 835 x 600 mm
      Space required for installation
      (w x h x d):
      598 x 835 x 1.200 mm (in total with opened-door)
      Weight (empty): 74 kg 78 kg
      Smart Dry:
      Dry Plus:
      HEPA filter:
      Cold water connection:
      Hot water connection:
      Demineralized water connection:
      Auto-close – automatic door lock:
      No. of integrated dispenser pumps for liquid products: 2 1
      In-door dosing device for rinse:
      Salt tank – front door access:
      Number of program: 5 6
      No. of customizable program: 2 2
      Cycle time (time for Vario TD Dental program): 49' 74'
      including active
      air-drying

      The thermal washer disinfectors Teon and Teon + were designed, certified and validated with the most stringent directives and standards:

      93/42/EEC Medical Device Directive EN 61010-2-040 Safety requirement DIN EN ISO 15883-1/2 Washer-Disinfector
      EN 61326-1 Electromagnetic compatibility - EN1717 Protection against pollution of potable water
