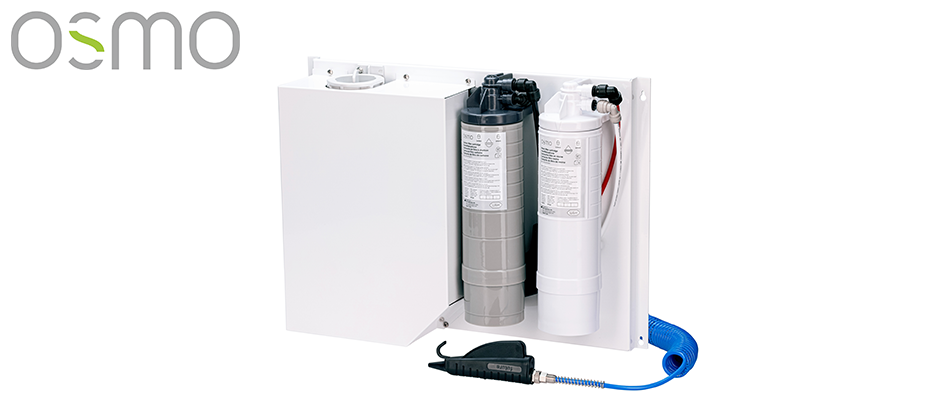

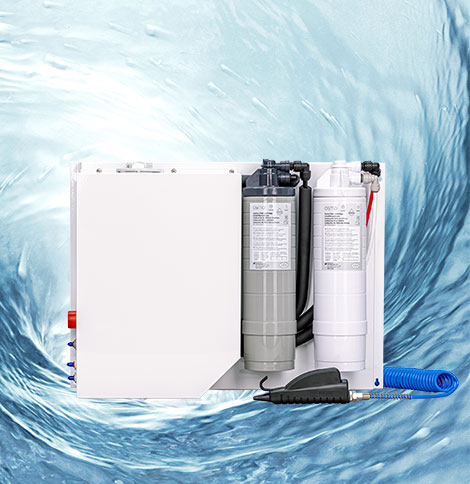

Purified water for optimal results
The system connects to mains water and produces a large quantity of demineralized water free from minerals and contaminants. It automatically supplies and drains water for a number of sterilizers simultaneously.
Your advantages at a glance
- The automatic water filling function and direct drainage makes The Osmo easy and quick to use
- Arguably the most cost-effective solution for a busy practice running multiple cycles
- In compliance with EN 1717

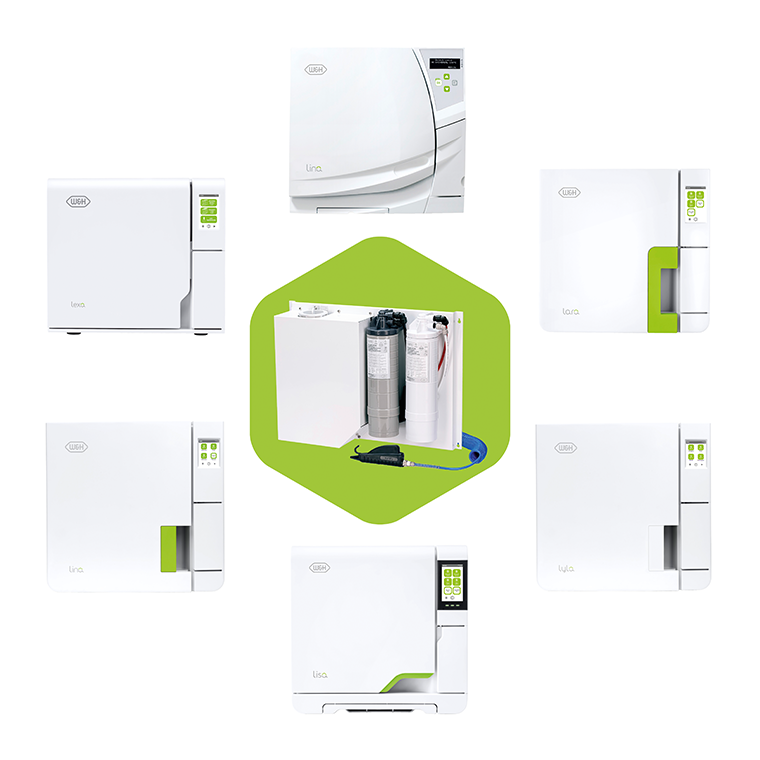

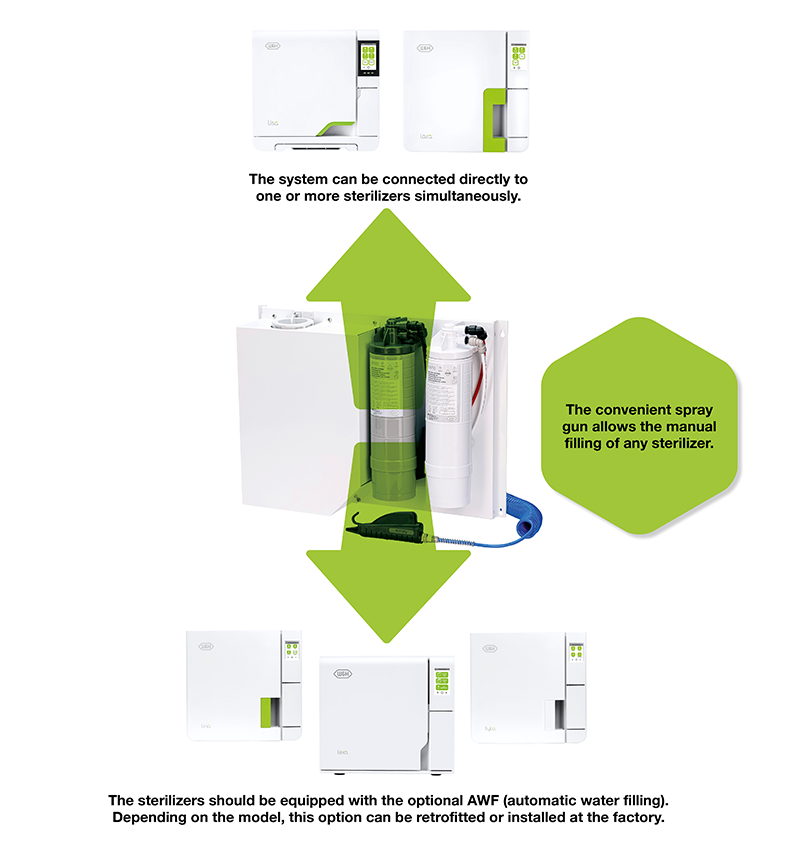

Do you have more than one sterilizer? Osmo supplies multiple devices simultaneouslyConnects to different sterilizer models
The Osmo is the ideal solution in areas with poor water qualityQuality of water produced
Osmo is designed to supply up to 6 sterilizers simultaneously. It produces approx. 30 litres of demineralized water per hour. The water storage tank supplied holds up to 7 litres of demineralized water.
The quantity of water produced per filter cartridge depends on the quality and hardness of the local water.

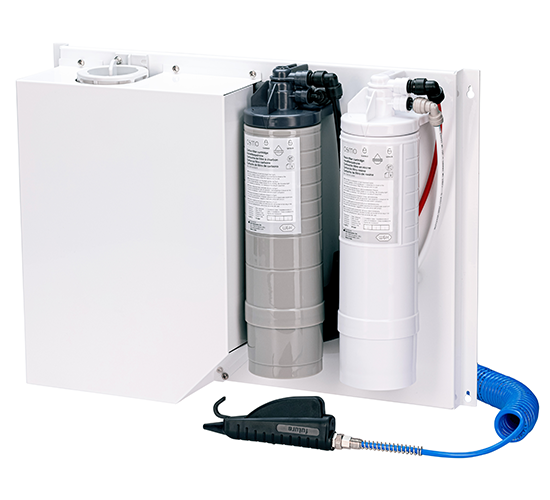

Osmos filter change is unbelievably easyTechnical description
Device dimensions:
Modular housing (W x H x D):
37 cm x 52 cm x 13 cm

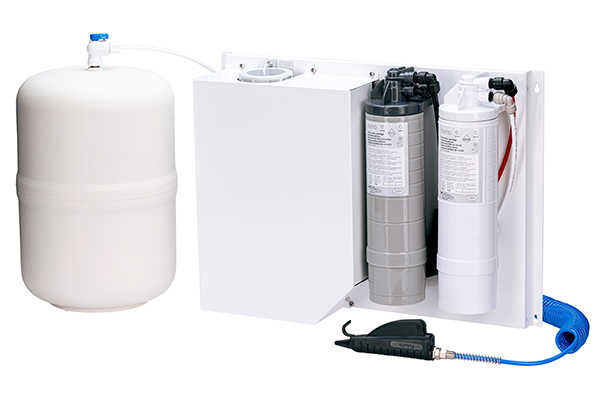

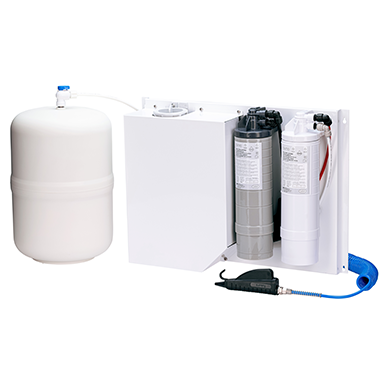

Water storage tank:
Ø 23 cm x 35 cm high (7 litres)
The water storage tank has a volume of 7 litres.

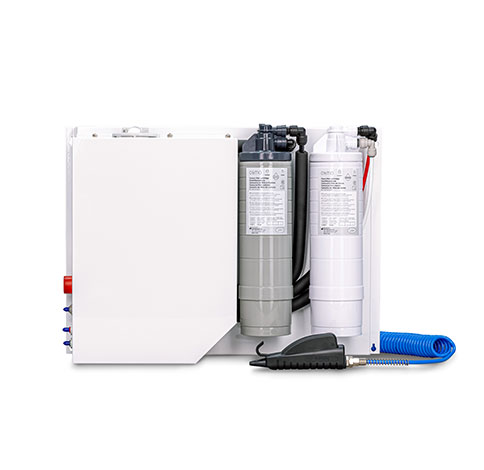

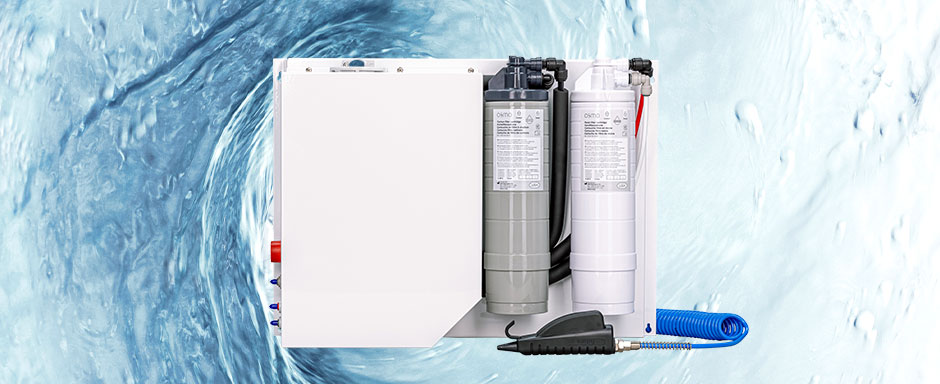

![Osmo]( "Osmo")
Osmo
Automatic filling
Osmo
REF 19721134Download Area
FAQs
-
What water quality should I use with my Lisa/Lina?

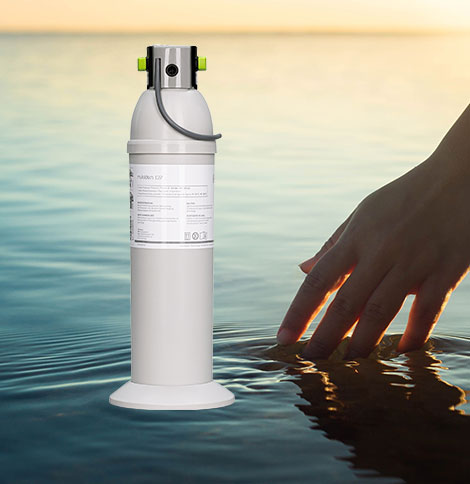

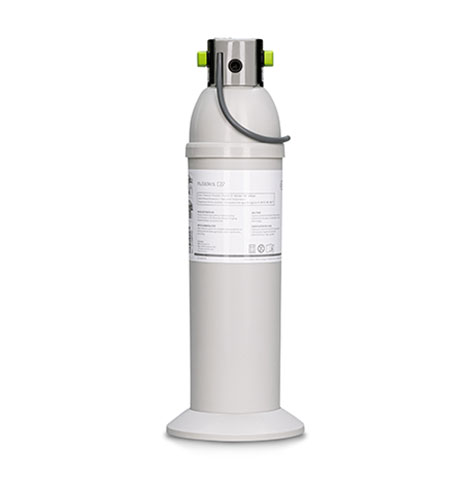

The water quality for sterilizers is internationally specified by standards and directives. The reasons for this are that your sterilizer can be seriously damaged by it or the sterilization can be jeopardised. Consequently, only water with conductivity of less than 10 µS/cm in North America and 15 µS/cm for the rest of the world should be used for your W&H sterilizer. The Water treatment devices Multidem and Osmo are especially designed to prepare suitable water (see chapter “Water quality” in the Instructions for Use). more
-
Type:
Osmo
Water pressure (min./ max.):
0.5-5 bar
Water temperature (inlet):
+5 °C ÷ 30 °C
Water temperature (storage):
+5 °C ÷ 35 °C
Protect from sunlight or other sources of heat
Water quality (output):
0.5-5 µS/cm
Produced water:
30 l/h
Electrical power supply:
230 V AC, 50/60 Hz, 0.6 A
115 V AC, 50/60 Hz, 1.2 AWeight with filter cartridges (empty storage tank):
~13 kg
Weight of water storage tank (empty):
~2.5 kg
Overall dimensions (w x h x d):
520 x 370 x 130 mm
Volume water storage tank:
7l
Backflow preventer according to EN1717:
yes
Quantity of produced water with conductibility < 15 µS *
10,000 l
