Implantmed knows what surgeons and implantologists need!

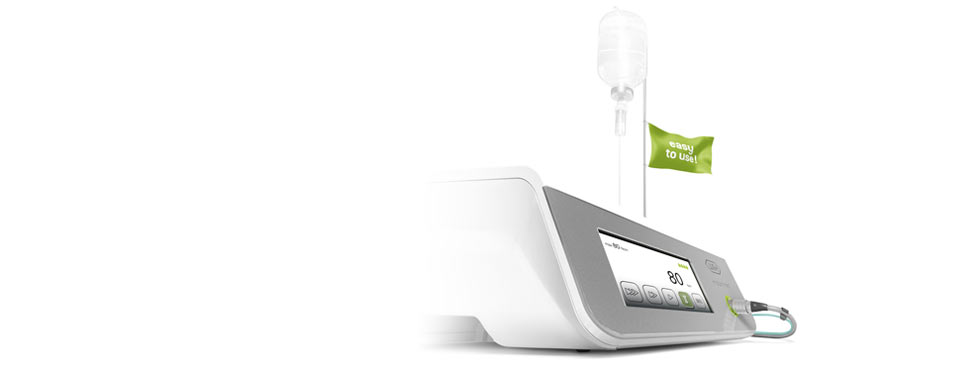

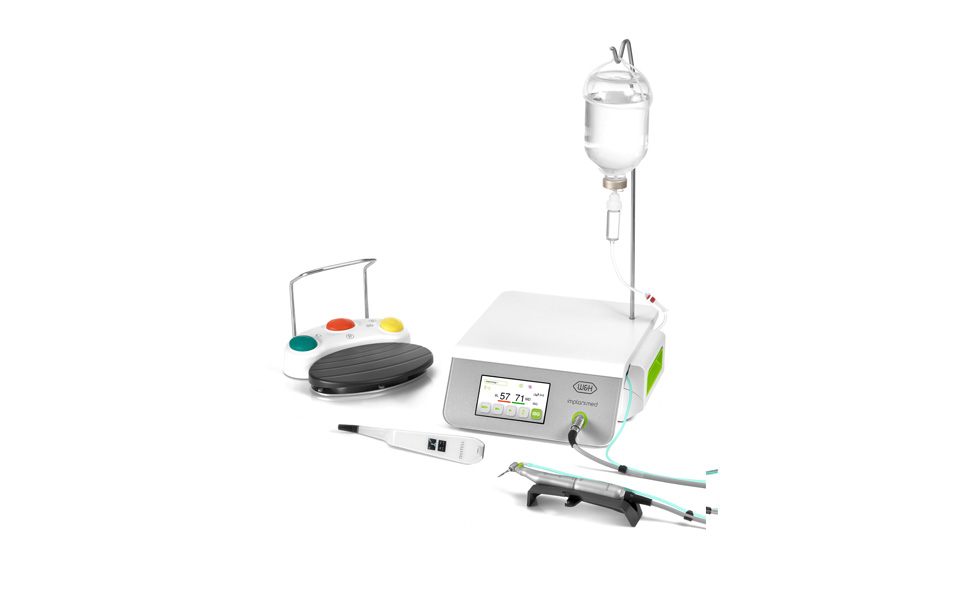

The Implantmed plus from W&H ensures improved treatment safety for you and your patients.

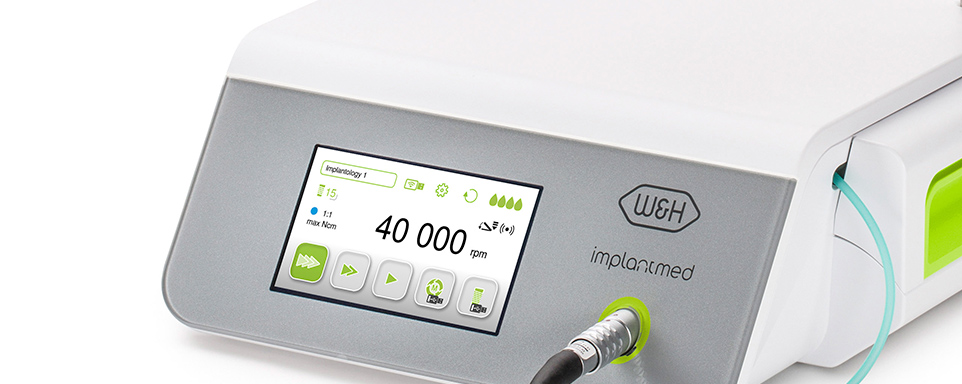

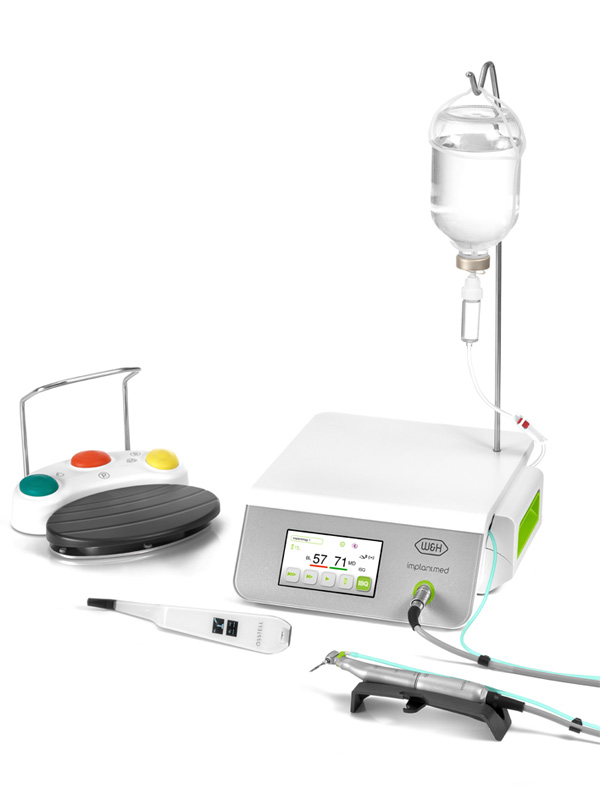

With the intuitive user interface, colour touch screen and glass surface the Implantmed offers you the highest levels of comfort.

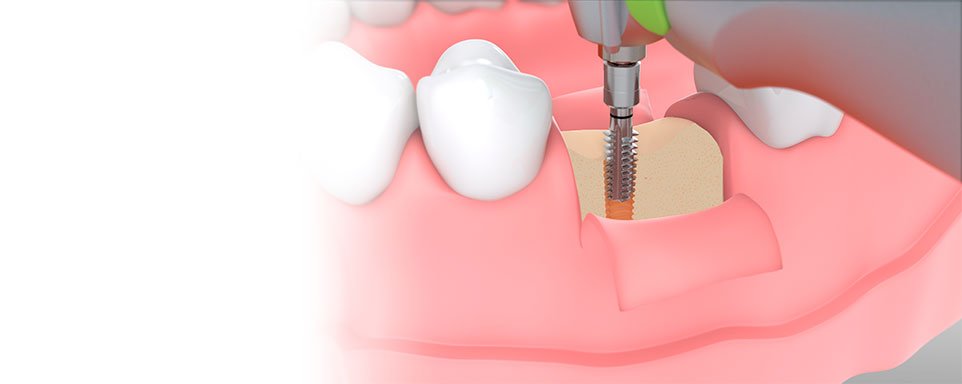

The drive unit is ideal for the purpose with its automatic thread cutter function, automatic torque control and Osstell products (available as an accessory) for precise measurable implant stability.Your advantages at a glance
- Intuitive user interface
- Secure torque control and measurable implant stability
- Ultra-short, powerful electric motor

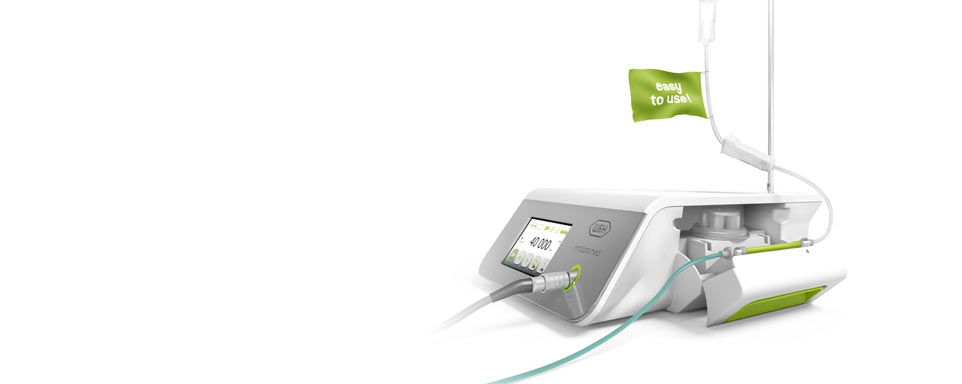

- Intuitive pump design
- Wireless foot control

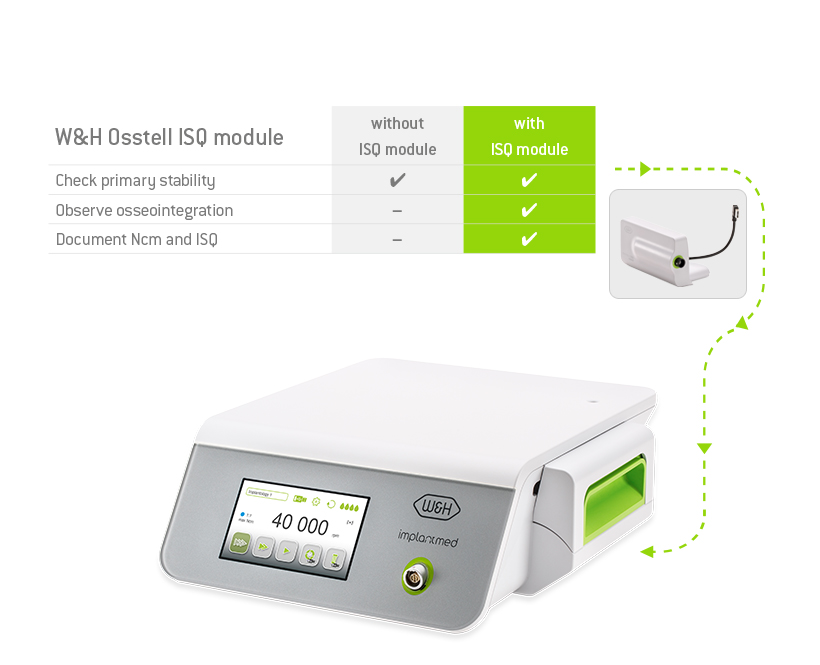

Osstell Beacon PairingOsstell Beacon Pairing
• Connection via wireless dongle and USB interface
• Display of the measured values incl. colour coding on the Implantmed display

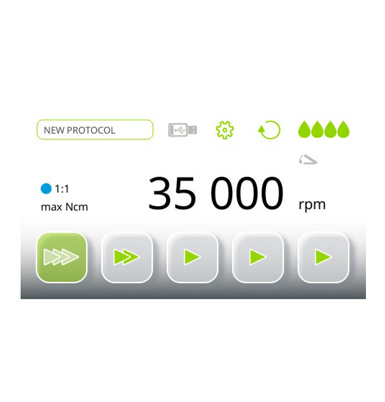

Protocol extension drilling stepsProtocol extension drilling steps
• Up to 5 additional drill steps selectable
• 2 torque-controlled implantation programs possible

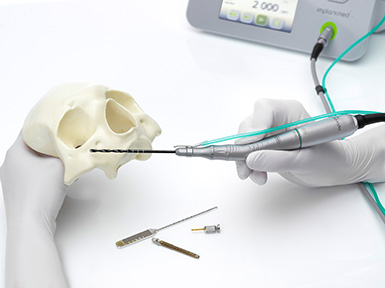

Zygoma ImplementationZygoma Implementation
• Implementation Zygoma handpiece SZ-75
• Torque precision through tuning to the overall system
• Selectable as transmission ratio in Implantmed Plus
-
Wireless foot control
Freedom of movement
- Complete safety in the treatment area
- One for all – Control the functions of multiple W&H units
- Complete safety in the treatment area

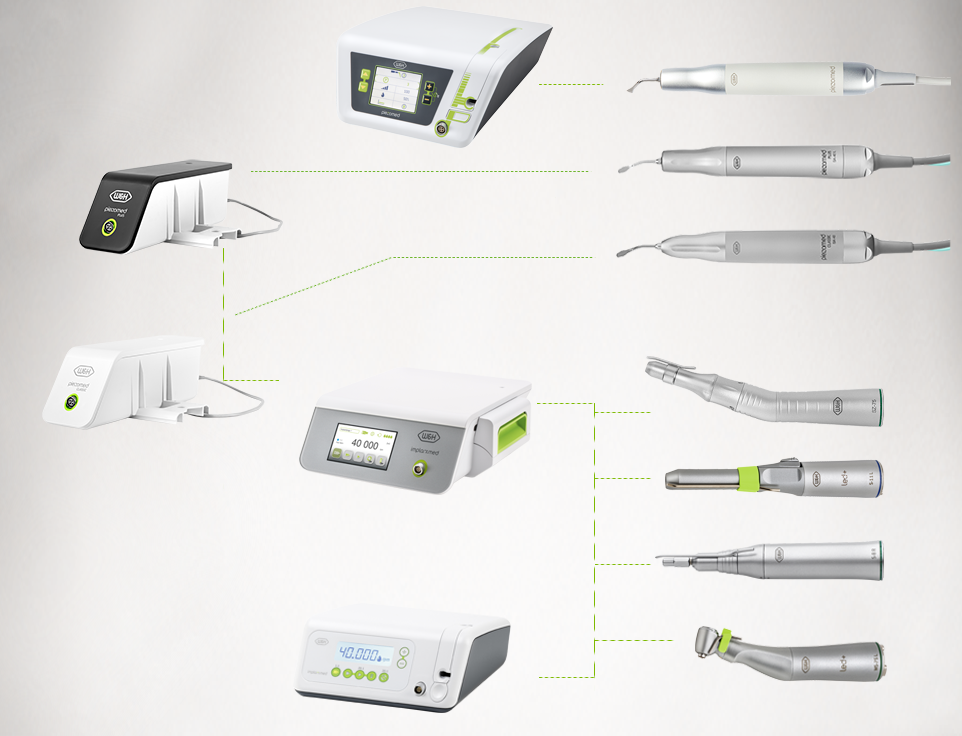

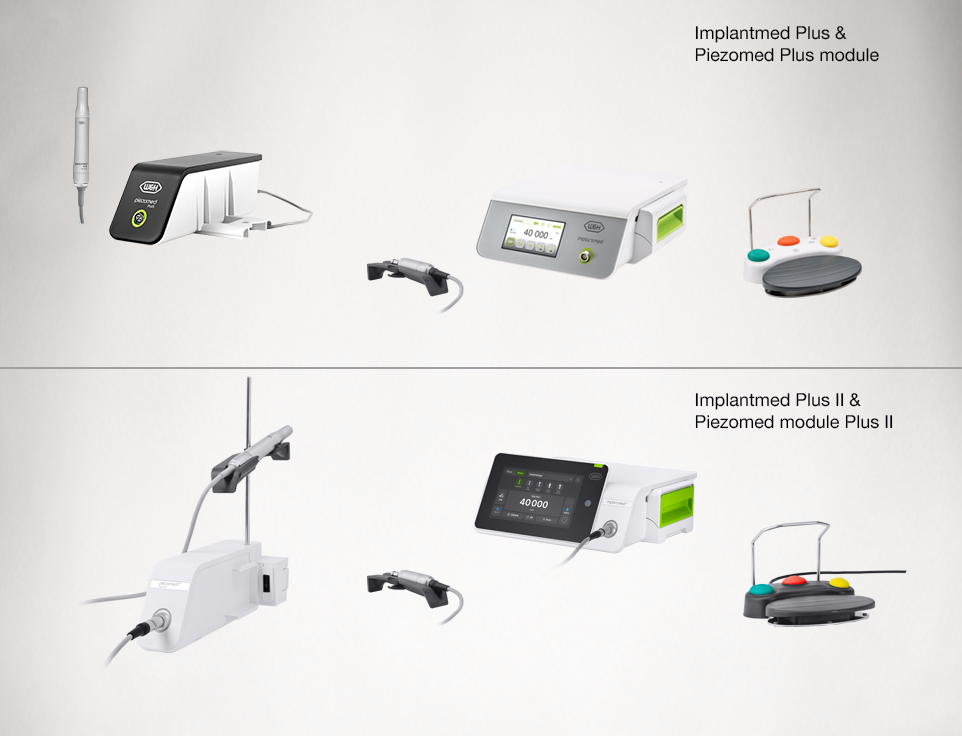

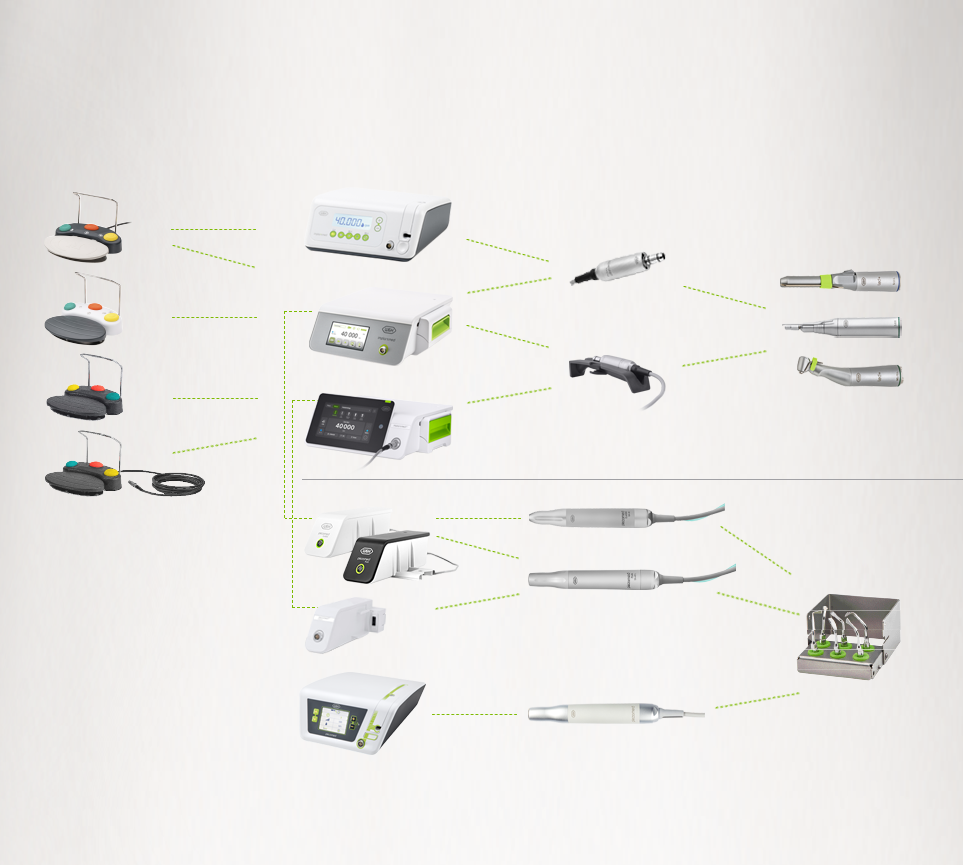

Modularity for optimal flexibility
Workflow driven solution
The combination of Implantmed Plus and
Piezomed module changes the way oral
surgery and implantology work.
Electric motor
Particularly small and surprisingly light. It enables you to work with ease.

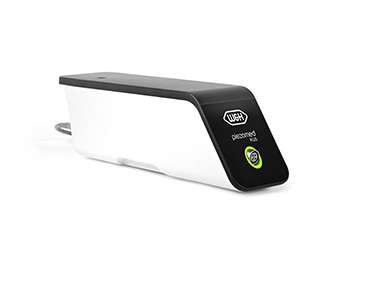

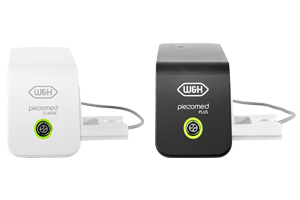

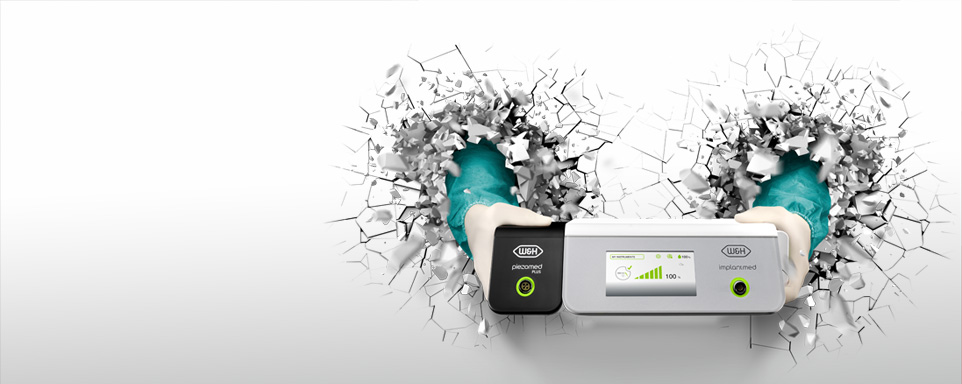

Piezomed Plus and Classic module
Combine piezo surgery and implantology in one device.

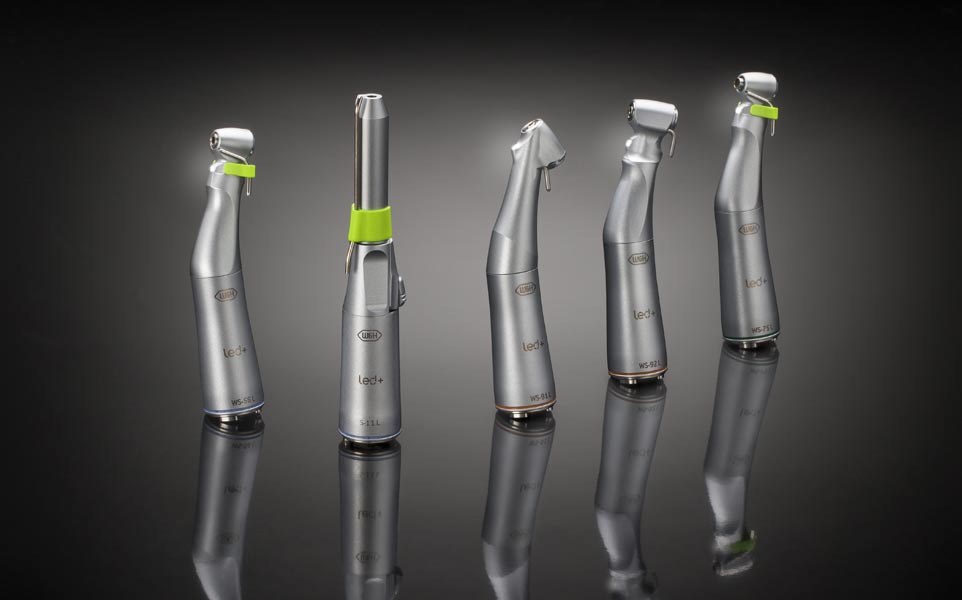

Straight & Contra-angle Handpieces
Provide optimal illumination of the treatment site and facilitate perfect, accurate treatment results.
More Info!
Documentation function
The documentation function conveniently saves all values of the implant insertion on a USB stick (.pdf and .xls).

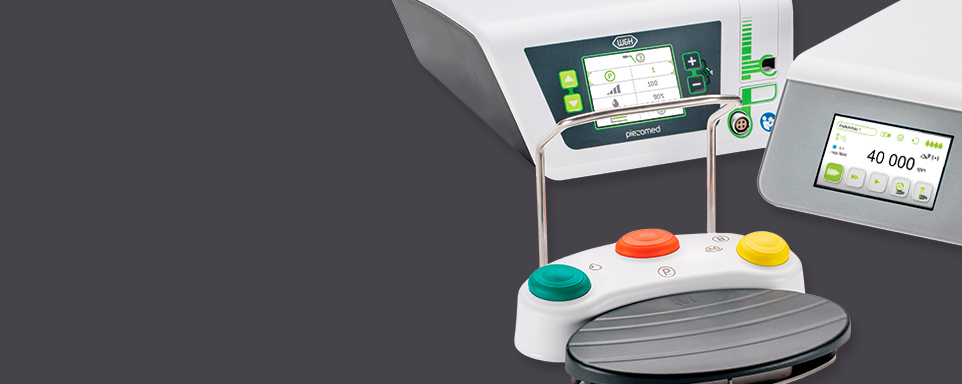

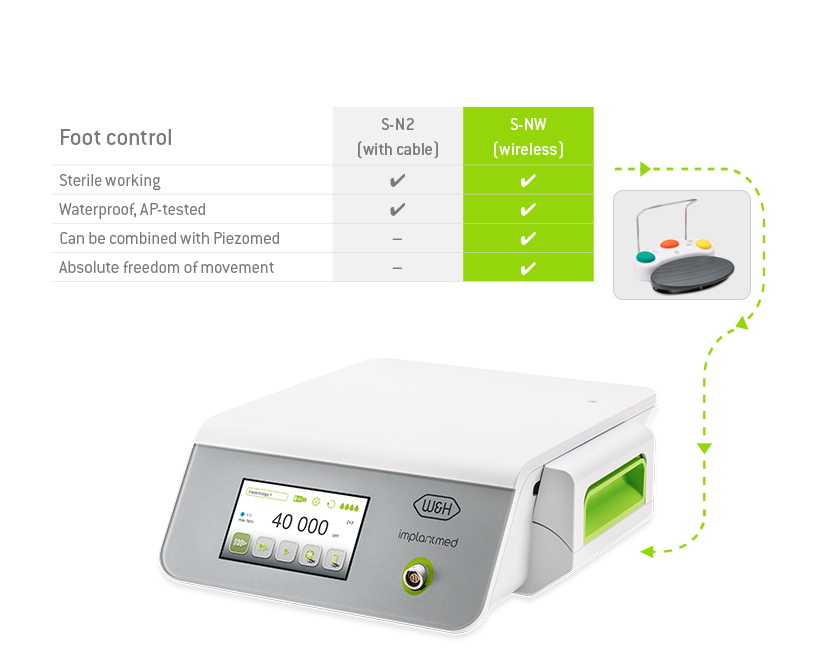

Wireless or wired foot control
Control the Implantmed Plus and Piezomed module with just one foot control.

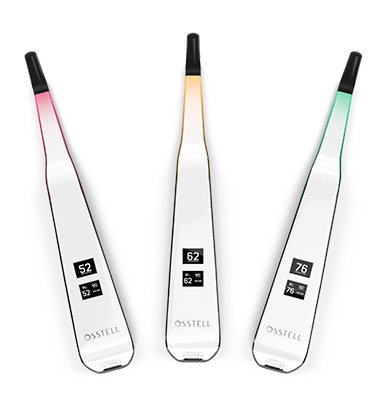

Osstell Beacon
Wireless connection to the Osstell Beacon
for easy measurement and representation of implant stability.
More Info!Step 1: Control unit

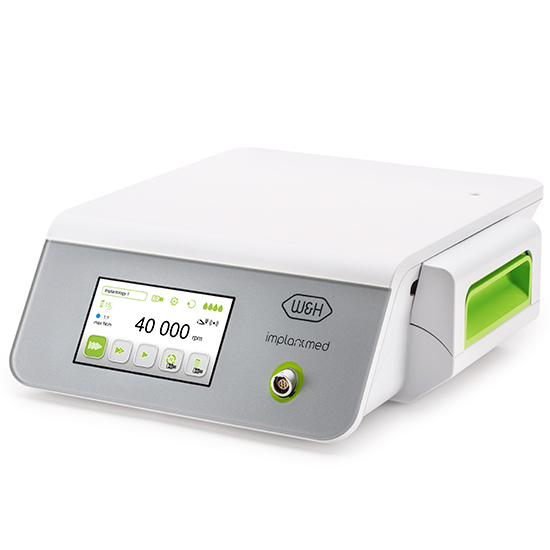

![Implantmed]( "Implantmed")
Implantmed
consists of
> Control unit
> Irrigant support
> Universal support
> Mains cable
> 3 disposable irrigation tubingsSI-1023
REF 30288000Control unit for 230 V mains voltage
SI-1015
REF 30289000Control unit for 120 V mains voltage
SI-1010
REF 30290001Control unit for 100 V mains voltage

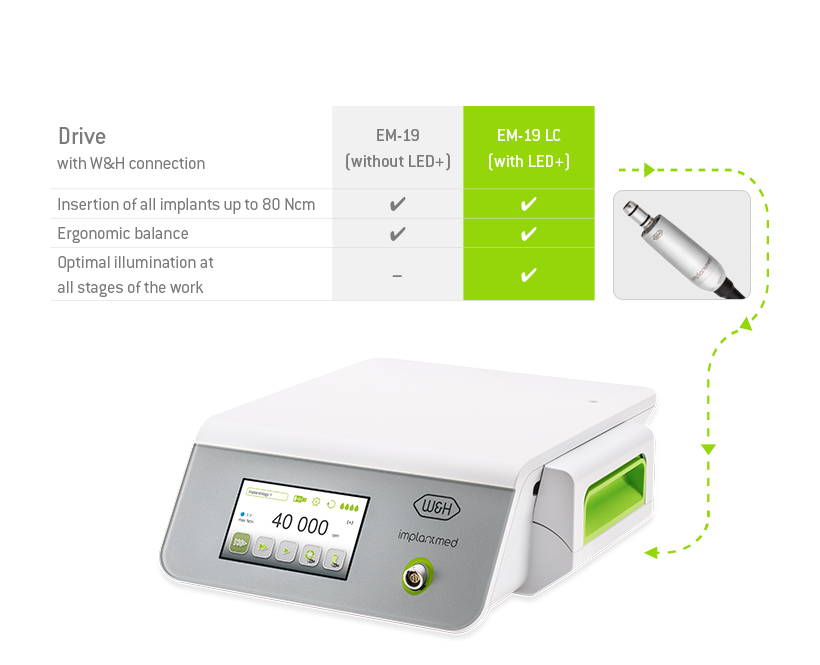

Step 2: Drive

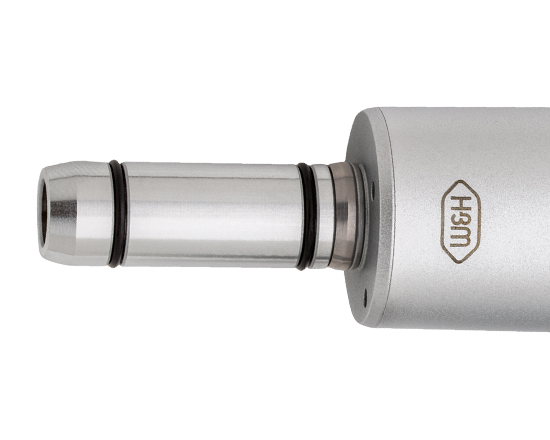

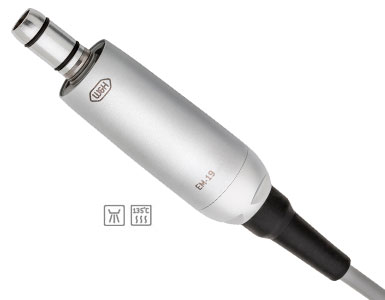

![Electric motor with W&H connection]( "Electric motor with W&H connection")
Electric motor with W&H connection
Maximum torque at motor: 6.2 Ncm
Motor speed range in the rated voltage range:
200 – 40.000 rpmEM-19 LC
REF 30281000with LED+
with electric contacts
with 1.8 m cableEM-19
REF 30185000without LED+
without electric contacts
with 1.8 m cableStep 3: Foot control

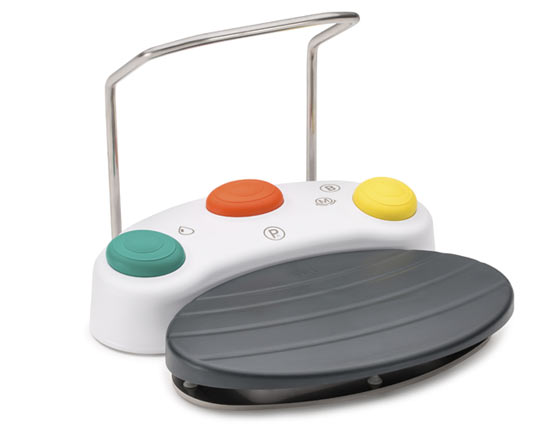

![Wireless foot control]( "Wireless foot control")

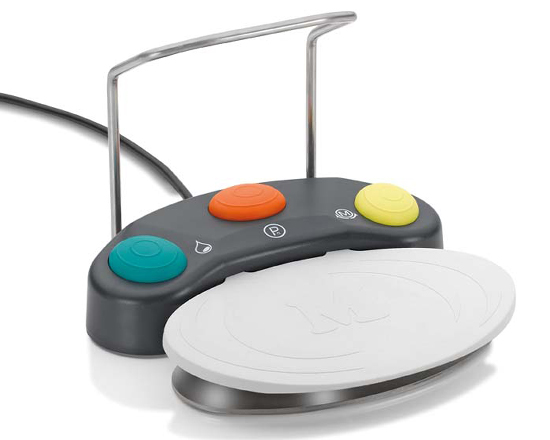

Wireless foot control
S-NW + CAN
REF 30264000with CAN dongle
compatible with
Implantmed SI-1023, SI-1015, SI-1010
![Foot control with cable]( "Foot control with cable")
Foot control with cable
S-N2
REF 30285000compatible with
Implantmed SI-923, SI-915, SI-1023, SI-1015, SI-1010Step 4: Implant stability measurement

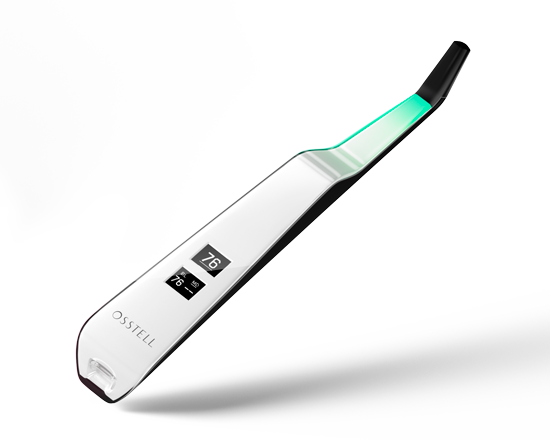

![Osstell Beacon]( "Osstell Beacon")
Osstell Beacon
Included with delivery of the Osstell Beacon measuring device:
> USB dongle for wireless communication
> 1 Osstell TestPeg
> 1 SmartPeg mount
> Instruction manual
Dimensions: 210 x 35 x 25 mm
Weight: 0.7 kg
Osstell Beacon
REF Beacon

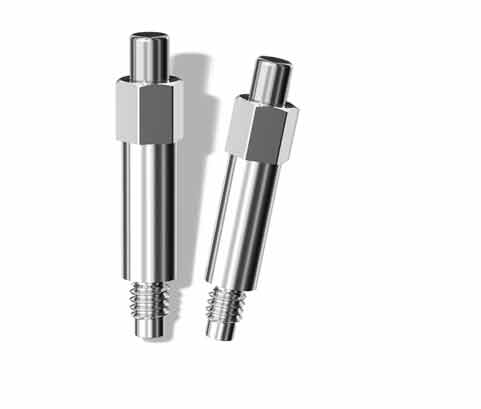

![SmartPeg]( "SmartPeg")

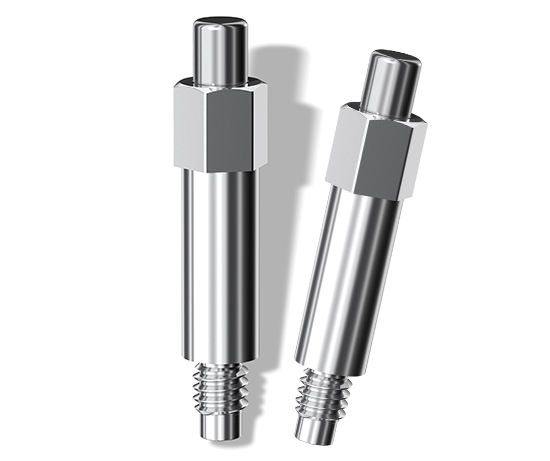

SmartPeg
> Order SmartPegs on this Website

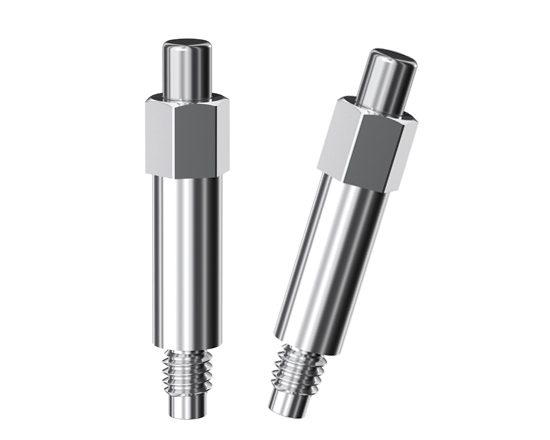

![SmartPegs]( "SmartPegs")
SmartPegs
> Disposable product
> Delivered in sterile individual packets of 5 items each
Weight: 0.3 g
SmartPegs
REF SmartPegs
Download Area
FAQ
- Can my Implantmed/Elcomed motor be processed via thermal washer disinfector?
- Can my Implantmed/Elcomed motor be processed in a vacuum sterilizer with the protection cap in place.
- Does my W&H unit need to be serviced.
- What types of tubing can I use on my device?
- How can the unit / motor be cleaned / sterilized?
- How can I adjust the torque?
- Can handpieces from another manufacturer be used on a W&H surgical motor (implantmed / elcomed)?
- Can other brands of tubing be used?
- How to insert irrigation tube?
- Is it possible to set the motor speed with the program for positioning an implant?
- Why doesn't the light on my LED G contra-angle handpiece work when I am positioning an implant?
- Does the motor need to be greased?
- How does the measurement of the ISQ work?
- What does ISQ stand for?
- Where can I buy the SmartPegs?
- What’s the difference between torque and ISQ?
- Is every new Implantmed compatible with the W&H Osstell ISQ module?
- Can surgeons upgrade the unit by themselves or does the unit need technical service?
- Are previous Implantmed motors compatible with the new Implantmed or vice versa?
- What does the LC in EM-19 LC stand for, is there a LED in the motor?
- Can current contra-angles be attached to new motors?
- Can the new contra-angles be attached to old motors?
- Can our customers disassemble the new contra-angles
- Are old cable foot controls compatible with the new unit or vice versa?
- How does it work to wirelessly control the Implantmed and the Piezomed?
- Can previous Implantmed units be retrofitted with the wireless foot control
- Is it possible to use the Implantmed Classic in combination with the wireless foot controller?
- Is it possible to use the foot controller S-N1 (previous version)?
- Is the previous Implantmed motor compatible with Implantmed Classic?
- Piezomed module: Can devices be retrofitted on the market?
- Piezomed module: Are the handpieces of the modules compatible with the SA-320?
- Piezomed module: Does the module also work with OEM devices?
- Piezomed module: Can I use the same Piezomed tips for SA-320 and the new modules as well?
- Piezomed module: Can I use tips from competitors?
- Piezomed module: Is it possible to upgrade every existing product on the market?
- Piezomed module: Compatibility of the handpieces with Piezomed Plus module and Piezomed Classic module.
- Piezomed module: What are the main differences between the Piezomed Plus module and Piezomed Classic module?
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videos & Tutorials
-

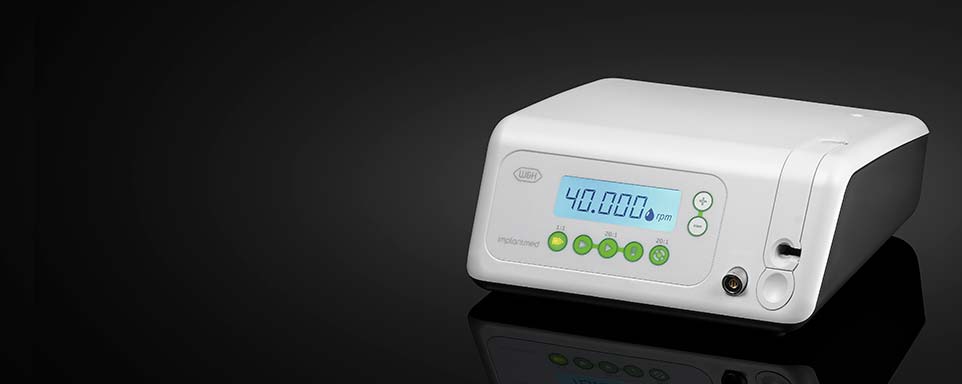

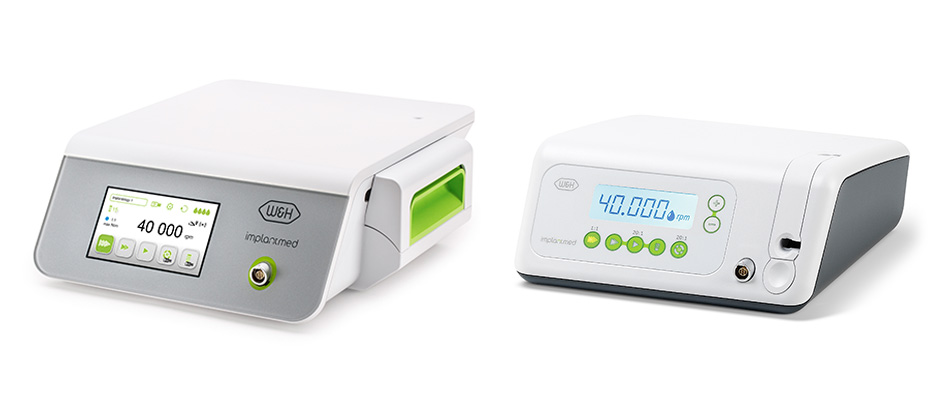

Your reliable partner in implantology
Implantmed excels by virtue of its ease of operation, powerful motor and automatic
thread cutter function.
The logically designed operating concept
supports implantologists and ensures all
programs can be set up easily, by
pressing the buttons on the unit or by
operating the foot control.Your advantages at a glance
- Easy to use
- Powerful motor with 5.5 Ncm torque
- Wide speed range: 300 up to 40,000 rpm at the motor
- Precise torque limitation: 5 to 70 Ncm
- Automatic thread cutter function
- Motor with cable, thermo washer disinfectable and sterilizable
Powerful motorPowerful motor for implantology
With this powerful motor even difficult implantological procedures no longer demand great strength.
A motor torque of 5.5 Ncm and a motor speed range of 300 up to 40,000 rpm make light work of tough procedures.
The automatic torque control at the rotary instrument, which can be set on the Implantmed unit at between 5 and 70 Ncm, ensures it is safe in operation.
Ease of operationEase of operation
Ease of use is the major feature.
You can set up all the steps for an implantation without difficulty by pressing the plus and minus buttons on the unit or by operating the foot control.
The set parameters are clearly visible on the display and are easy - to - read.
Automatic thread cutter functionAutomatic thread cutter function

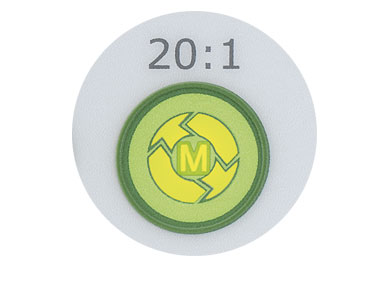

The thread cutter function, which is integrated in Program 5, supports you when inserting implants in hard bone.
Cutting a thread before screwing in an implant prevents excessive compression of the bone and promotes stress – free healing of the implant.

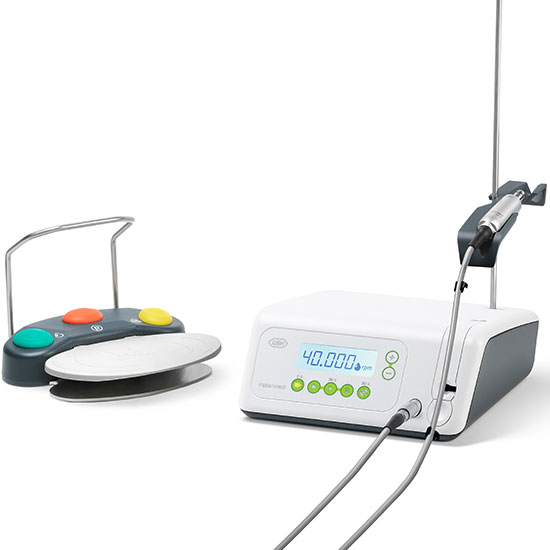

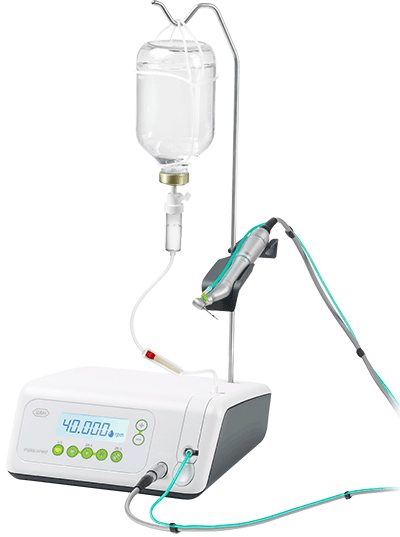

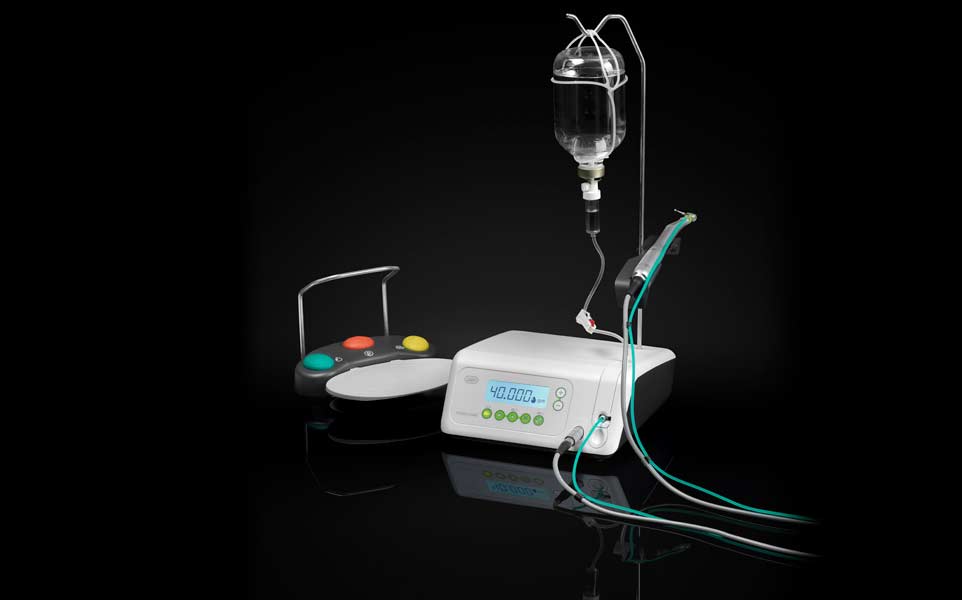

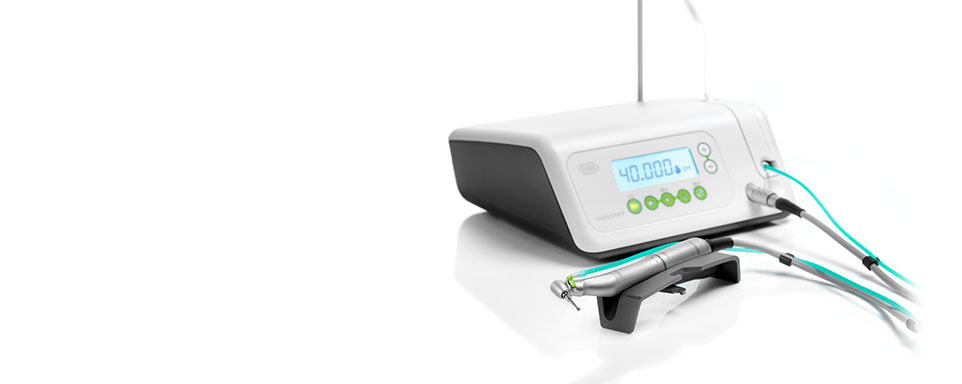

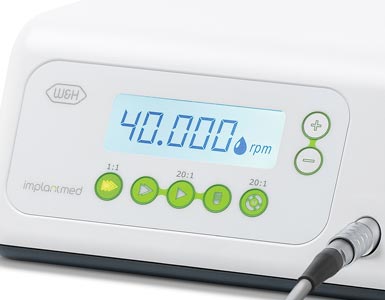

![Implantmed Classic]( "Implantmed Classic")
Implantmed Classic
consists of: control unit,
motor with 1.8 m cable incl. 5 clips,
foot control S-N2, stand, motor support,
mains cable, 2 locking pins and
3 disposable irrigation tubingsSI-923
REF 90000161230 V
SI-915
REF 30287000115 V
Download Area
FAQ
- Can my Implantmed/Elcomed motor be processed via thermal washer disinfector?
- Can my Implantmed/Elcomed motor be processed in a vacuum sterilizer with the protection cap in place.
- Does my W&H unit need to be serviced.
- What types of tubing can I use on my device?
- How can the unit / motor be cleaned / sterilized?
- How can I adjust the torque?
- Can handpieces from another manufacturer be used on a W&H surgical motor (implantmed / elcomed)?
- Can other brands of tubing be used?
- How to insert irrigation tube?
- Is it possible to set the motor speed with the program for positioning an implant?
- Why doesn't the light on my LED G contra-angle handpiece work when I am positioning an implant?
- Does the motor need to be greased?
- How does the measurement of the ISQ work?
- What does ISQ stand for?
- Where can I buy the SmartPegs?
- What’s the difference between torque and ISQ?
- Is every new Implantmed compatible with the W&H Osstell ISQ module?
- Can surgeons upgrade the unit by themselves or does the unit need technical service?
- Are previous Implantmed motors compatible with the new Implantmed or vice versa?
- What does the LC in EM-19 LC stand for, is there a LED in the motor?
- Can current contra-angles be attached to new motors?
- Can the new contra-angles be attached to old motors?
- Can our customers disassemble the new contra-angles
- Are old cable foot controls compatible with the new unit or vice versa?
- How does it work to wirelessly control the Implantmed and the Piezomed?
- Can previous Implantmed units be retrofitted with the wireless foot control
- Is it possible to use the Implantmed Classic in combination with the wireless foot controller?
- Is it possible to use the foot controller S-N1 (previous version)?
- Is the previous Implantmed motor compatible with Implantmed Classic?
- Piezomed module: Can devices be retrofitted on the market?
- Piezomed module: Are the handpieces of the modules compatible with the SA-320?
- Piezomed module: Does the module also work with OEM devices?
- Piezomed module: Can I use the same Piezomed tips for SA-320 and the new modules as well?
- Piezomed module: Can I use tips from competitors?
- Piezomed module: Is it possible to upgrade every existing product on the market?
- Piezomed module: Compatibility of the handpieces with Piezomed Plus module and Piezomed Classic module.
- Piezomed module: What are the main differences between the Piezomed Plus module and Piezomed Classic module?
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Videos & Tutorials
-
-
Implantmed Plus SI-1023, SI-1015, SI-1010
Type: SI-1023 SI-1015 SI-1010 Mains voltage: 230 V 120 V 100 V Permissible voltage fluctuation: 220 – 240 V 110 – 130 V 90 – 110 V Rated current: 0.3 – 0.8 A 0.3 – 1.6 A 0.3 – 1.4 A Frequency: 50–60 Hz Mains fuse (2 pcs): 250 V – T1,6AH Maximum power consumption: 170 VA Max. mechanical output power: 80 W Max. torque at the motor: 6.2 Ncm Motor speed range in the nominal voltage range: 200 – 40,000 min -1 Coolant flow volume at 100%: at least 90 ml/min Dimensions in mm (height × width × depth): 100 x 262 x 291 Weight in kg: 3.5 Foot control: S-N2 / S-NW Straight and contra-angle handpieces with mini LED+: S-11 L / WS-56 L, WS-75 L, WS-91 L, WS-92 L Warranty: 24 months
Implantmed Classic SI-915, SI-923
Type: SI-915 SI-923 Max. torque at the rotary instrument (in program 4): 70 Ncm Mains voltage: 110 – 130 V 220 – 240 V Frequency: 50 / 60 Hz Max. mechanical output power: 80 W Max. torque at the motor: 5.5 Ncm Motor speed range in the nominal voltage range: 300 – 40,000 min -1 Straight and contra-angle handpieces: WI-75 E/KM / S-9 L G / S-11 L G / WS-56 L G / WS-75 L G / WS-91 L G / WS-92 L G Length of motor cable: 1.8 m Coolant flow rate at 100 %: at least 90 ml/min Foot control: S-N2 Height / width / depth: 100 x 235 x 240 mm
