W&H Osstell ISQ module
Measuring the stability of implants allows for precise evaluation of osseointegration.
Implantmed can be upgraded with the W&H Osstell ISQ module at any time and can be connected to the surgical device quickly and easily. -

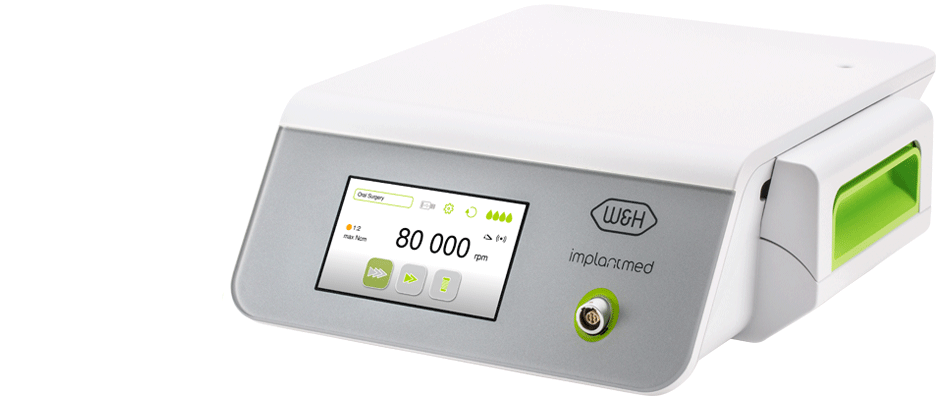

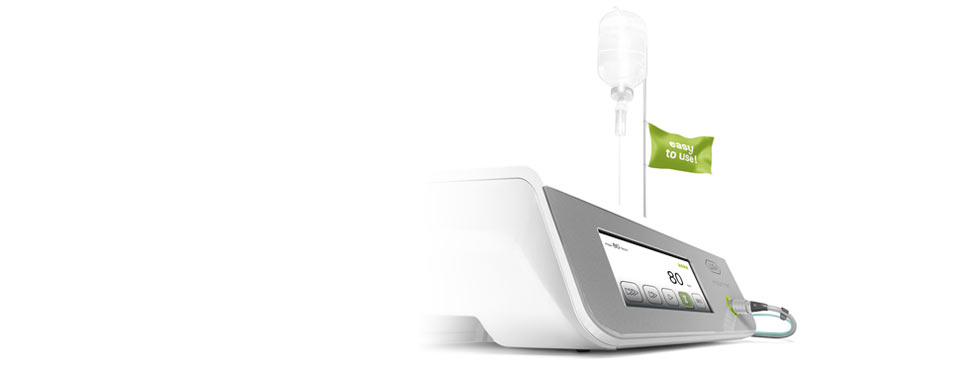

Colour touch screen
Implantmed impresses users with its intuitive user interface and simplifies your treatment process.
Furthermore, the display only shows the most important functions during treatment. -
For the dental assistant

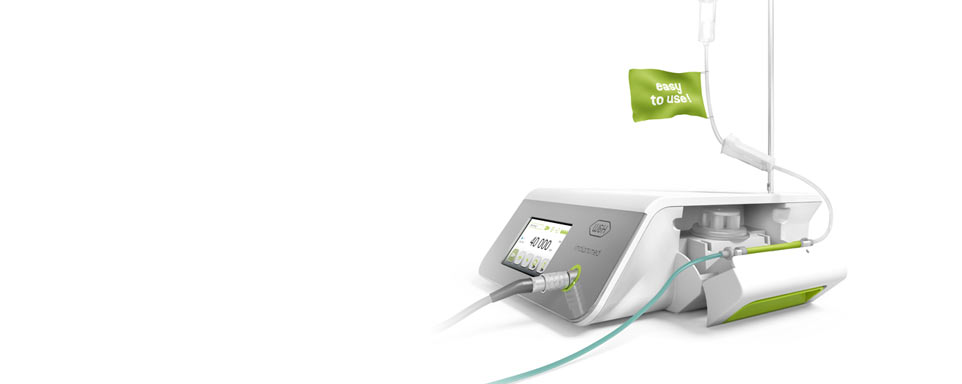

The new pump design makes insertion of the irrigation tubing secure, simple and quick.
-
Fatigue-free operation
The powerful electric motor allows even the most difficult surgical procedures to be carried out without exerting large amounts of force.
Moreover, the contra-angle handpiece is ergonomically superb and is perfectly balanced in combination with the ultra-short electric motor.- Powerful
- Ultra-short
- Perfectly balanced
- Thermo washer disinfectable
- Sterilizable
-
1 Osstell

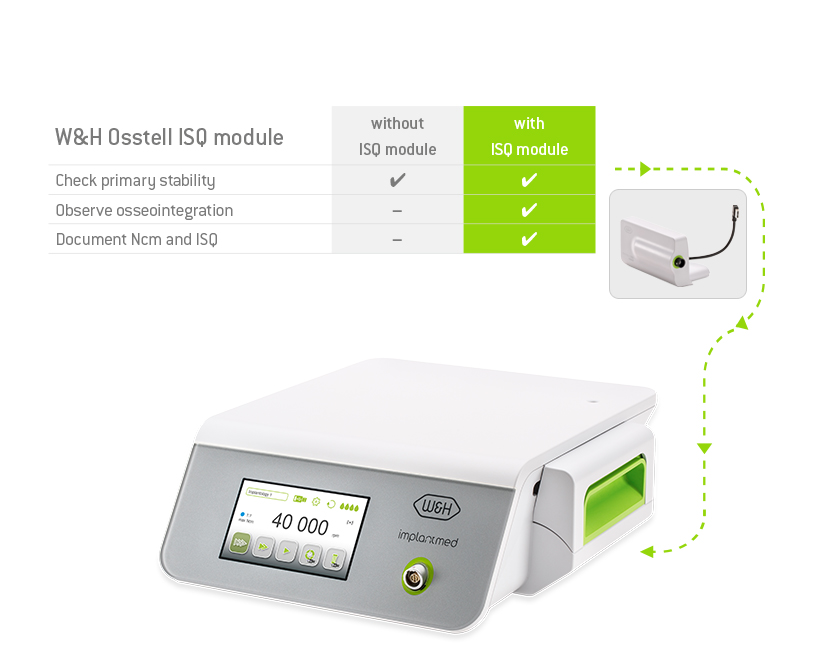

W&H Osstell ISQ module

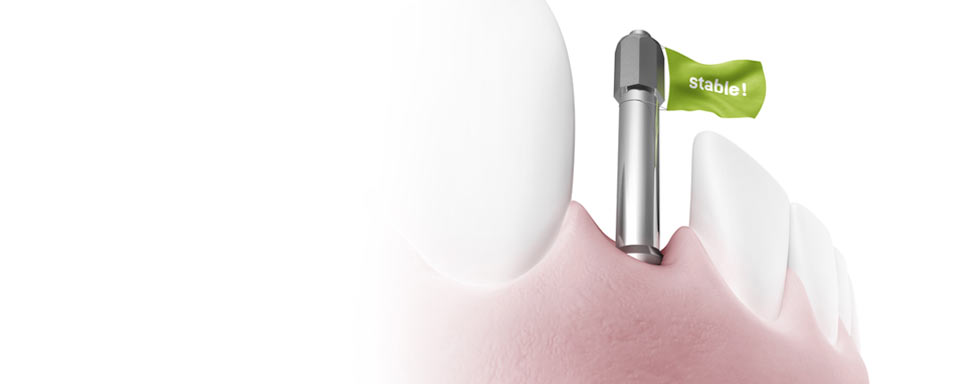

Measuring the stability of implants allows for precise evaluation of osseointegration.
Implantmed can be upgraded with the W&H Osstell ISQ module at any time and can be connected to the surgical device quickly and easily. -

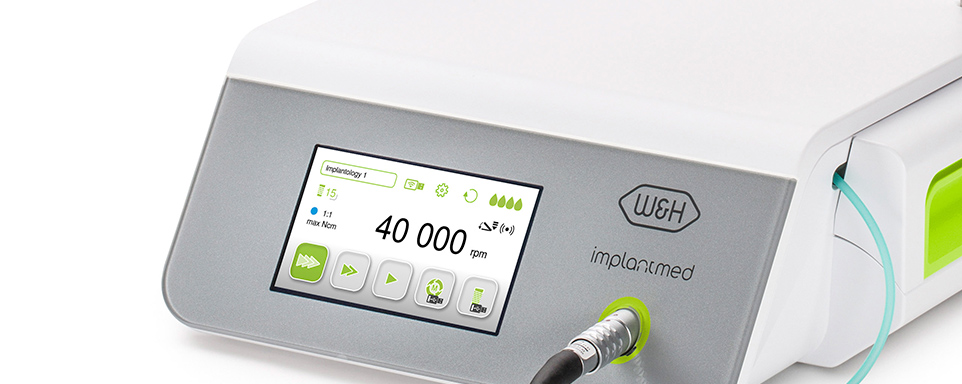

2 Touch screen
Colour touch screen
Implantmed impresses users with its intuitive user interface and simplifies your treatment process.
Furthermore, the display only shows the most important functions during treatment. -
3 Pump
For the dental assistant

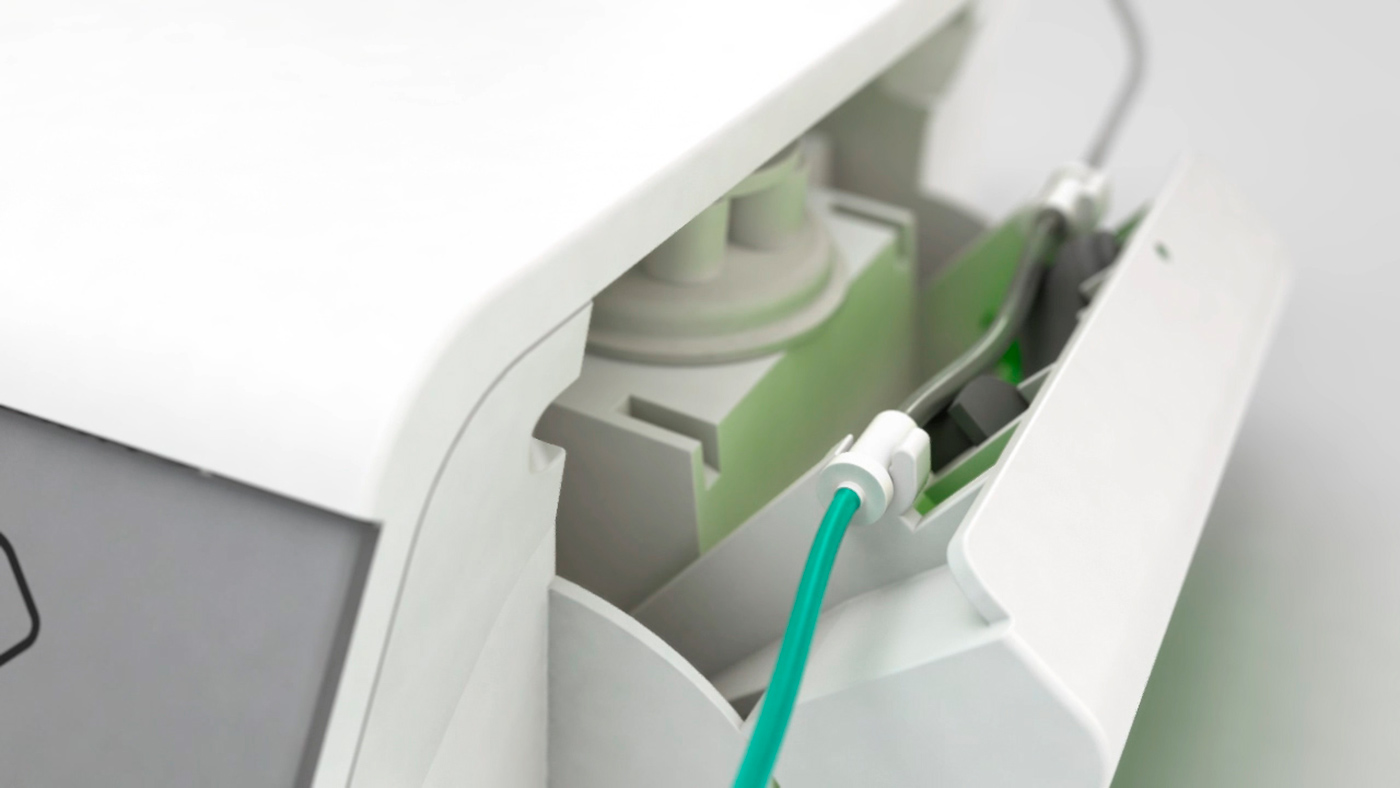

The new pump design makes insertion of the irrigation tubing secure, simple and quick.
-
4 Electric motor
Fatigue-free operation
The powerful electric motor allows even the most difficult surgical procedures to be carried out without exerting large amounts of force.

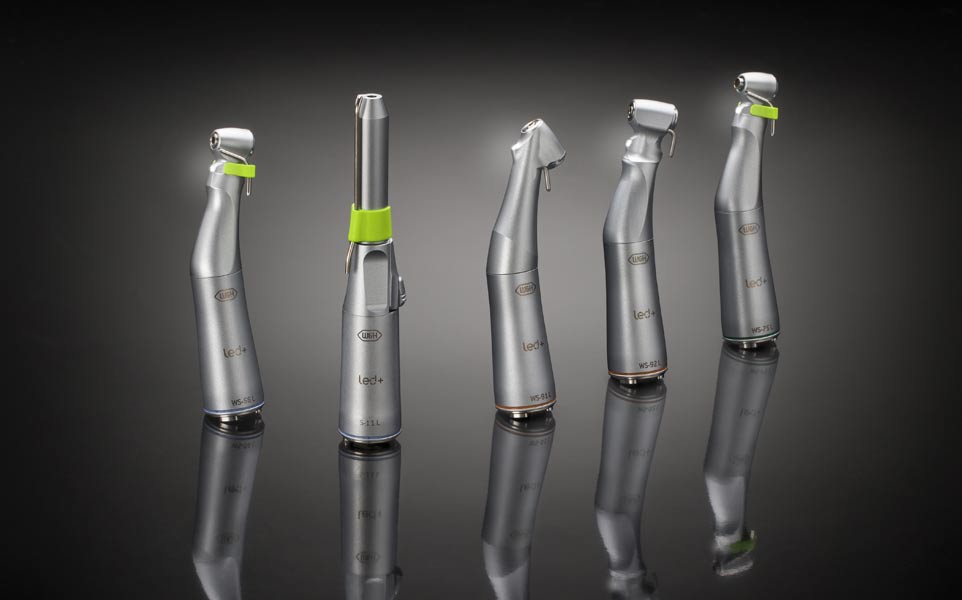

Moreover, the contra-angle handpiece is ergonomically superb and is perfectly balanced in combination with the ultra-short electric motor.- Powerful
- Ultra-short
- Perfectly balanced
- Thermo washer disinfectable
- Sterilizable
-
Implantmed fyller 20!
› Fem program för varje implantatsekvens som kan anpassas och sparas individuellt.
› Intergrerad pump, multifunktionell fotpedal och autoklaverbar motor och kabel.
W&H:s Implantmed mottog den högt eftertraktade "Red Dot Design Award"
W&H fick äran att motta “Red Dot Design Award” för den utmärkta design som de tyckte att den nya Implantmed har.
I början av april 2017 testades och utvärderades tusentals produkter från hela världen av en högkvalificerad jury bestående av 40 experter och de bestämde att W&H skulle få priset "Red Dot" för hög designkvalitet hos en av sina produkter."Red Dot Design Award" för
- Utmärkt design
- Rena linjer
- Material i toppkvalitet
- Intuitivt användargränssnitt
- Touchscreen i färg
"Red Dot" för
W&H:s Implantmed"Red Dot Design Award" för W&H Implantmed
Implantmed är speciellt konstruerad av W&H:s designteam för användning inom dentalimplantologi.
Dess snygga design, rena linjer och högkvalitativa material uppfyller inte bara alla hygienkrav inom dentalbranschen utan uppfyller även tandläkarens höga krav på design för modern dentalutrustning.
Dessutom ger det intuitiva användargränssnittet med sin touchscreen i färg och trådlös fotkontroll optimal komfort och flexibilitet.
Fantastisk blir fantastiskare
Den nya Implantmed med ny och starkare motor ger förbättrad behandlingssäkerhet för dig och dina patienter.
Med den användarvänliga menystrukturen en stor glastouchscreen i färg ger vår nya Implantmed användaren högsta komfort och hygien.
Den nya Implantmed imponerar med funktioner som automatisk förgängning och automatisk torquekontroll och med tillbehör som till exempel W&H Osstell ISQ modul för mätning av stabiliteten på implantat, det är helt enkelt ett kraftpaket med precision.Fördelar i korthet:
- Enkel och lättförståelig meny
-
Säker torquekontroll och
mätbar implantatstabilitet - Kort och kraftfull elmotor
- Ny enklare pumpdesign
- Sladdlös fotpedal som tillval
W&H Osstell Beacon PairingW&H Osstell Beacon Pairing
• Connection via Bluetooth dongle and USB interface

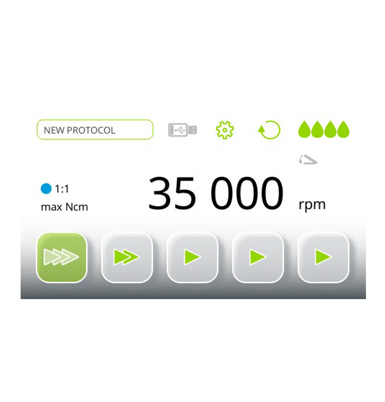

• Display of the measured values incl. colour coding on the Implantmed display
Protocol extension drilling stepsProtocol extension drilling steps
• Up to 5 additional drill steps selectable
• 2 torque-controlled implantation programs possible

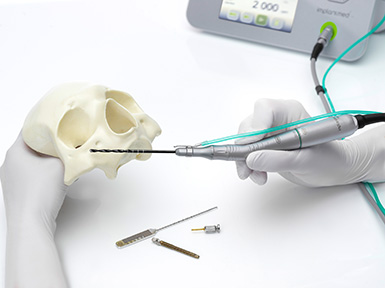

Zygoma ImplementationZygoma Implementation
• Implementation Zygoma handpiece SZ-75
• Torque precision through tuning to the overall system
• Selectable as transmission ratio in Implantmed Plus

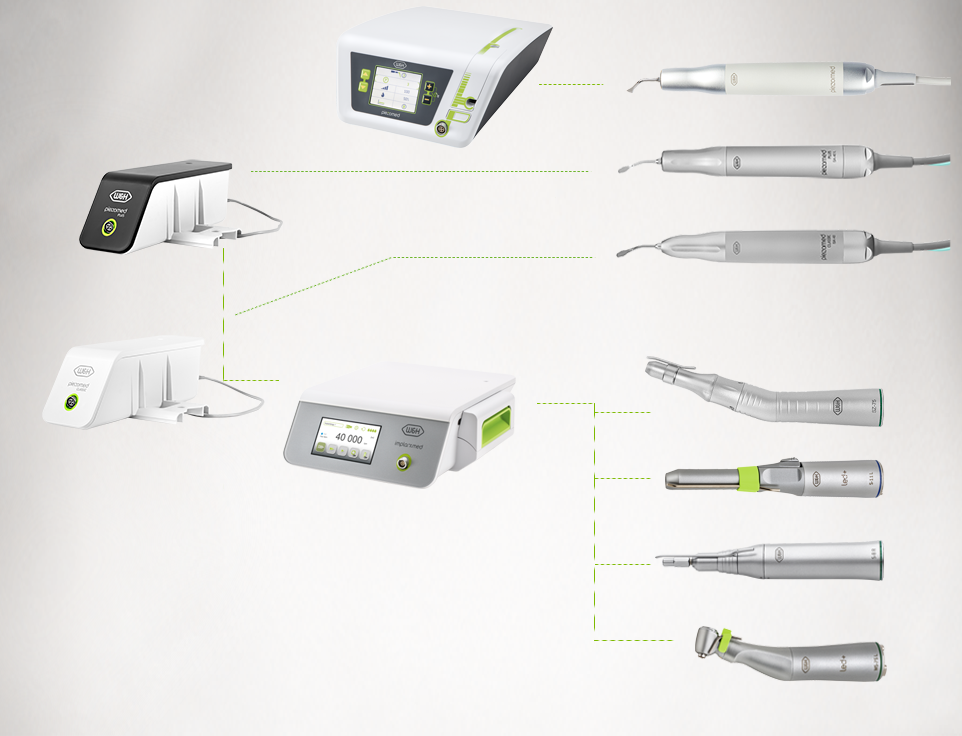

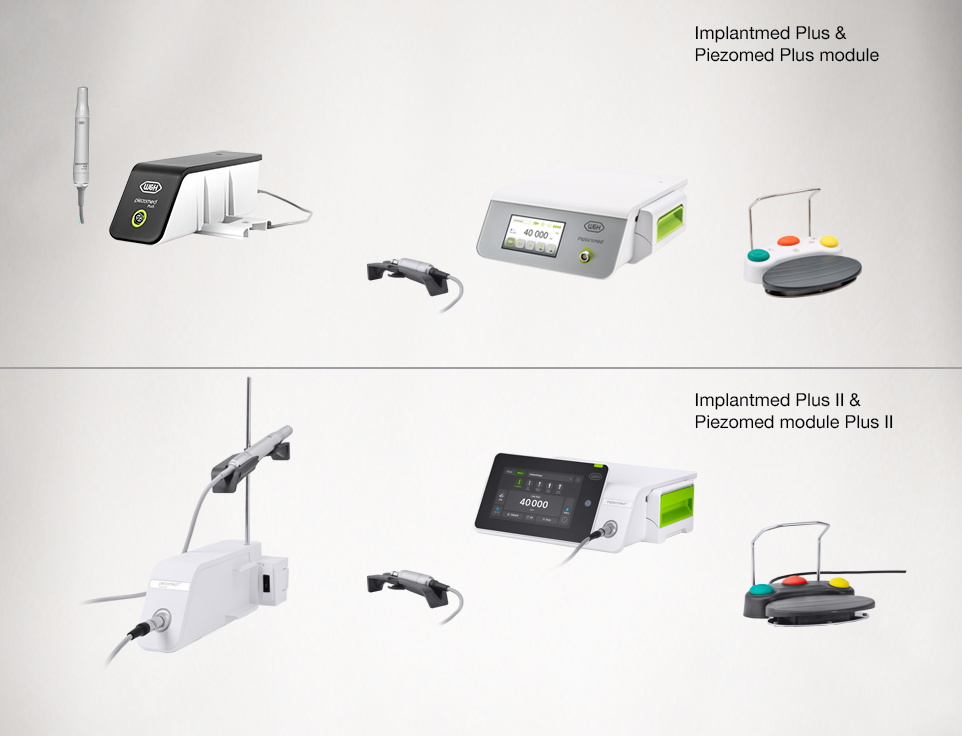

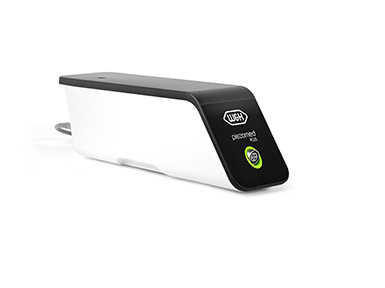

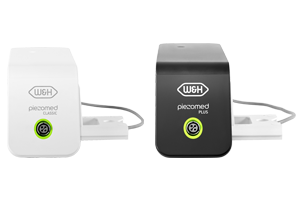

Smidigt modulsystem
Kombinationen implantmed Plus och nya Piezomodulen medför smidigt och flexibelt sätt att duka upp, planera och genomföra implantatbehandlingar.

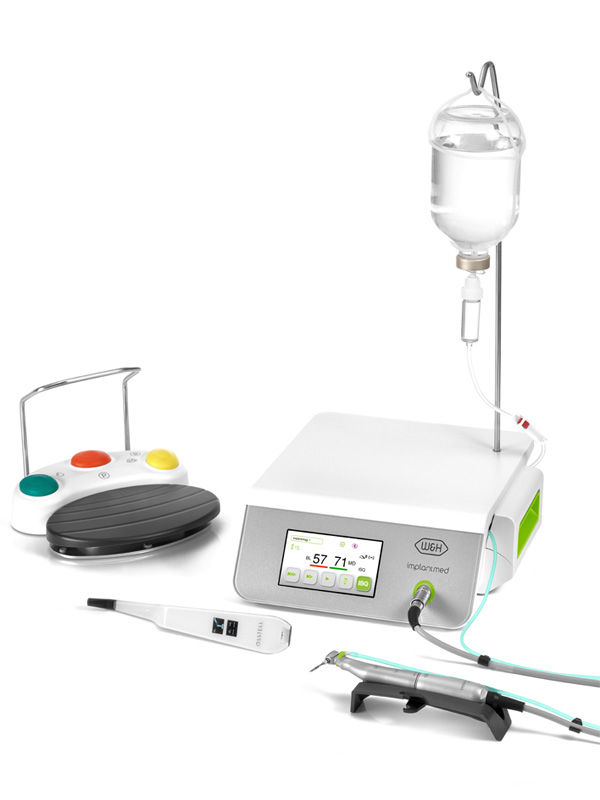

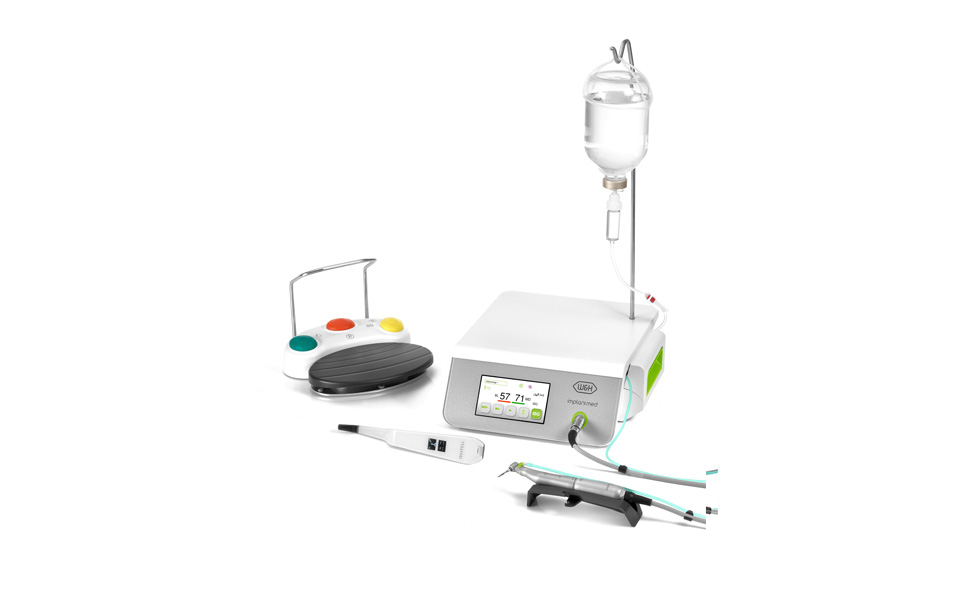

Steg 1: kontrollenhet

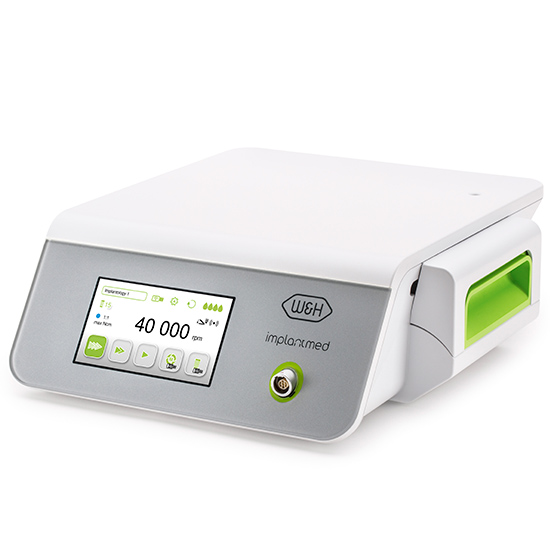

Implantmed
består av
> kontrollenhet
> spolslangsstativ
> stativhållare
> huvudkabel
> 3 engångsspolslangarSI-1023
REF 30288000230 V
SI-1015
REF 30289000115 V
SI-1010
REF 30290001110 V
Steg 2: Motor

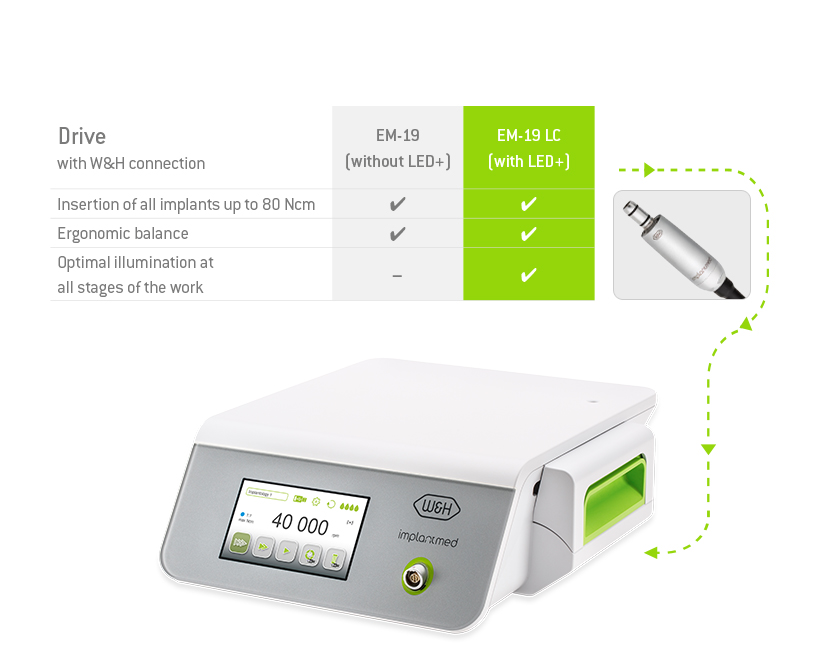

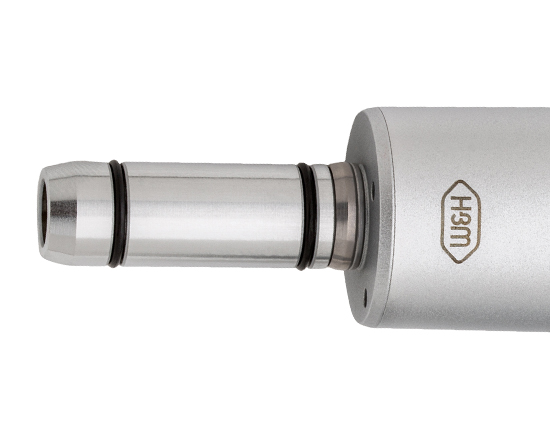

Elmotor med W&H-anslutning
Maxtorque på motor: 6.2 Ncm
Brett varvtalsområde:
200 upp till 40.000 rpm på motornEM-19 LC
REF 30281000med LED+
med elkontakt
med 1.8 m kabelEM-19
REF 30185000utan LED+
utan elkontakt

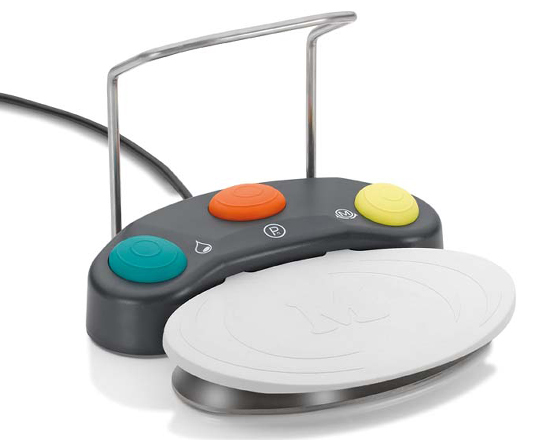

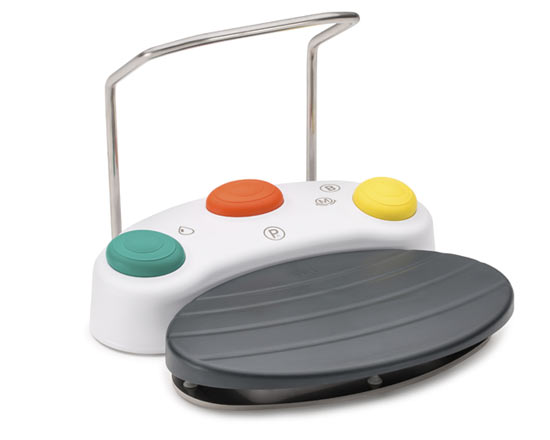

med 1.8 m kabelSteg 3: Fotpedal

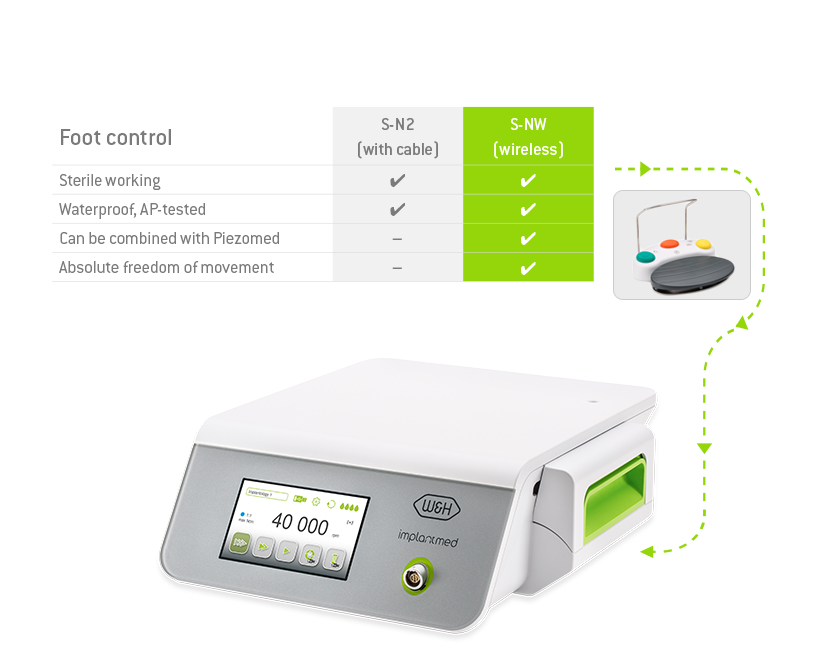

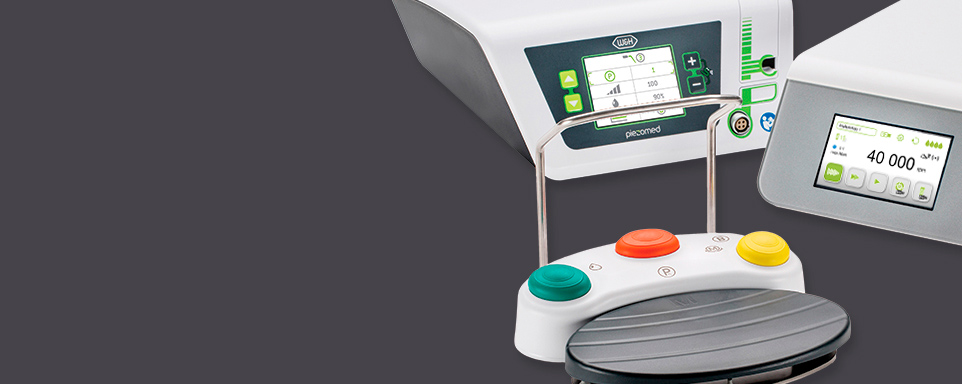

S-NW + CAN
REF 30264000med CAN dongle (trådlös sändare)
kompatibel med
Implantmed SI-1023, SI-1015, SI-1010S-N2
REF 30285000kompatibel med
Implantmed SI-923, SI-915, SI-1023, SI-1015, SI-1010Steg 4: Mätning av implantatstabiliteten
W&H Osstell ISQ modul
består av
> Osstell ISQ modul
> Mätsond med kabel
> TestPeg
> Voucher för stycken 5 SmartPegs
SI-SQ
REF 30210000W&H Osstell ISQ modul

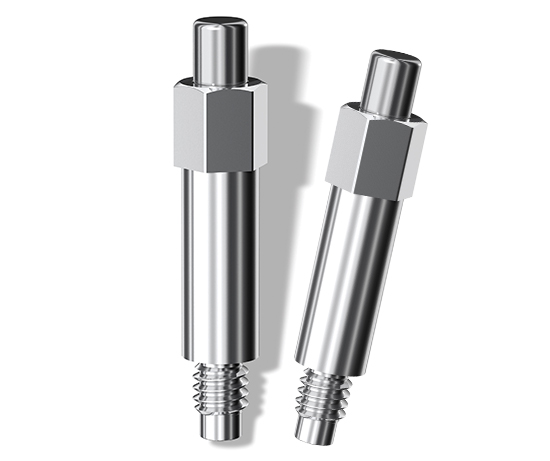

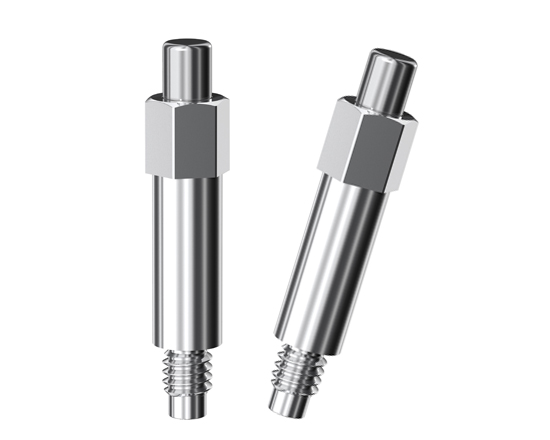

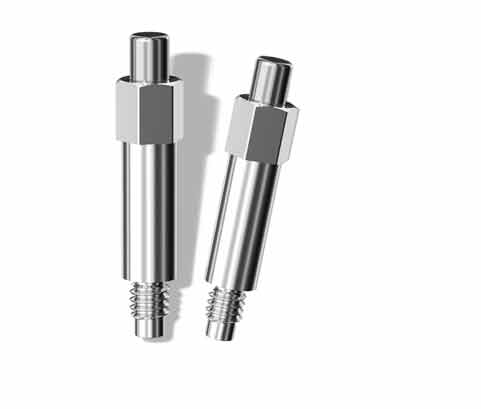

SmartPeg
> Voucher för de första 5 SmartPegs
> Beställ här: WebShop

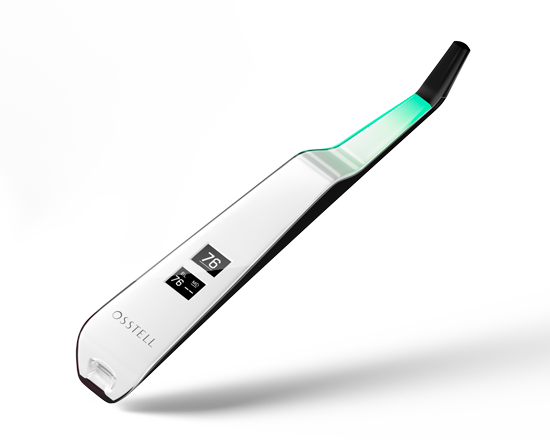

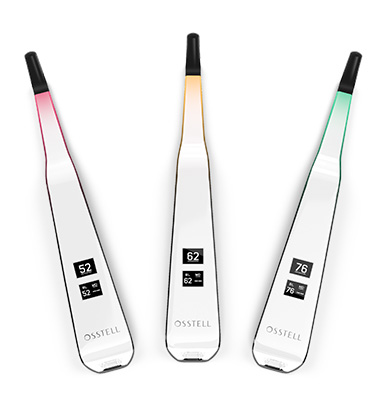

Osstell Beacon
Included with delivery of the Osstell Beacon measuring device:
> USB dongle for Bluetooth communication
> 1 Osstell TestPeg
> 1 SmartPeg mount
> Instruction manual
Dimensions: 210 x 35 x 25 mm
Weight: 0.7 kg
Osstell Beacon
REF BeaconSmartPegs
> Disposable product
> Delivered in sterile individual packets of 5 items each
Weight: 0.3 g
SmartPegs
REF SmartPegs
Download Area
FAQ
- Piezomed module: What are the main differences between the Piezomed Plus module and Piezomed Classic module?
- Piezomed module: Kompatibilitet av handstycken med Piezomed Plus och Piezomed Classic modul.
- Piezomed modul: Är det möjligt att uppgradera alla produkter på marknaden?
- Piezomed modul: Kan jag använda spetsar från andra tillverkare?
- Piezomed modul: Kan jag använda samma Piexomed spets till SA-320 som till den nya modulen?
- Piezomed module: Fungerar även modulen med OEM-enheter?
- Piezomedmodul: Passar modulen till Implantmed som finns på marknaden?
- Piezomedmodul: Är handstycket till modulen kompatibel med SA-320?
- What does ISQ stand for?
- How does the measurement of the ISQ work?
- Where can I buy the SmartPegs?
- What’s the difference between torque and ISQ?
- Is every new Implantmed compatible with the W&H Osstell ISQ module?
- Can the surgeon upgrade the unit by themself or does the unit need technical service?
- Are previous Implantmed motors compatible with the new Implantmed or vice versa?
- What does the LC in EM-19 LC stand for, is there a LED in the motor?
- Can current contra-angles be attached to new motors?
- Can the new contra-angles be attached to old motors?
- Can our customers disassemble the new contra-angles
- Are old cable foot controls compatible with the new unit or vice versa?
- How does it work to wirelessly control the Implantmed and the Piezomed?
- Can previous Implantmed units be retrofitted with the wireless foot control
- How can I adjust the torque?
- Can handpieces from another manufacturer be used on a W&H surgical motor (implantmed / elcomed)?
- Can other brands of tubing be used?
- How to insert irrigation tube?
- How can the unit / motor be cleaned / sterilized?
- Is it possible to set the motor speed with the program for positioning an implant?
- Why doesn't the light on my LED G contra-angle handpiece work when I am positioning an implant?
- Does my W&H unit need to be serviced.
- What types of tubing can I use on my device?
- Does the motor need to be greased?
- Can my Implantmed/Elcomed motor be processed via thermal washer disinfector?
- Can my Implantmed/Elcomed motor be processed in a vacuum sterilizer with the protection cap in place.
Bruksanvisning
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Ladda ner
Videoinstruktioner
-
Implantmed Plus SI-1023, SI-1015, SI-1010
Modeller: SI-1023 SI-1015 SI-1010 Nätspänning: 230 V 120 V 100 V Tillåten spänningsvariation: 220 – 240 V 110 – 130 V 90 – 110 V Märkström: 0.3 – 0.8 A 0.3 – 1.6 A 0.3 – 1.4 A Frekvens: 50 / 60 Hz Nätsäkring (2 styck): 250 V – T1,6AH Maximal strömförbrukning: 170 VA Max. mekanisk urladdningsspänning: 80 W Max. vridmoment i motorn: 6.2 Ncm Varvtalsområde i motorn i märkspänningsområdet: 200 – 40,000 min -1 Genomströmningsmängd av kylmedel vid 100 %: min. 90 ml/min Höjd / bredd / djup: 100 x 262 x 291 mm Fotpedal: S-N2 / S-NW Hand- och vinkelstycken med mini LED+: S-11 L / WS-56 L, WS-75 L, WS-91 L, WS-92 L Garanti: 24 månader
Implantmed Classic SI-915, SI-923
Modeller: SI-915 SI-923 Max. vridmoment på det roterande instrumentet (program 4): 70 Ncm Nätspänning: 110 – 130 V, 50 / 60 Hz 220 – 240 V, 50 / 60 Hz Max. mekanisk urladdningsspänning: 80 W Max. vridmoment i motorn: 5.5 Ncm Varvtalsområde i motorn i märkspänningsområdet: 300 – 40,000 min -1 Straight and contra-angle handpieces: WI-75 E/KM / S-9 L G / S-11 L G / WS-56 L G / WS-75 L G / WS-91 L G / WS-92 L G Längd på motorkabel: 1.8 m Genomströmningsmängd av kylmedel vid 100 %: min. 90 ml/min Fotpedal: S-N2 Höjd / bredd / djup: 100 x 235 x 240 mm
